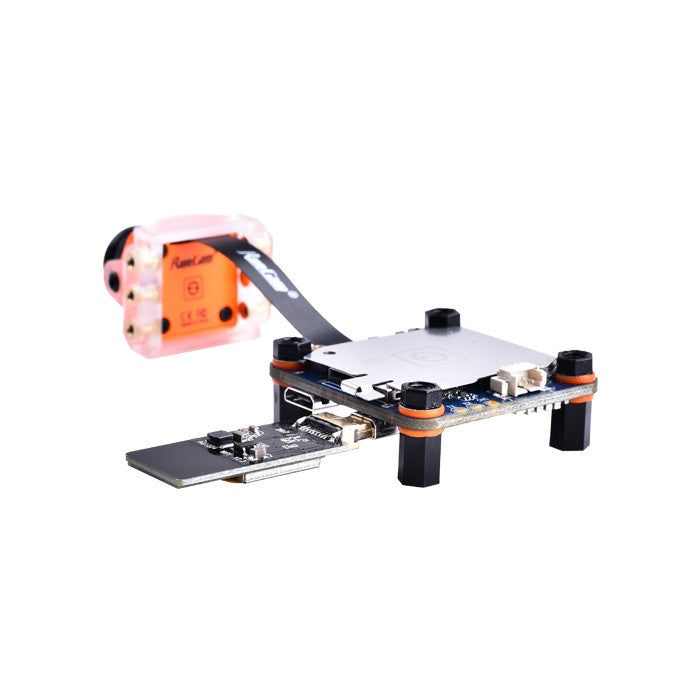

RUNCAM SPLIT 2S
1080P@60fps HD recording & WDR 16:9 / 4:3 FPV camera
STANDARD SIZE FOR A
BETTER EXPERIENCE
BETTER EXPERIENCE
* With the 4 rubbers in the package, the holes' size will be M3.
REMOVABLE WIFI MODULE FOR APP
Live preview
Video playback
Camera parameters setting
Firmware Upgrade
PACKAGE
-
1x Camera -
1x SD Card Protector -
1x ABS Bracket -
1x 3pin FPV Silicone
Cable(male) -
1x 3Pin Silicone
Cable (female) -
1x Set of Screws -
1x Manual
Dimensions
Parameters
| Field of View(FOV) | FPV FOV 4:3@140°, 16:9@170°/HD Recording 170° |
| Lens Thread Size | M12*0.5 |
| Video Resolution | 1080@60fps/1080@50fps /1080@30fps/720@60fps |
| Video File Format | MOV |
| Image Resolution | 2 Megapixels |
| TV Mode | NTSC (720*480)/PAL (720*576) Switchable |
| Interface | Micro USB / UART |
| Max Micro SD Card Supported | 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) |
| WiFi Module | Support (Removable) |
| Dimensions | PCB 38*38mm/Lens Module 19*19mm |
| Power Input | DC 5-15V / DC 5V(USB) |
| Working Current | 650mA @5V / 270mA @12V |
| Net Weight | 19g(without WiFi Module) / 21.8g(with WiFi Module) |
