RUSHFPV Blade Mini Digital F722 Flight Controller (20*20)

This is the RushFPV Rush Blade mini HD Digital 20*20mm flight controller, for your next DJI HD FPV quadcopter build.

RushFPV designed this board with ease of use in mind. The F722 flight controller is clearly labelled throughout and features ports which are used to connect your various external devices.

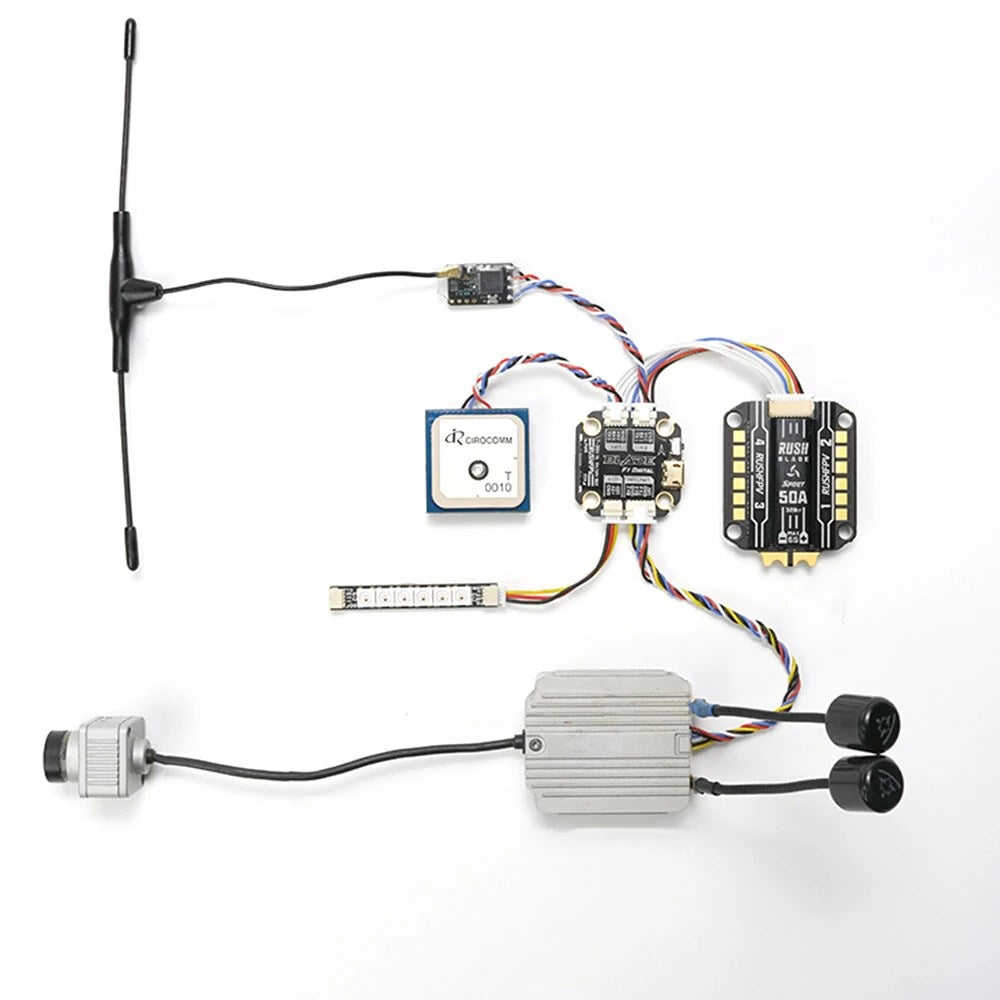

The digital version of this board allows you the builder, to easily wire in your Caddx HD Vista unit as well as the bigger DJI HD digital air unit and camera.

Product Highlights

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
• Built-in analogue video OSD,
• 16M black box, SUART ports, 6PWM output ports, 2 ADC ports, 1 I2C port,1 camera control port.
• Integrated 36V input power supply, up to 6S lipo battery power supply, 5V 5A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Optimized for stack installation, the single-sided component placement method makes the thickness thin, and the bottom is covered with complete copper to resist ESC interference.
• The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Product Information

• Brand: RUSH BLADE
• Item Name: F722 HD Mini Flight Controller
• MCU: STM32 F722 RET6
• Port: 6x PWM  6x UART  1xI2C
• Gyro: MPU6000
• ADC: BATTERY VOLTAG / CURRENT
• BEC Input: 7-36V 3-6S LIPO
• BEC Output: 5V 2A
• LED: SUPPORTS WS2812 LED STRIP
• Navi: SUPPORTS COMPASS/GPS
• OSD: CVBS PAL/NTSC
• Mounting holes: 20* 20mm
• BLACKBOX: 16MB SPI FLASH
• Size: 29mm*29mm*6.8mm
• Target: RUSH_ BLADE F7
• Voltage: 3-6S
• Weight: 5g(without cable)

In the box

• RUSHFPV Blade Mini Digital F722 Flight Controller (20*20)

More Information

• STPhobby Website

RushFPV F7 Blade Analogue Mini – Review Video

RUSHFPV RUSH Blade Digital Flight Controller Pinout Diagram.
