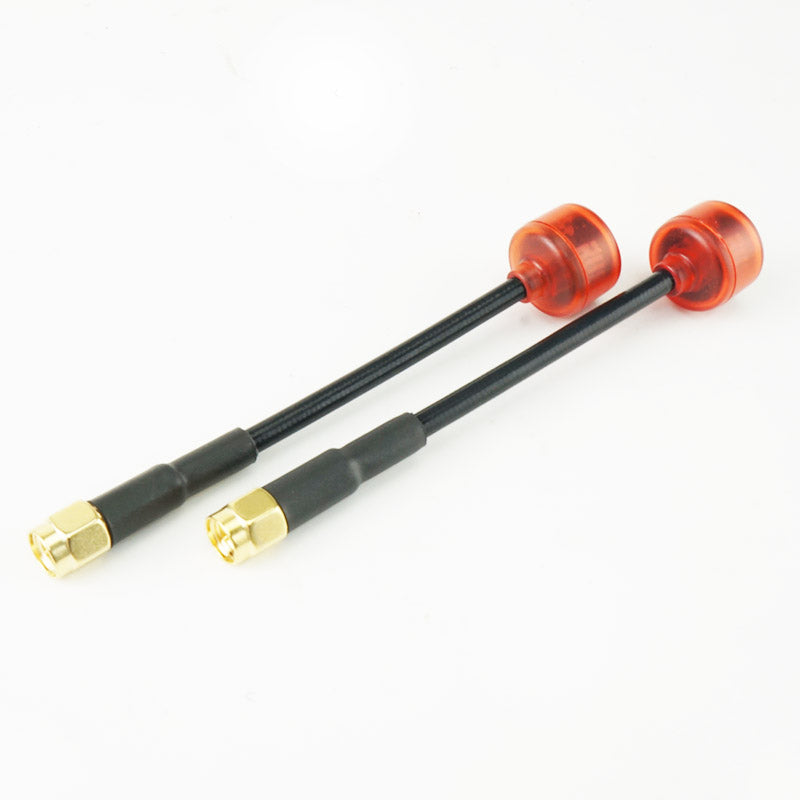

RUSHFPV Cherry Ultra Extended 5.8GHz SMA Antenna 2 Pack - RED - (RHCP or LHCP)

Features Optimized for FPV racing drones Maximum signal coverage. 5.6-6GHz bandwidth covers all of raceband and all...
Vendor: RUSHFPV
Availability: In Stock
$39.29
$39.29
polarization: LHCP
Subtotal: $39.29
SMA_RHCP_Extended_Edition_1

RUSHFPV Cherry Ultra Extended 5.8GHz SMA Antenna 2 Pack - RED - (RHCP or LHCP)

$39.29

RUSHFPV Cherry Ultra Extended 5.8GHz SMA Antenna 2 Pack - RED - (RHCP or LHCP)

$39.29
polarization: LHCP

Features

  • Optimized for FPV racing drones
  • Maximum signal coverage. 5.6-6GHz bandwidth covers all of raceband and all channels have nearly uniform transmission strength.
  • Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
  • Small and sturdy. Optimized design obtained through massive impact tests. Flexible tube can withstand angle bends and crash impacts to avoid cable damage.
  • Thin cable. Teflon skin, double shielded RG-137 coaxial cable with silver plated core. This wire is soft flexible and low signal loss.
  • Between 5650 and 5950MHz, VSWR is below 1.2 meaning transmission efficiency is up to 98% This can also help reduce VTX heat.
  • Quick installation. Antenna clips are designed to the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
  • Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.

Specifications

  • Gain: 1.2dBi
  • S11 SWR: 1.4 max - 1.1 min
  • Band Width: 5600-6000-MHz
  • Axial Ratio: Around 1.0
  • Polarization: LHCP or RHCP
  • Connector: SMA
  • Length (end of SMA to base of Antenna): 14CM

Includes

  • 2 x Rush FPV Cherry Ultra Extended 5.8GHz SMA Antenna
