Product Description:
(1) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
(2) High-speed data transmission, supports F1000Hz and F500Hz ultra-high refresh rates, meeting the low-latency requirements of racing players.
(3) Onboard temperature-compensated crystal oscillator (TCXO), rejects the impact of ambient temperature on flight, maintains stable operation in high or cold environments, making flight safer.
(4) Integrated with a high-power PA+LNA low-noise amplifier and 100mW (20dBm) telemetry return, returning the flight data is more stable.
(5) Supports SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Parameters of Product:
|
Model |
SEQURE ELRS 2.4GHz Single RX |
|
Factory Firmware |
SEQURE 2.4GHz Single RX_3.4.0 |
|
MCU |
ESP8285 |
|
RF Chip |
SX1281 |
|
Crystal Oscillator Type |
Temperature Compensated Crystal Oscillator（TCXO） |
|
PA Power (Telemetry Power) |
100mW（20dBm） |
|
LNA |
YES |
|
Indicator Light |
LED |
|
Frequency Band |
2.4GHz ISM |
|
Protocol |
CRSF |
|
RF Mode |
Single Antenna |
|
Antenna Interface |
Ipex1 |
|
Receiver Interface |
SH1.0-4P Connector, 2.54-4P Pad |
|
Working voltage |
5V |
|

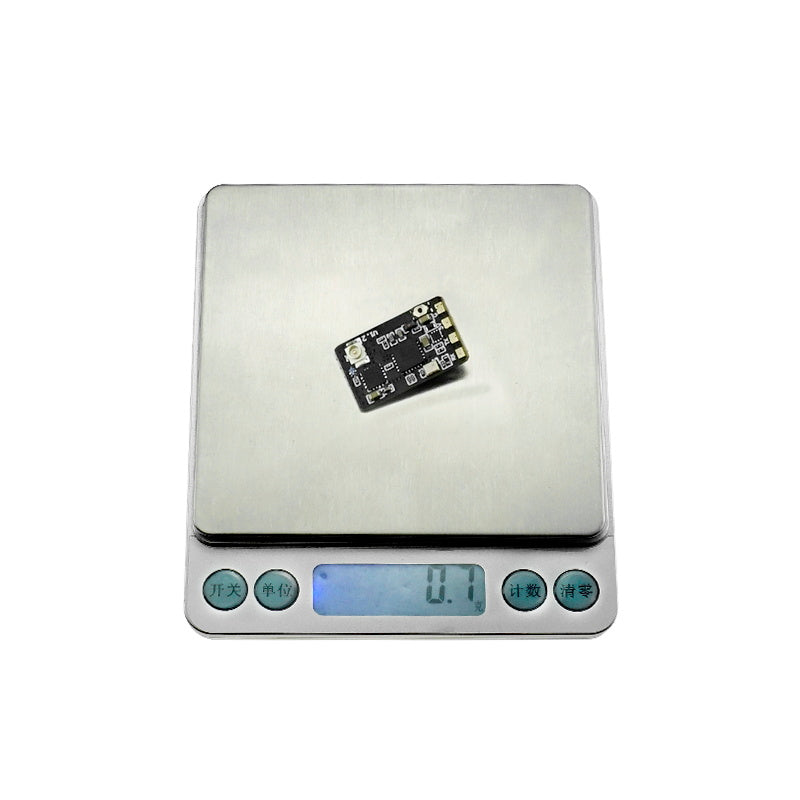

Weight |
0.7g |
|
Size |
18*10.8*5mm |
Package included:
SEQURE ELRS 2.4GHz Single RX×1
2.4G Antenna 80mm×1
30AWG 100mm Single-end SH1.0-4P Cable×1
12*30mm Heat Shrink Tube×2
Overall Dimension:
(1) Product Size: 18*10.8*5mm
Net Weight Of Product: 0.7g
(2) Package Size: 150*100*15mm
Packing Weight: 8g
(3) Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：52.5g
