SHELLY Button 1.

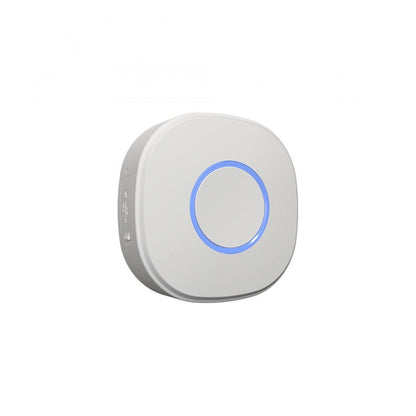

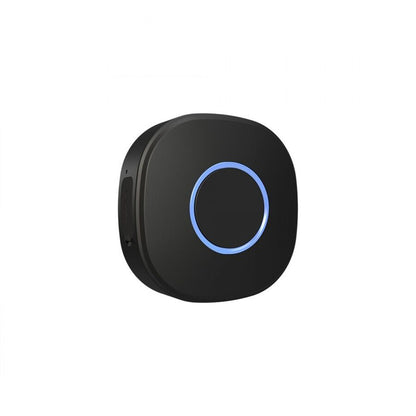

Available in black or white.
Wireless
No HUB required – Connect Shelly Button 1 directly to your Wi-Fi.
Built-in rechargeable battery
Each charge will allow for more than 3000 actions.
USB powered option
Connected via USB for constant power supply and Wi-Fi connection.
Fast response
Response time less than 2 sec on battery and 100 ms on USB power.
Highly compatible
Cloud connected – can also be connected to MQTT, CoAP, REST API.
Color hints
A different colour response indication for differnet triggers.
1 Button.
4 possible actions triggered by either 1, 2, 3 or long presses.
Battery or USB.
Button 1 can be powered by its internal rechargeable battery – providing over 3,000 uses per charge. Or you can power via USB.
Lighting control.
With Shelly Button 1, you can control up to 4 different lights, scenes or Shelly relays. Just set the action you want to be performed for each different push sequence.
4 dimming levels.
Shelly Button 1 allows for setting a different dimming level for every push sequence to tune the lights to your mood and needs.
From the car.
Control your garage door connected to Shelly 1 or Shelly 2.5.
From work.
As long as Shelly Button 1 is connected to any Wi-Fi network, distance is not an issue. You can control your other Shelly devices and relays no matter where you are located.
App Control.
With the best cloud service in the World, user-friendly interface, scenes, bulk control and much more… the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly app.
Flexible control.
Shelly Wi-Fi devices can work without a hub… but they are also compatible with…
Full control.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
Power |
|
| Battery life: | 3,000 actions per charge |
| Rechargeable: | Yes |
| Power supply AC: | No |
| Power supply DC: | Micro USB – 5V |
Special functions |
|
| Scene control: | Yes - Activate or deactivate synchronized actions of several Shelly devices |
| Device control: | Yes - Activate or deactivate individual Shelly devices |
| Dimming control: | Yes - 4 levels |
Features |
|
| Local and remote control: | Yes |
| Operational temperature: | 0°C to + 40°C |
Connectivity |
|
| Wi-Fi protocol: | 802.11 b/g/n |
| Radio frequency: | 2400 – 2500 MHz |
| Radio signal power: | 1mW |
| Wireless range: | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Dimensions |
|
| Size: | 45mm x 45mm x 16mm |
