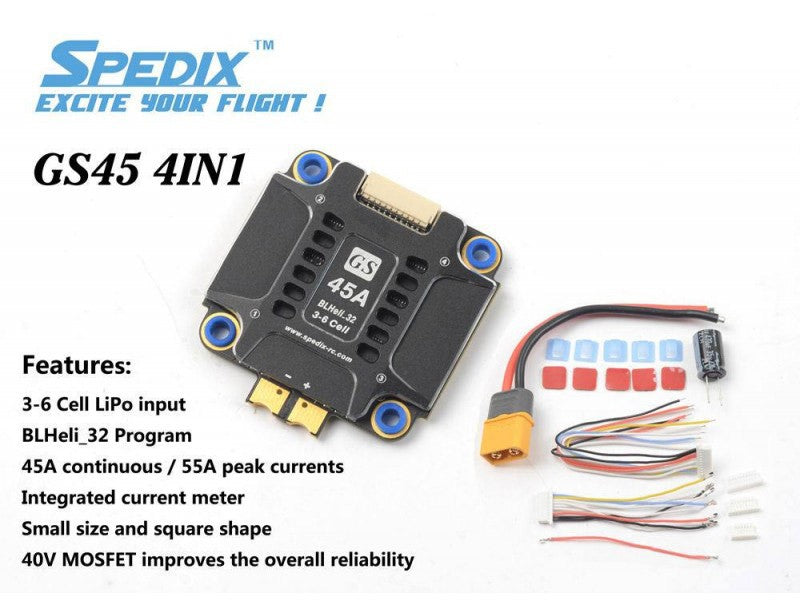

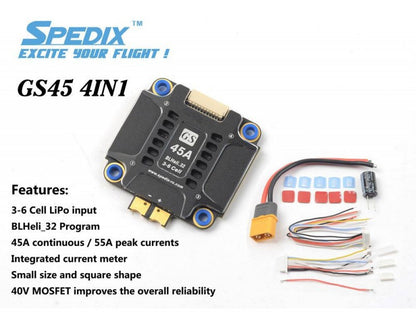

Spedix GS45 4-in-1 ESC

Spedix GS45 4-in-1 45A 3-6S Blheli_32 FPV Racing Brushless ESC for RC Drone 30.5x30.5mm.

These are from the second batch - Where the wire order printing has been fixed - don't get caught out - get the good version

Features:

• High reliability.

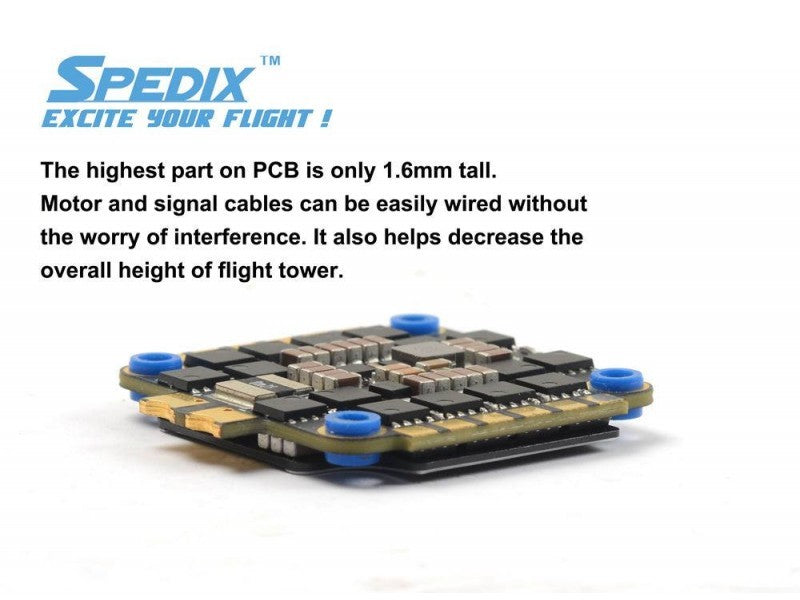

• This design allows low profile stack and prevent interferences between wires, ESC, and flight controller.
• The potential interferences between standoffs and electronic parts were also taken into consideration in the design. Fragile parts are now away from the mounting holes.
• The silicone rings provided will prevent the standoffs to short the PCB and electronics parts during a crash.
• The small size and square shape of the ESC board is compatible with most frames available in the market.

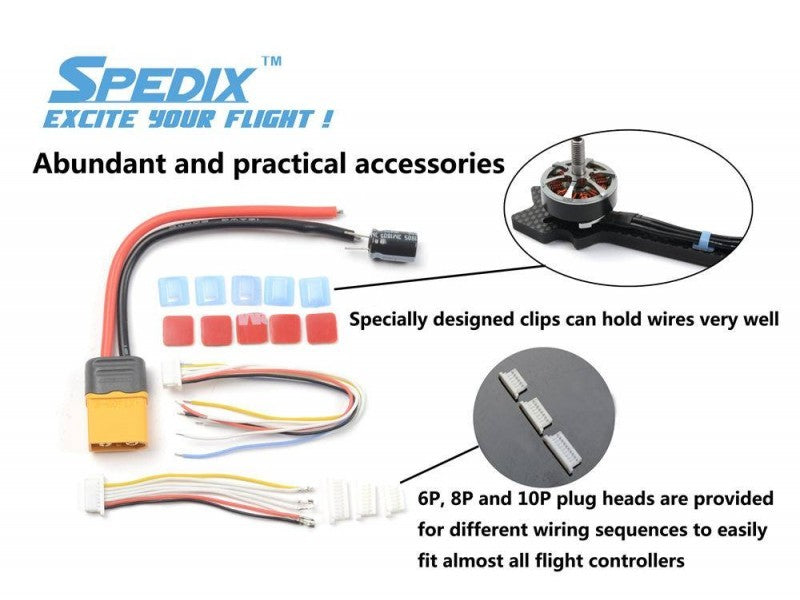

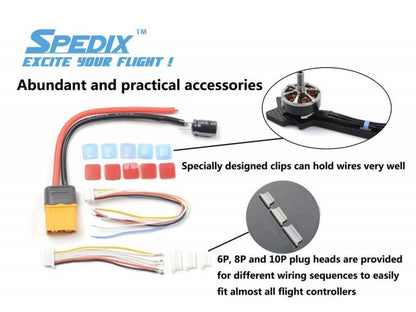

• The product comes with 3 different pins layout in the package to accommodate the different wiring layouts from the Flight Controller.

Specification:

• Input: 3-6 Cell LiPo
• Continuous Current: 45A
• Burst Current: 55A≤10S
• BEC: 10V@2A
• Current Detection: Yes
• Firmware: BLHeli_32
• Dimensions: 40.5x42x6.5mm
• Mounting hole: 30.5x30.5mm (3mm)
• Weight: 17g
