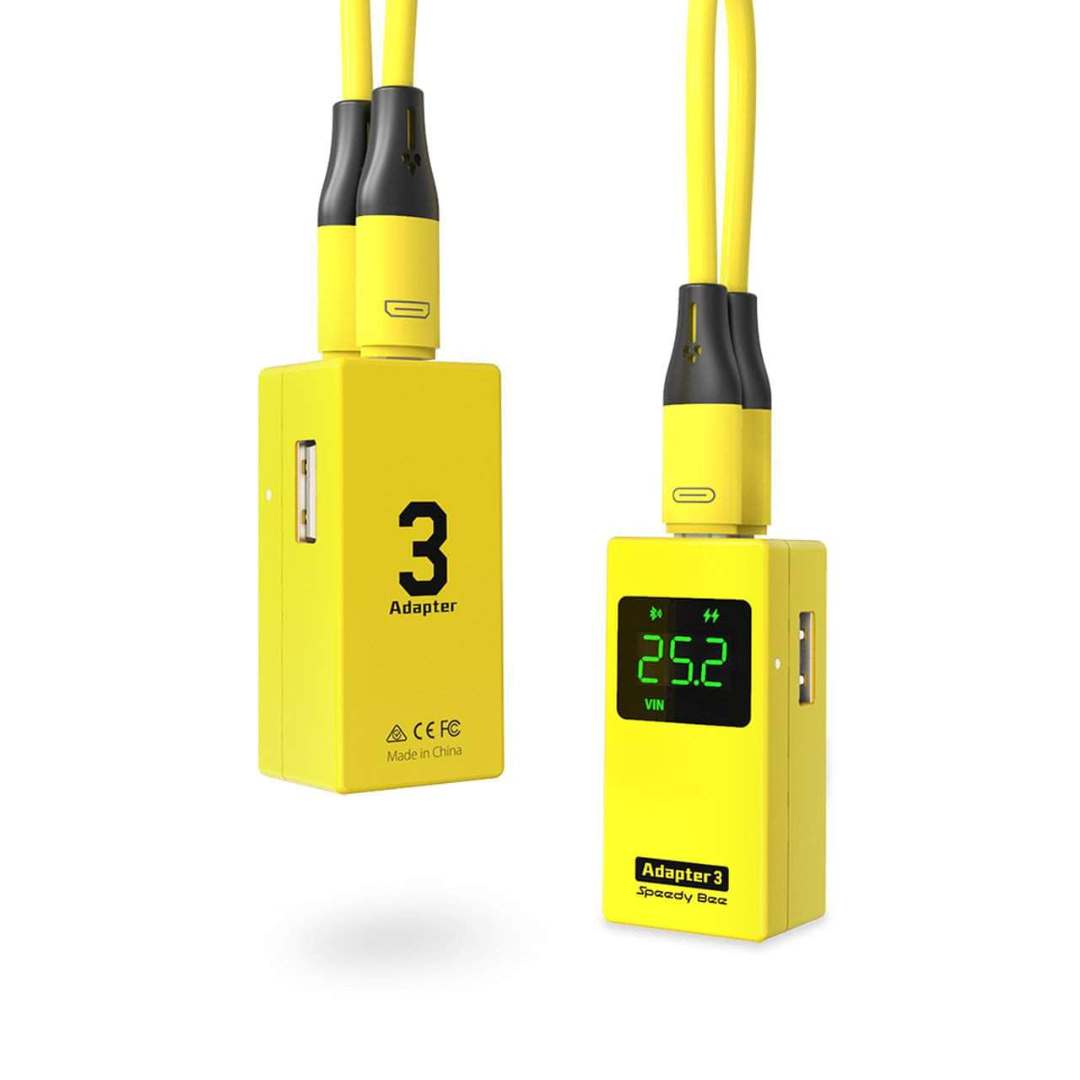

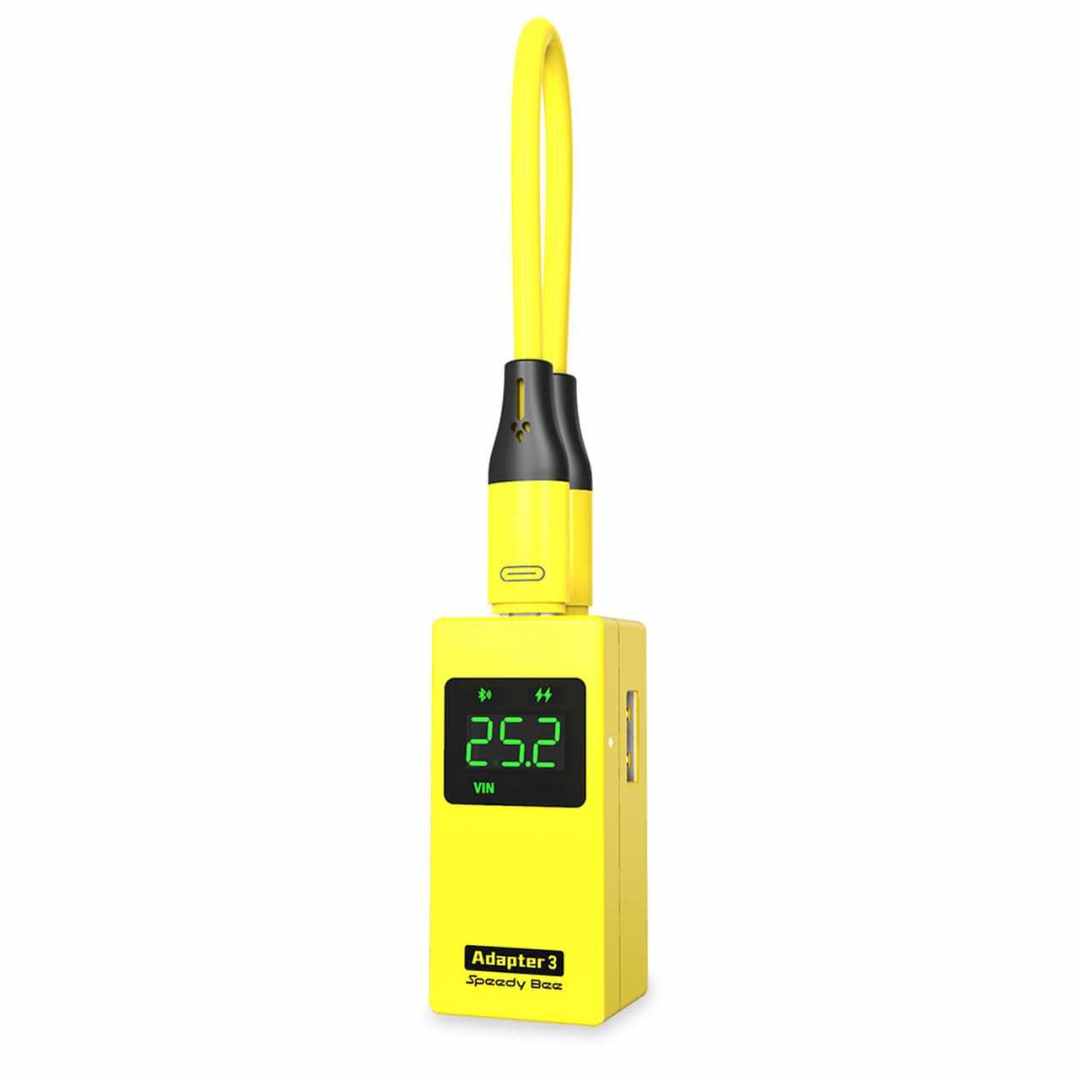

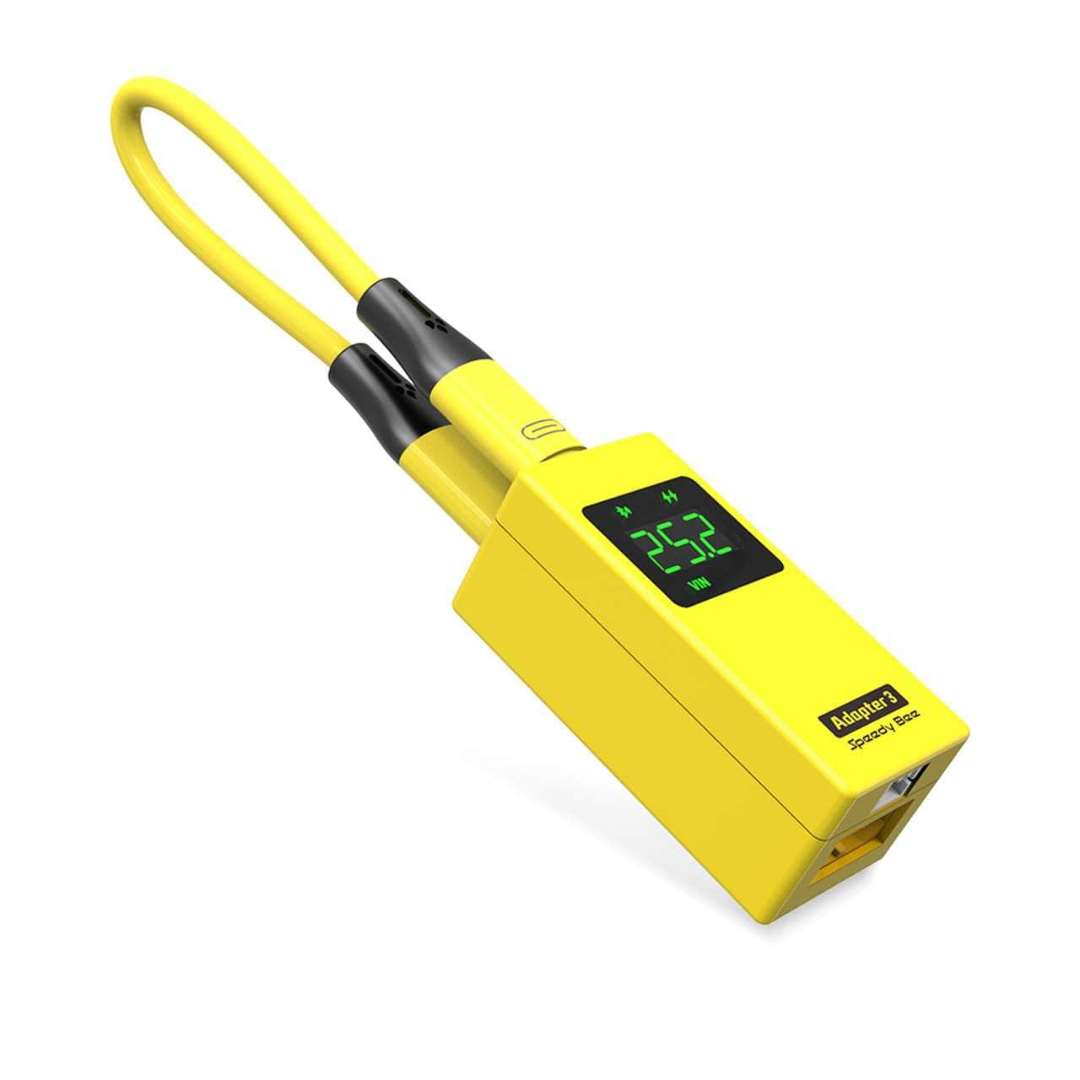

SpeedyBee Adapter 3 - Multi-Function Mobile FPV Tool

This is your mobile FPV swiss army knife! You can flash and configure your FC & BLHeli_S ESCs, download and analyze your blackbox logs, check your 1-6S LiPo voltages, and fast charge your mobile device from a LiPo! Featuring WiFi & Bluetooth radios, XT60 & PH2.0 power inputs and Micro USB, USB-C & USB-A connectivity, there's not much this little device can't do!

Download the App for Android and iOS

Check the rest of our  SpeedyBee products!

Features

• Wireless Firmware Flasher & Configurator
• 30W Fast USB Charger
• Wireless Blackbox Analyser
• Wireless ESC Flasher
• 1-6S LiPo Checker
• iOS & Android Compatible
• USB-C & Micro USB

Specifications

• Input Voltage: 1-6S(3.8V+ for 1S)
• Power Input Connector: XT60-Male, PH2.0 male
• Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
• Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android
• Maximum Output Current for flight controllers: 700mA @5V
• Fast Charging Output interface: USB A Port
• Minimum Input Voltage for Charging output: 7.4V(2S LiPo)
• Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
• Max Fast Charging Current: 3.5A
• Max Fast Charging Power: 30W
• Case Material: ABS + PC
• Liquid Silicone Cable Length: 12.4cm
• Dimension(Main Body): 24.8x21.8x53.6mm
• Net Weight: 35g

Manual Download

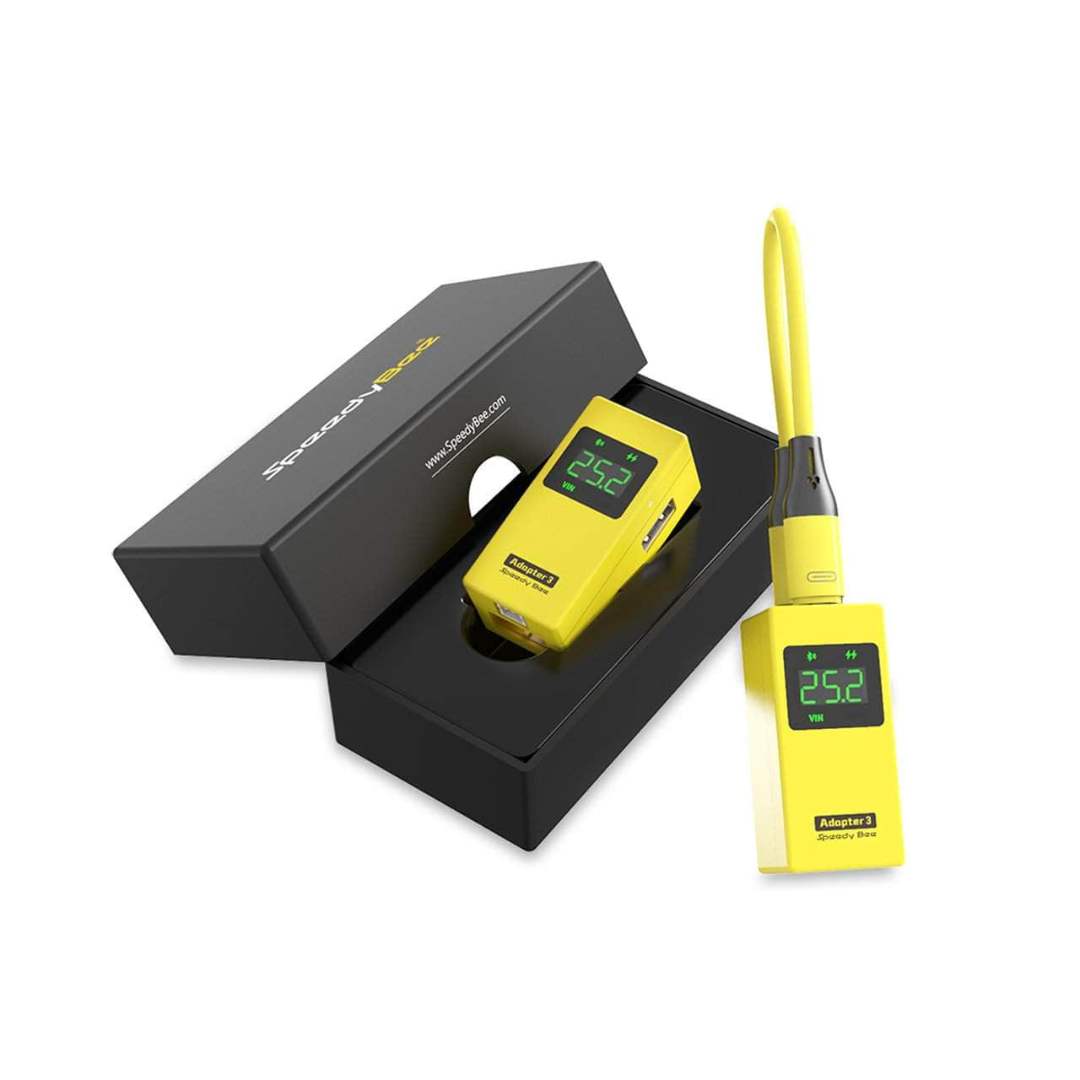

Includes

• 1x Speedy Bee Adapter 3
