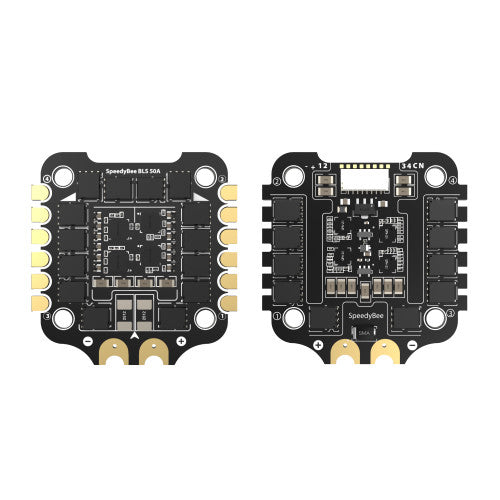

SpeedyBee F405 V3 BLS 50A replacement ESC
Â
Â
Â
Â
Â
Â
$
Â
Powerful Real 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
Â
1000uF Low ESR capacitor +
TVS protective diode =
Extra protection
TVS protective diode =
Extra protection
The ESC is built with TVS protective diode to absorb the voltage
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1000uF low ESR
capacitor, ensuring clean data from the gyro to the FC.
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1000uF low ESR
capacitor, ensuring clean data from the gyro to the FC.
Â
Dimensions
Wiring Diagram
Â
Specifications
| Product Name | SpeedyBee BLS 50A 30x30 4-in-1 ESC |
| Firmware | BLHeli_S JH50 |
| Wireless Configuration | Full Configuration Supported in the SpeedyBee app |
| PC Configurator Download Link | https://esc-configurator.com/ |
| Continuous Current | 50A * 4 |
| Burst Current | 55A(5seconds) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=386 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) * 6.1mm(H) |
| Weight | 13.8g |
