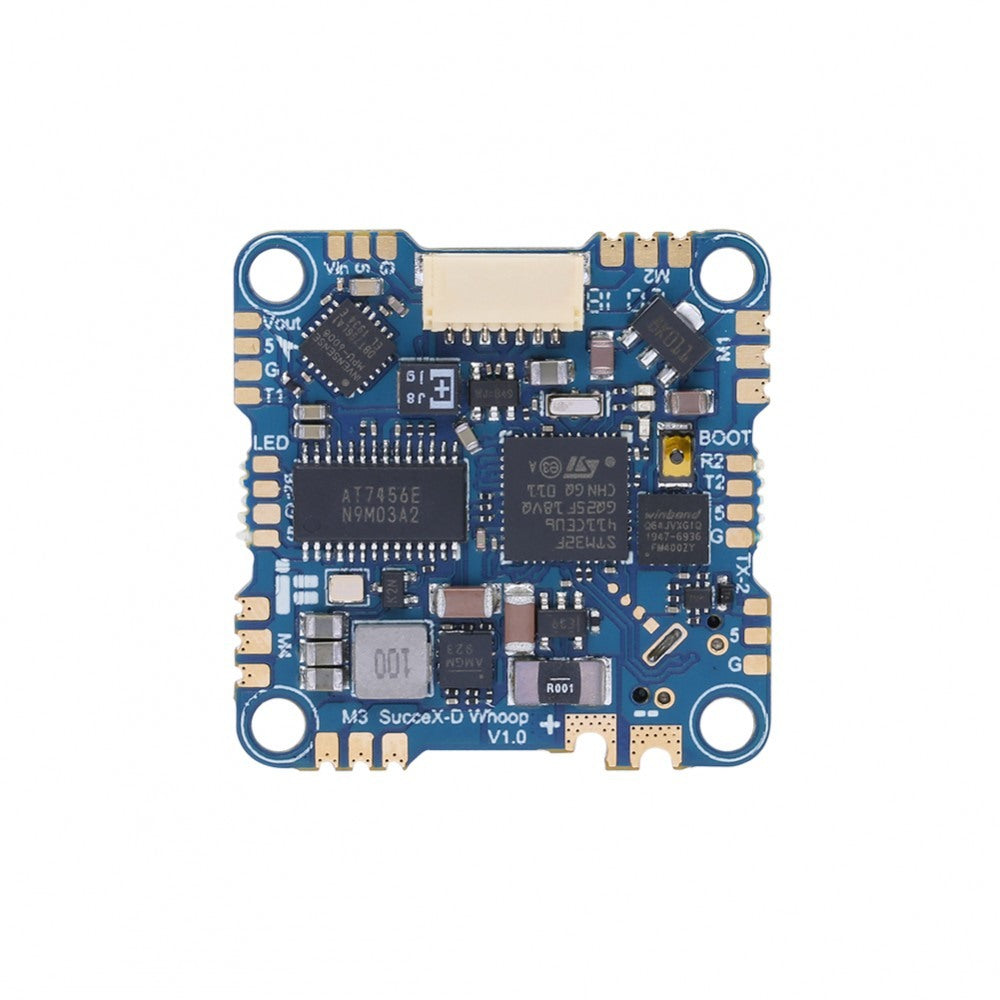

SucceX-D 20A Whoop F4 AIO Board (MPU6000)

Top Features:

• DJI Plug-and-Play - No need to solder tiny wires!

FC // SucceX-D F4 AIO

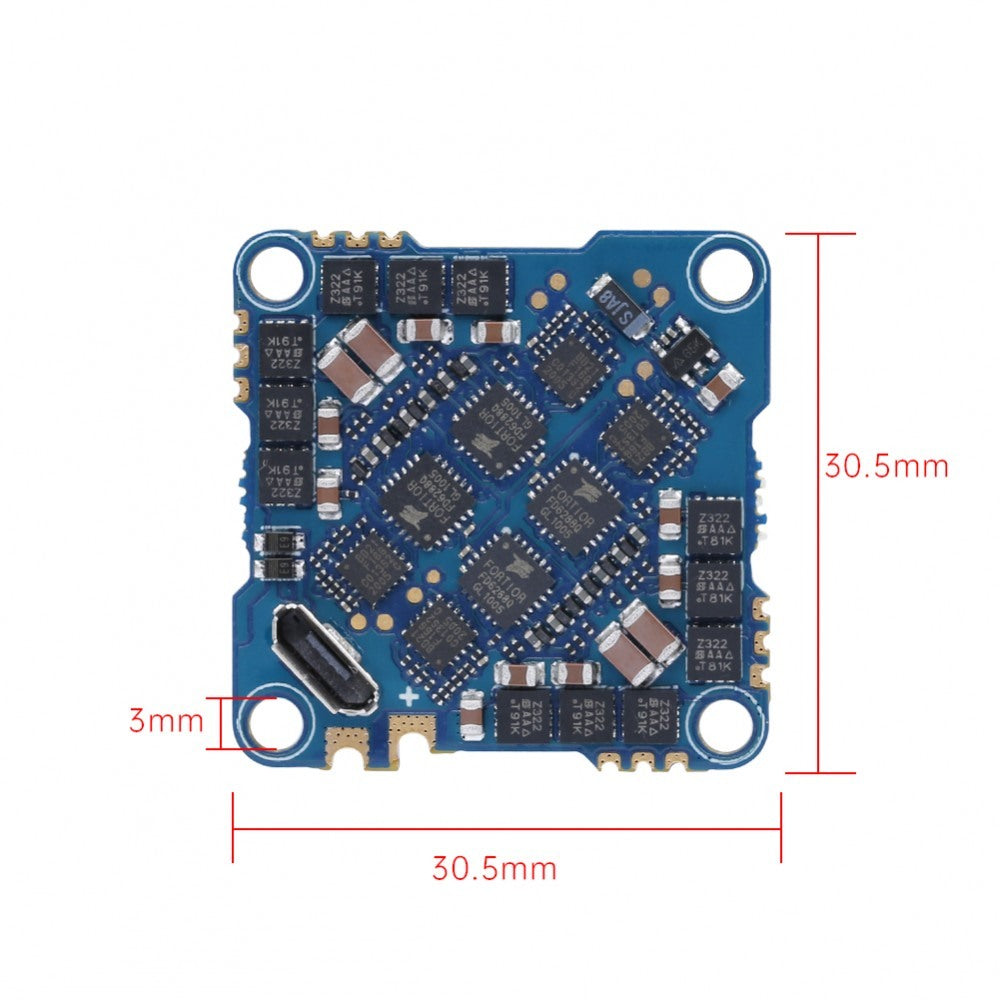

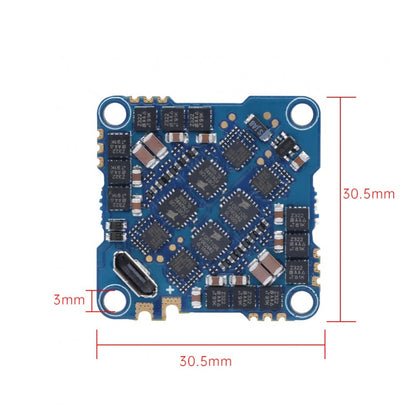

Size：30.5*30.5mm

Mounting pattern：25.5*25.5mm/φ3mm

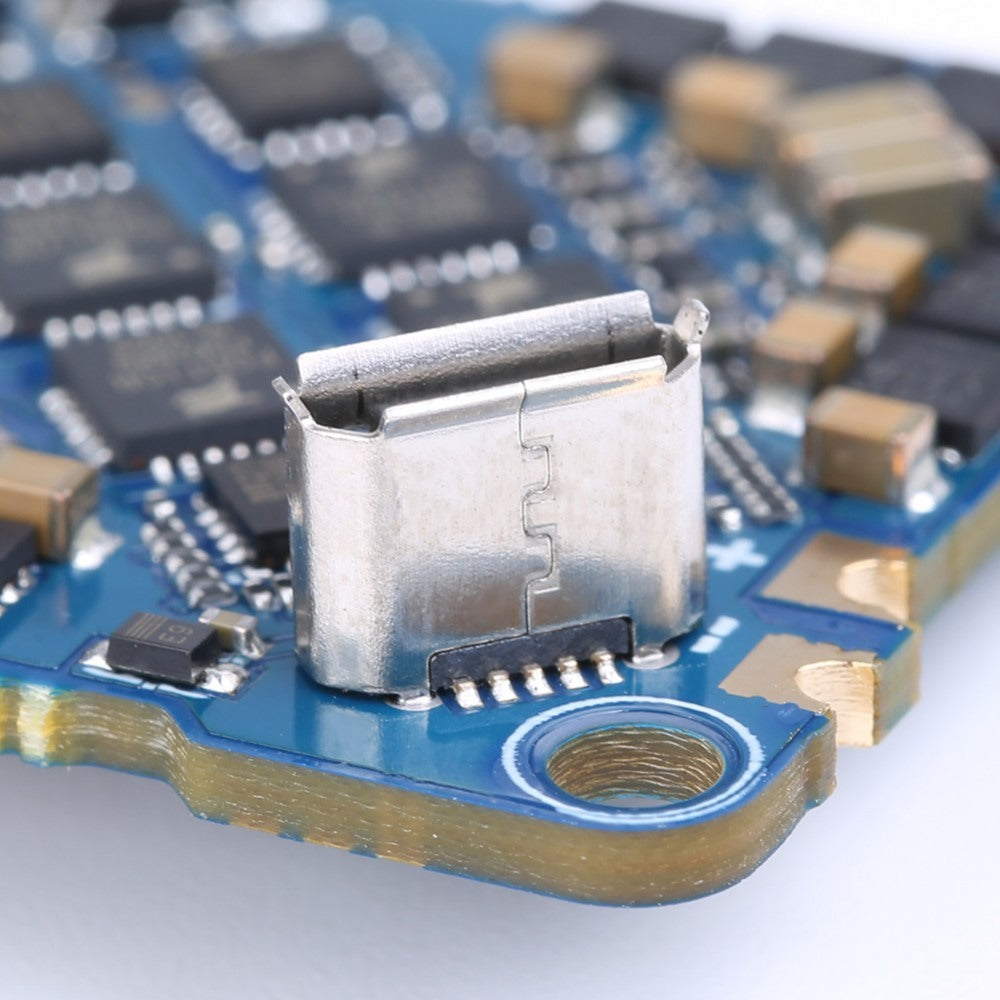

Connector：Micro-USB

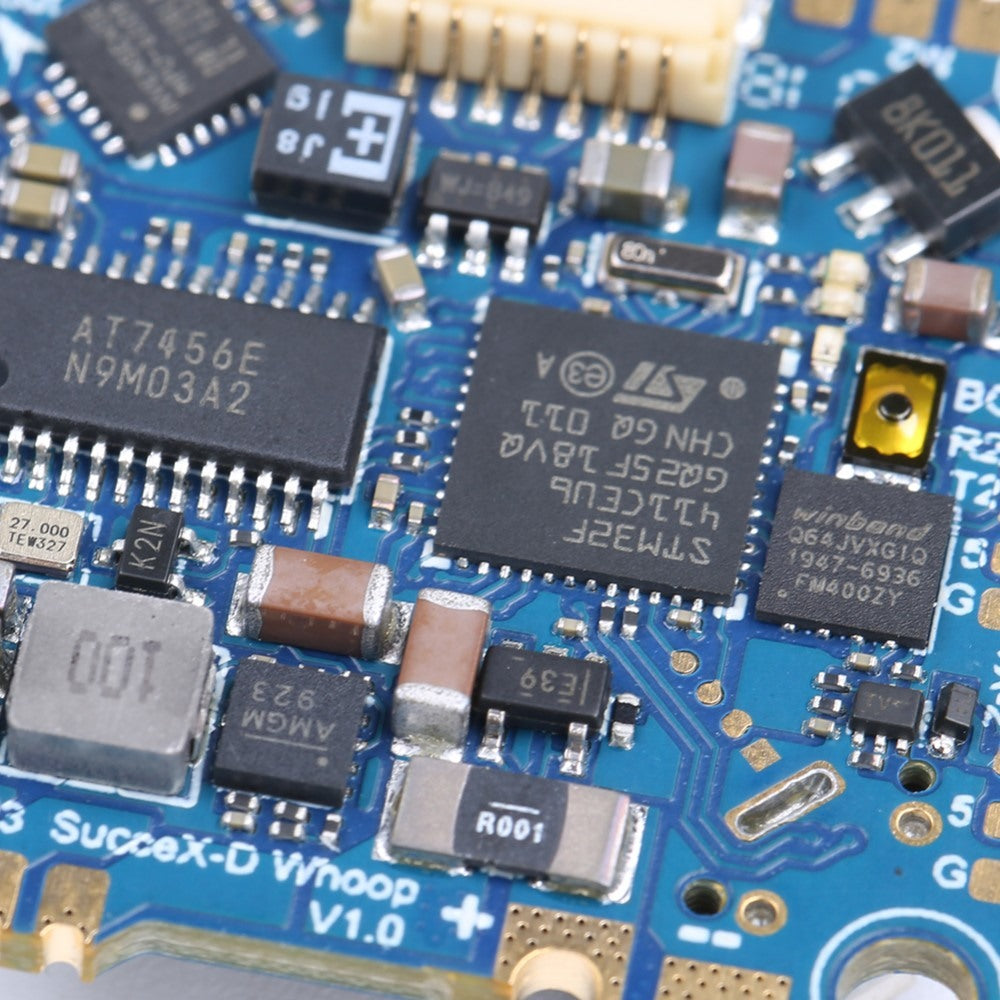

MCU：STM32F411

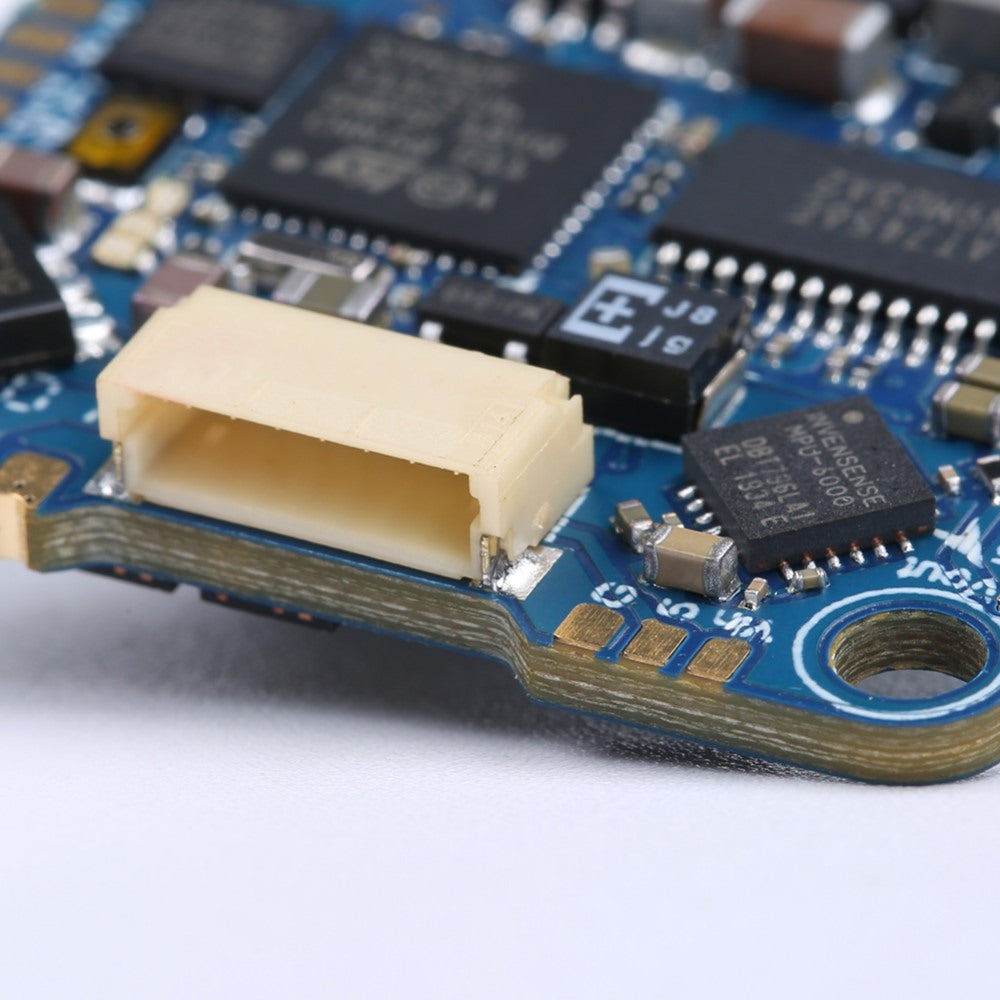

Gyro：MPU6000

Blackbox：8MB

BEC  output: 5V 2A

INA pad：nR2

Barometer：no

Constant current：20A，25A（Burst）

Input：2-5S（8-25V）

Current sensor：yes

BLHeli：BLHeli-S

ESC Telemetry：no

Firmware Target：IFLIGHT_F411_PRO

ESC Firmware：G-H-30 BLS

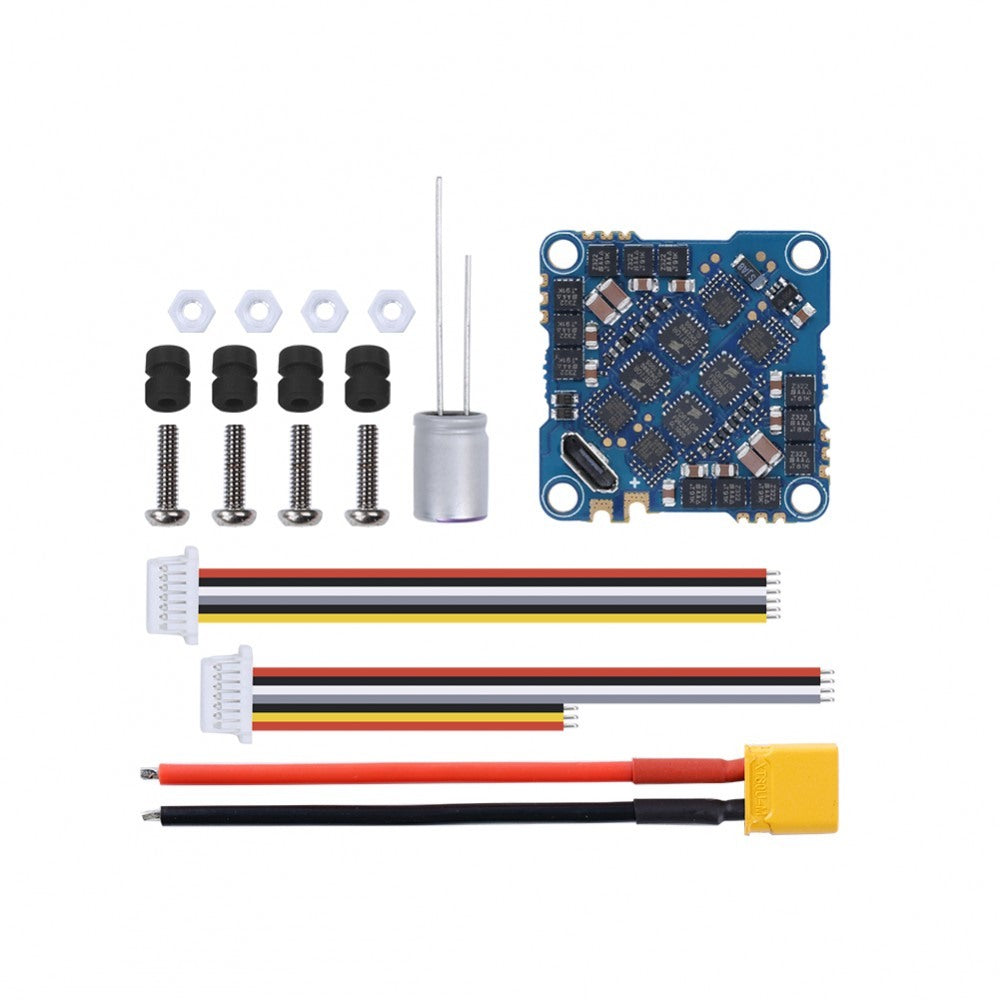

Package Includes:

- SucceX-D Whoop F4 AIO Board× 1

- Capacitor 470uF/16V × 1

- XT30 18awg cable

- Wire harness (plug&play) for DJI Air Unit × 1

- M2 silicon grommets × 4

- M2 damping balls x 4

- M2*8mm Screws x 4
