PRODUCT DESCRIPTION
TOP FEATURES:
- Power supply: 1S
- Super light only 5.4g
- MCU：STM32F411
- Gyro: MPU6000
- Support BLHeliSuite programmable
- 5A continuous current

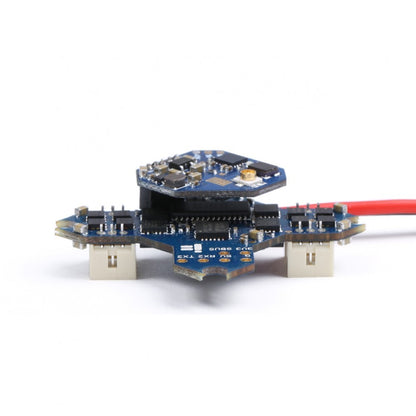

FC // SucceX-1S Whoop AIO Board
Size：29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
Connector：Micro-USB

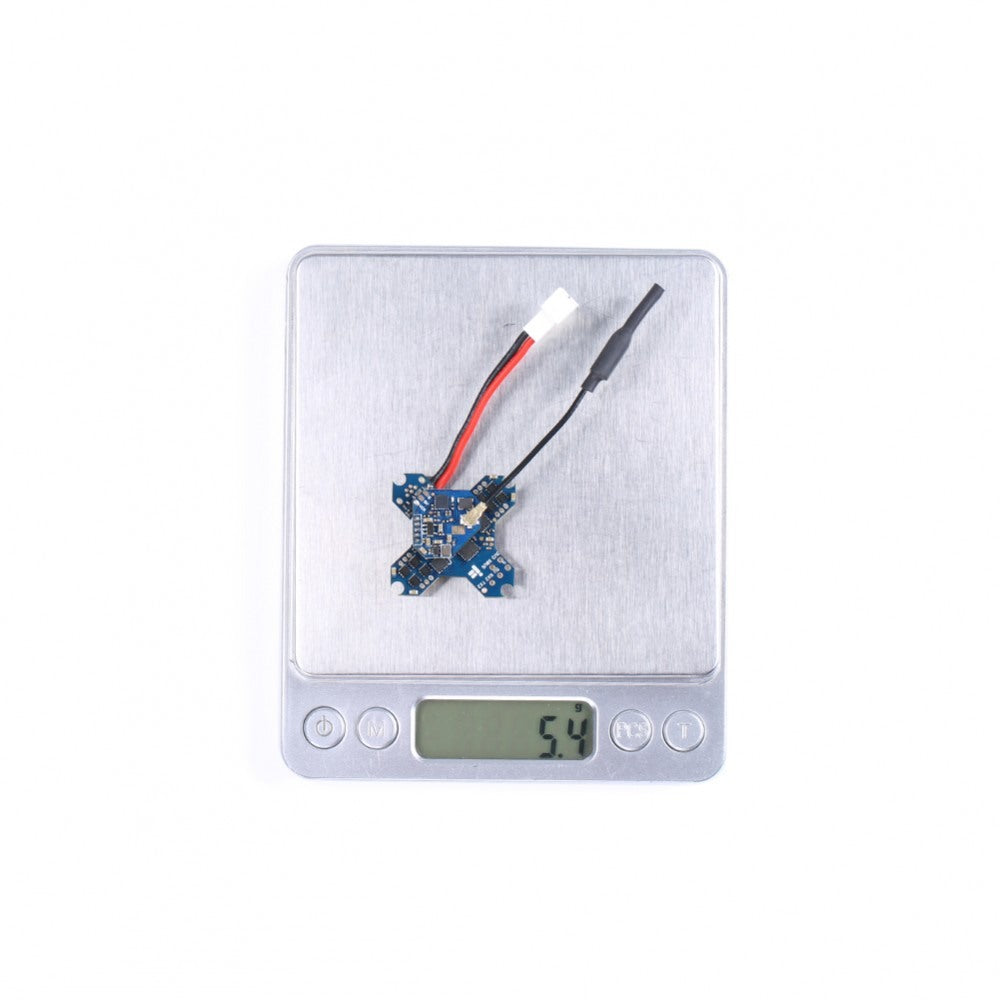

Weight: 5.4g (with power cable, vtx, and vtx antenna)
MCU：STM32F411
Gyro：MPU6000
Blackbox：no
BEC output：5V 1.2A
INA pad：n uart2
Barometer：no
FC Firmware：MatekF411RX
ESC Firmware：O-H-30 BLS 16.8
NOTE: F.PORT protocol RX input support, telemetry not supported.
ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input：1S
Signal Support: Dshot，Oneshot，Multishot
Current sensor：yes
BLHeli：BLHeli-S
ESC Telemetry：no
VTX：
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX
Package Includes:
1 x SucceX-1S 5A Whoop F4 AIO Board (MPU6000)
1x Whip antenna
