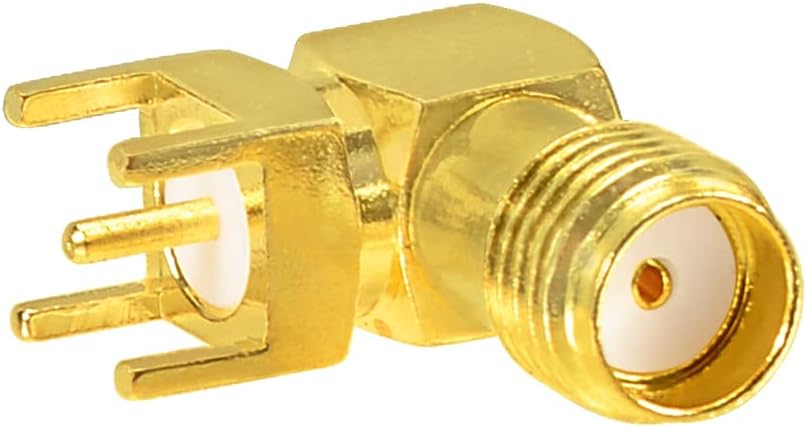

- Type: SMA Female Jack Edge PCB Mount Right Angle Connector
- Termination Type：PCB Mount End Launch | Attachment Method：Solder
- Impedance：50 ohm | Body Material：Brass | Body Plating：Gold | Dielectric Type：PTFE | SMA connectors are light weight, vibration resistant, and commercial grade quality
- Application: These sma connectors are easy to solder to a proto board, Nano VNA test boards, Si5351A board, PCB antennae, wireless modules, wireless devices, RF Applications etc. fit over the edge of the perf-board

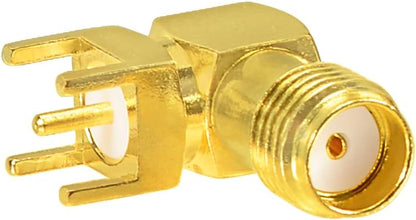

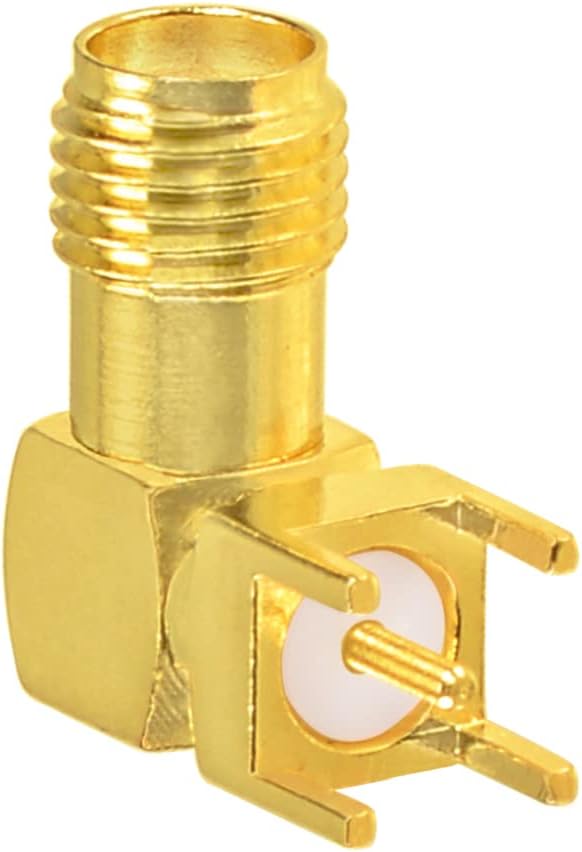

Superbat SMA Connectors SMA female right angle 90 degree SMA PCB mount connector RF adapter
Description:
Connector Type：SMA Jack , Female
Impedance: 50ohm
Frequency Range：3GHz | Body Material：Brass | Body Plating：Gold
Description:
Connector Type：SMA Jack , Female
Impedance: 50ohm
Frequency Range：3GHz | Body Material：Brass | Body Plating：Gold
- The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012.IEC 169-15 and CECC 22110.
- Offers excellent electrical performance and excellent mechanical durability from DC to 18 GHz
- Terminates all standard flexible coaxial cables, low loss (LMR) type cables and industry standard semi-rigid and conformable cables
Application: These sma connectors are easy to solder to a proto board, Nano VNA test boards, Si5351A board, PCB antennae, wireless modules, coaxial cable, wireless devices, FPV devices,RF Applications etc.
