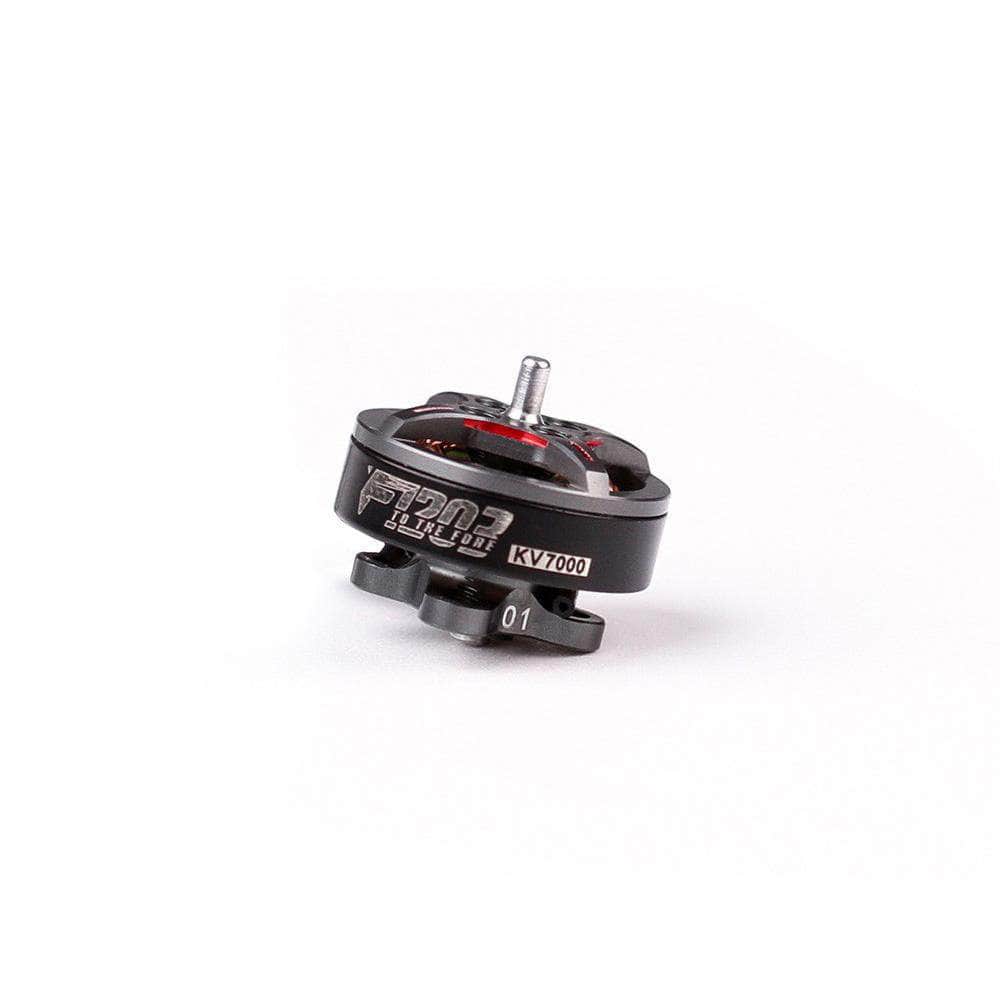

The F 1203 is a killer option for 2.5-3" 2-3S light racing builds. Equipped with 1.5mm T prop mounting and high efficiency arc magnets, this motor is designed for explosive power and high top speed!
Specifications
- Kv: 7000Kv
- Input Voltage: 2-3S
- Configuration: 9N12P
- Max Continuous Current: 10.85A
- Internal Resistance: 198mΩ
- Motor Dimensions: Φ15.5x14.05mm
- Stator Dimensions: Φ12x3mm
- Shaft Diameter: 1.5mm
- Mounting Pattern: Φ9mm, 4x M2
- Wire Dimensions: 28AWG, 75mm
- Weight: 5.25 (w/ wire)
Includes
- 1x T-Motor 1203 7000Kv Micro Motor
