Specifications
FC
- Input Voltage: 3-6S
- Gyro: BMI270
- Master chip: STM32F722RET6
- Flash: 16MB
- BEC: 5V 2A, 10V 2A
- Mounting hole: 30.5x30.5mm
- Weight: 8.4g
- Size: 37x37mm
- Firmware: TMOTOR F7(Betaflight)
ESC
- Continuous current: 4*55A
- BLHeli_32 32bit
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
- Weight: 17.3g (Including Heatsink)
- Support DSHOT150/300/600/1200

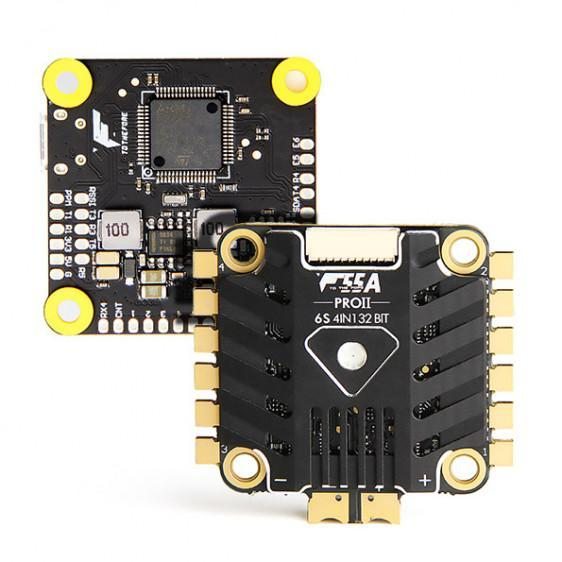

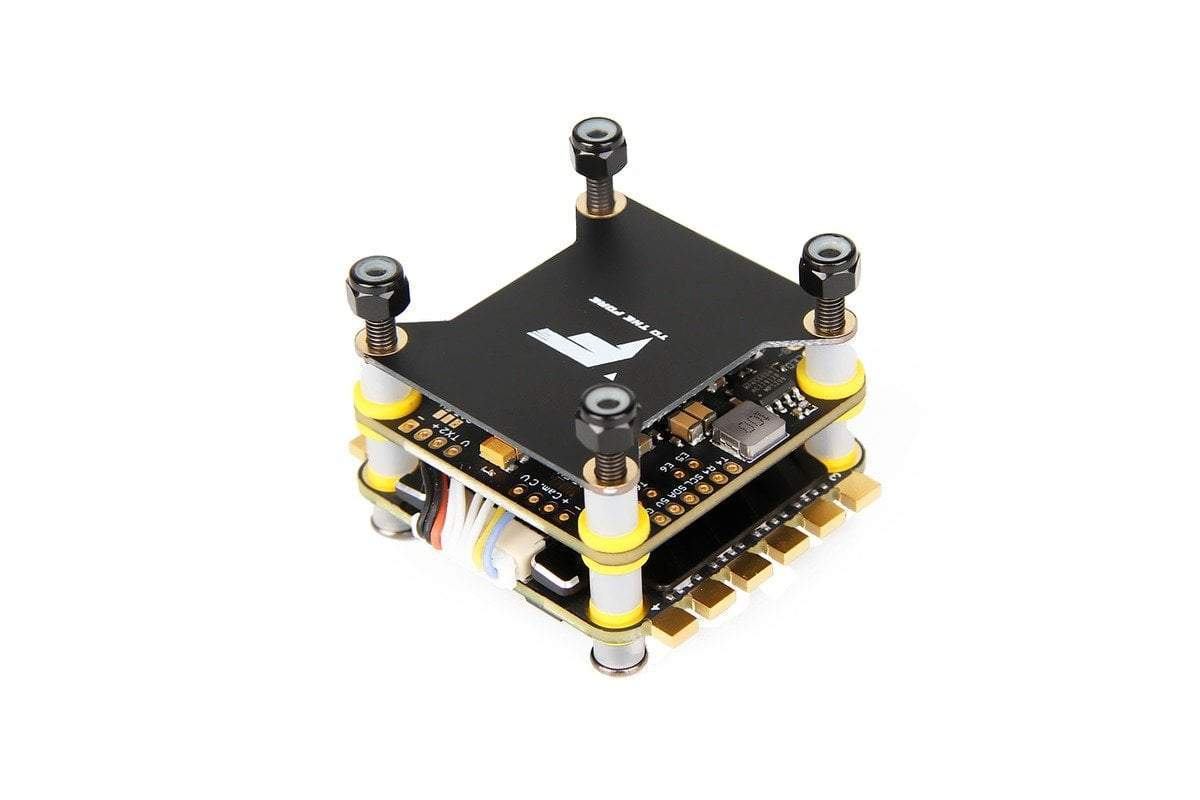

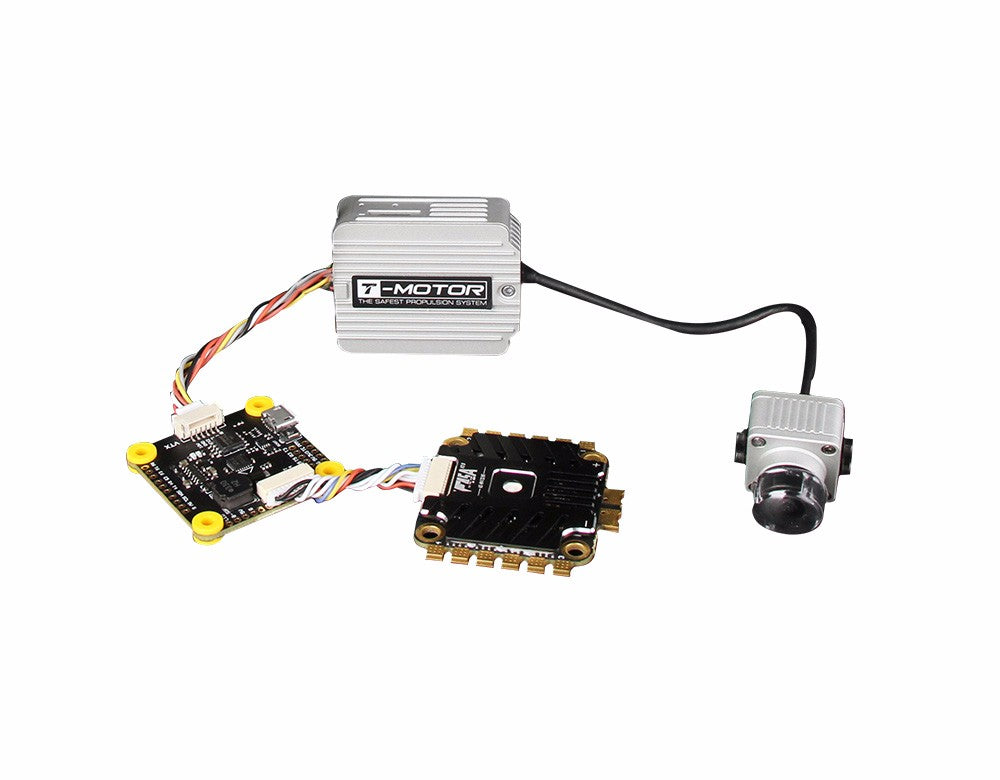

Includes

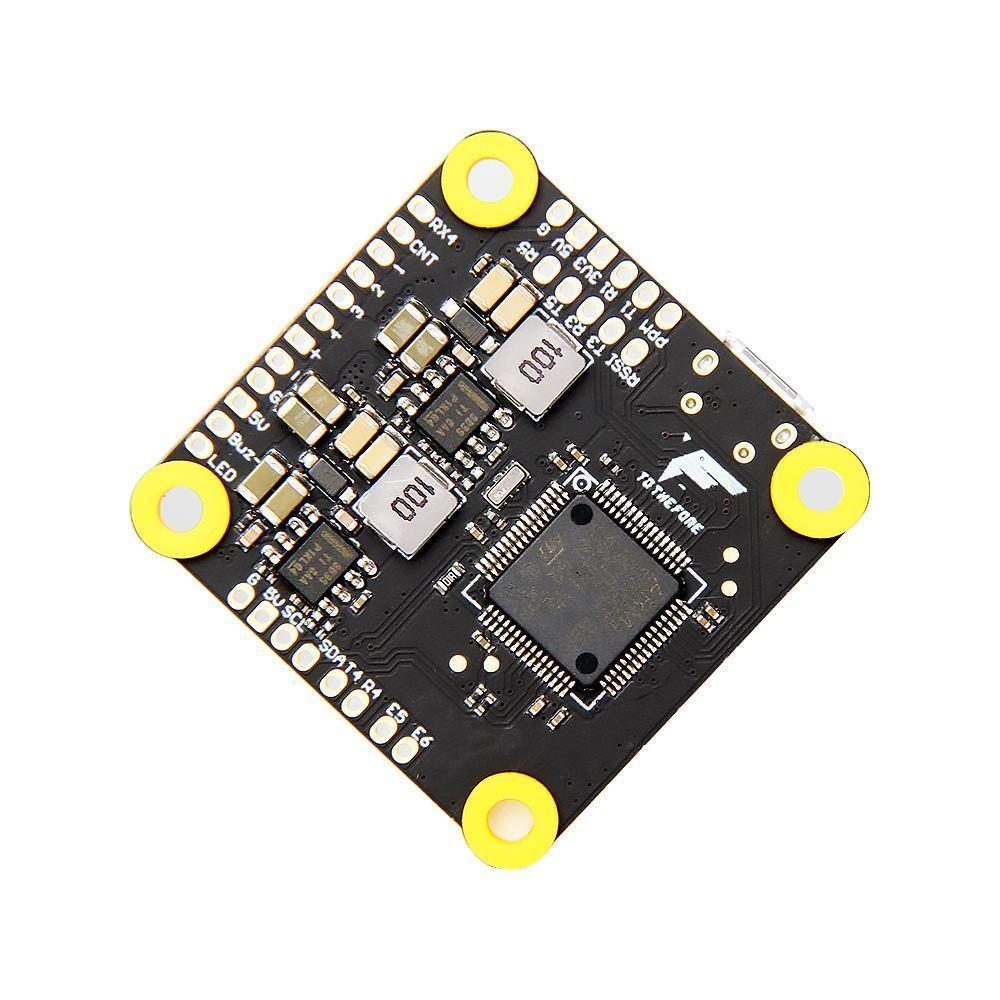

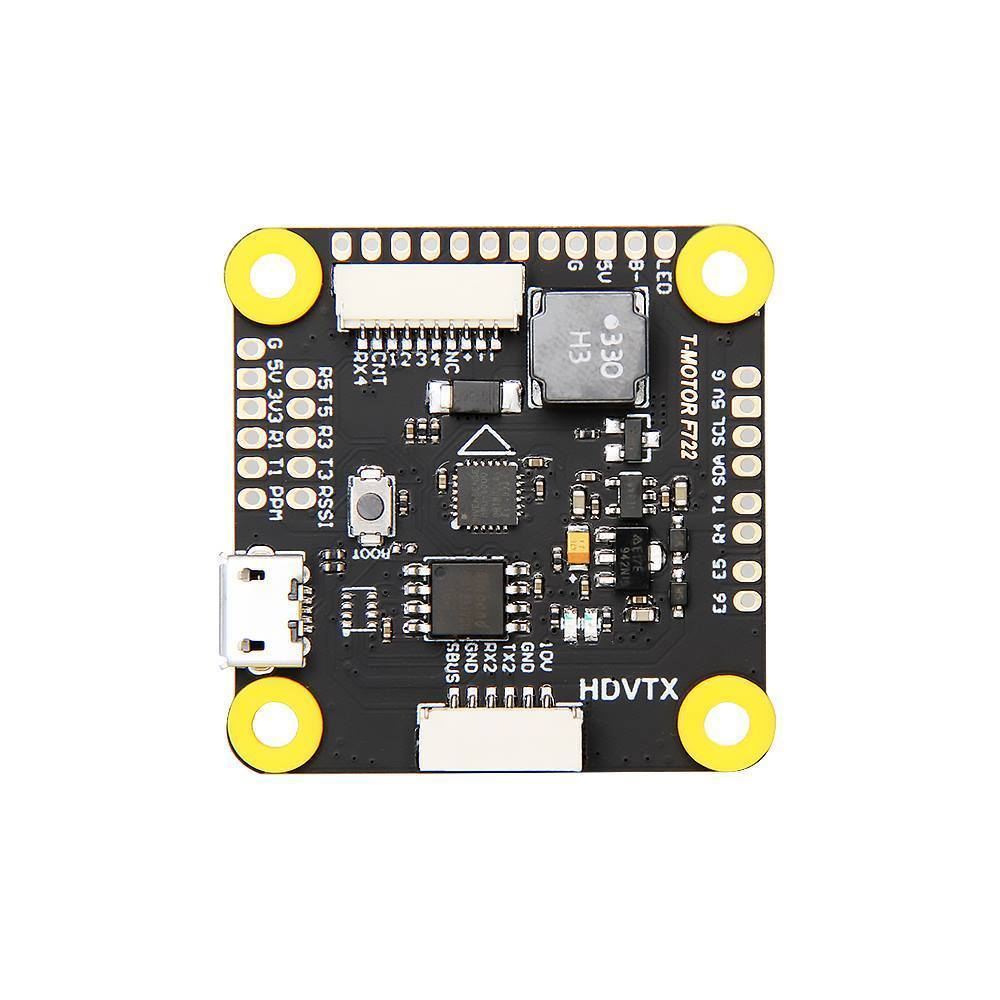

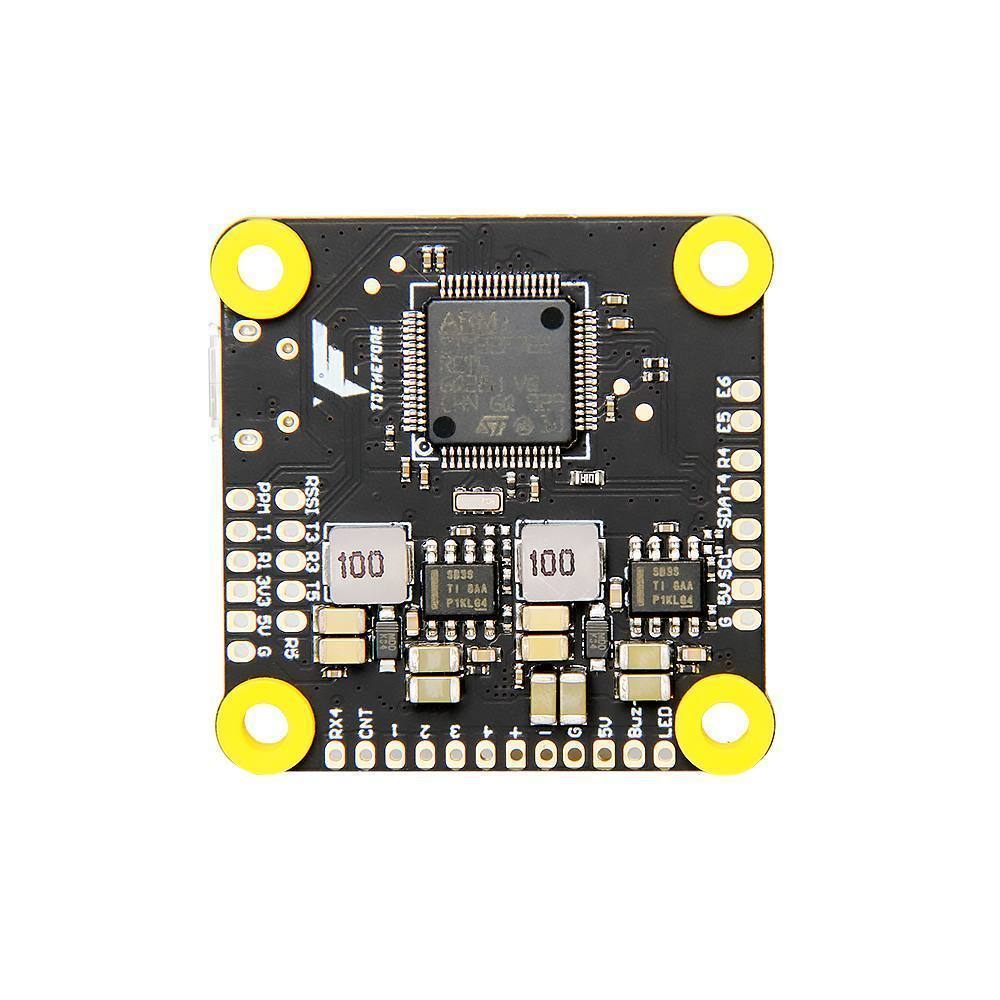

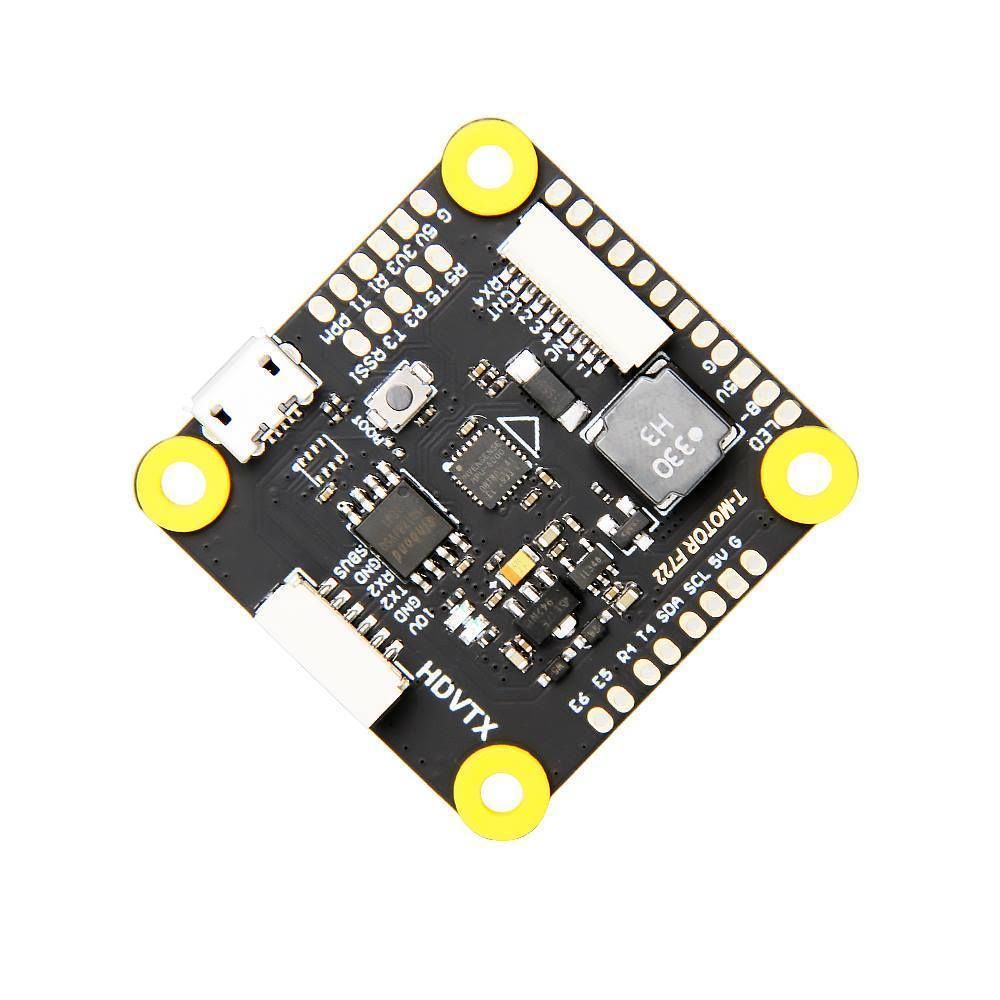

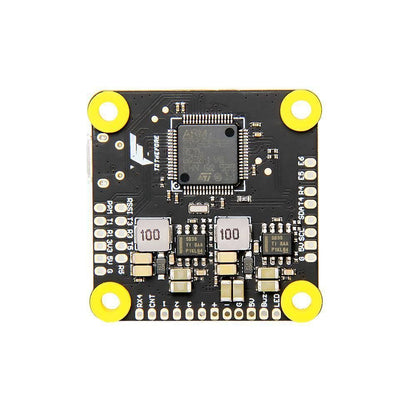

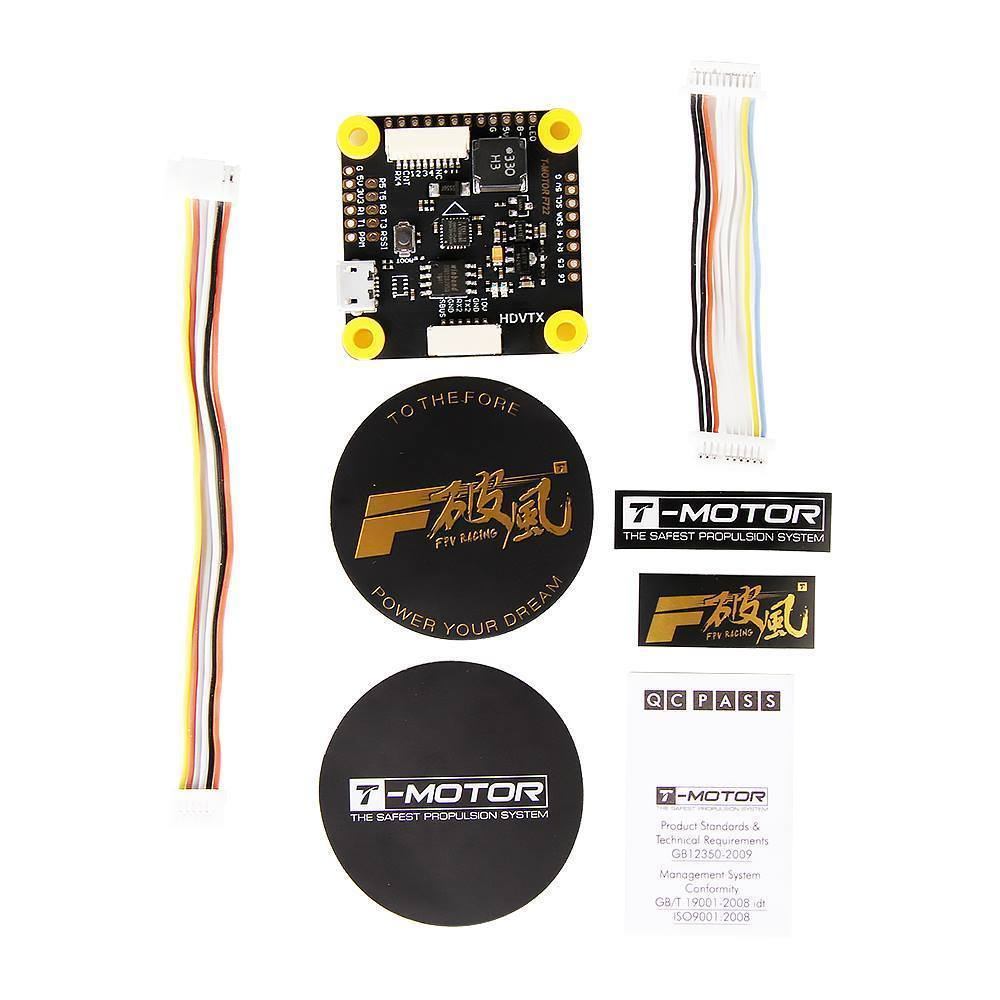

- 1x T-Motor F7 HD 30x30 Flight Controller for DJI

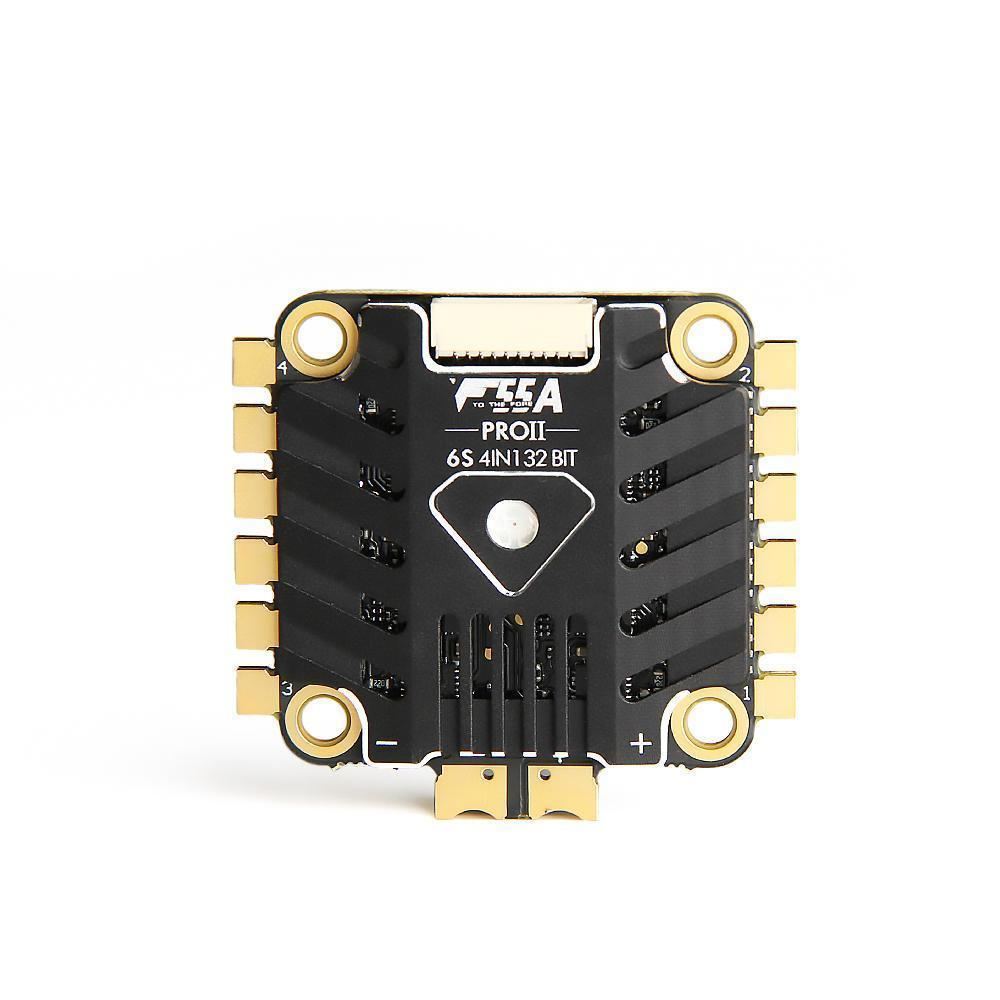

- 1 x F55A Pro II 4 in 1 Brushless ESC
