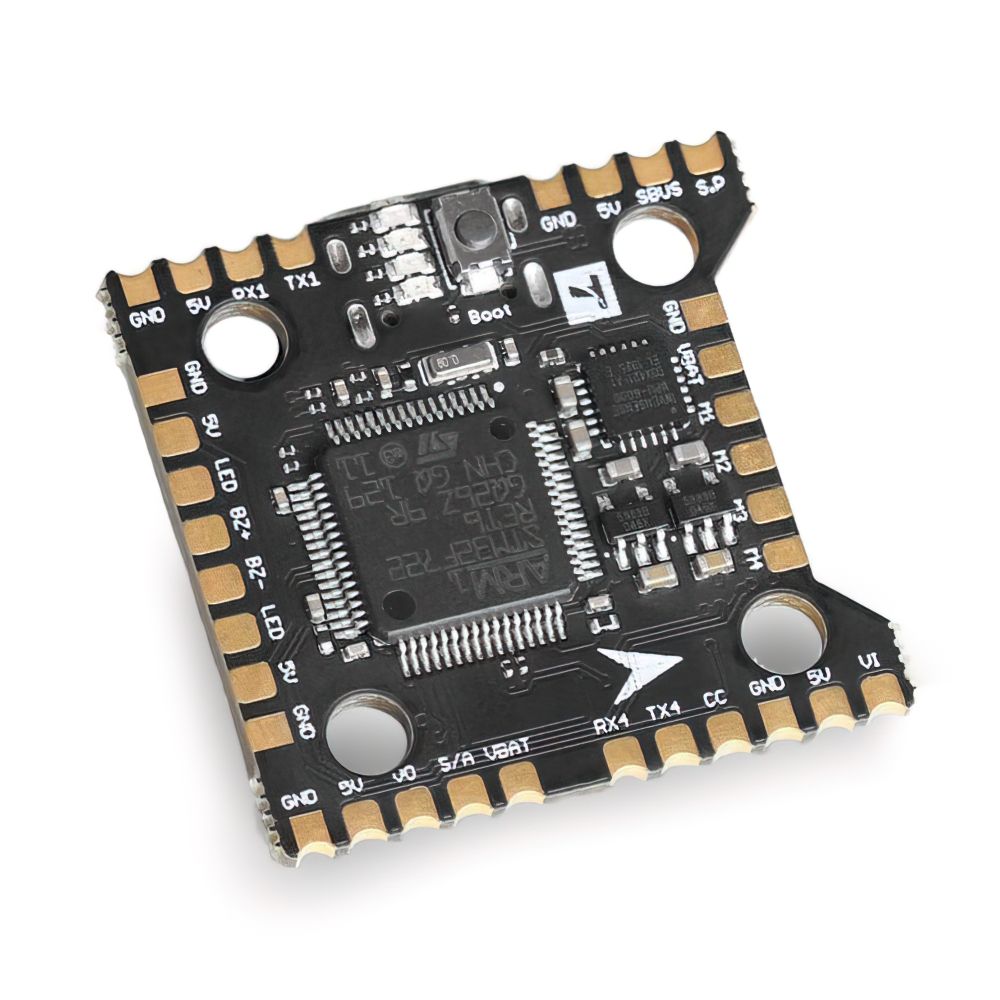

T-Motor Mini Racer F7 Flight Controller 20x20mm

The T-Motor Mini Racer F7 is a 3-6S 20x20 mini flight controller with a 16MB Blackbox flash memory, 5V.2A BEC, and an MPU6000 gyro. Designed for easy maintenance and low interference.


Features

• Supports USB Power without LiPo
• SImplified Lightweight Design
• 16M Blackbox Flash Memory
• Gyro Low Dropout Regulator
• USB-C Connection
• IMU MPU6000
• 4 UARTS

Specifications

• Mounting Hole: 20x20mm M3
• MCU: STM32F722RET6
• BEC: 5V/2A (Peak 2.5A)
• Dimensions: 31x30mm
• Blackbox: YES (16MB)
• Input Voltage: 3-6S
• Gyro: MPU6000
• Weight: 4.7g
• OSD: YES
• UARTs: 4

Includes

• 1x T-Motor Mini Racer 20x20 F7 Flight Controller
• 1x Connector Wire
• 4x Damping Grommets (Pre-Installed)
