Experience the enhanced specifications and improved features of the Velox V3.0 2306 while enjoying the same budget-friendly price that made the V2 series popular among FPV enthusiasts.
The upgrade of drone fpv motor
upgrades in both materials and design
Materials: varnished wire is thermostable and single wireMagnet is high-quality curved one

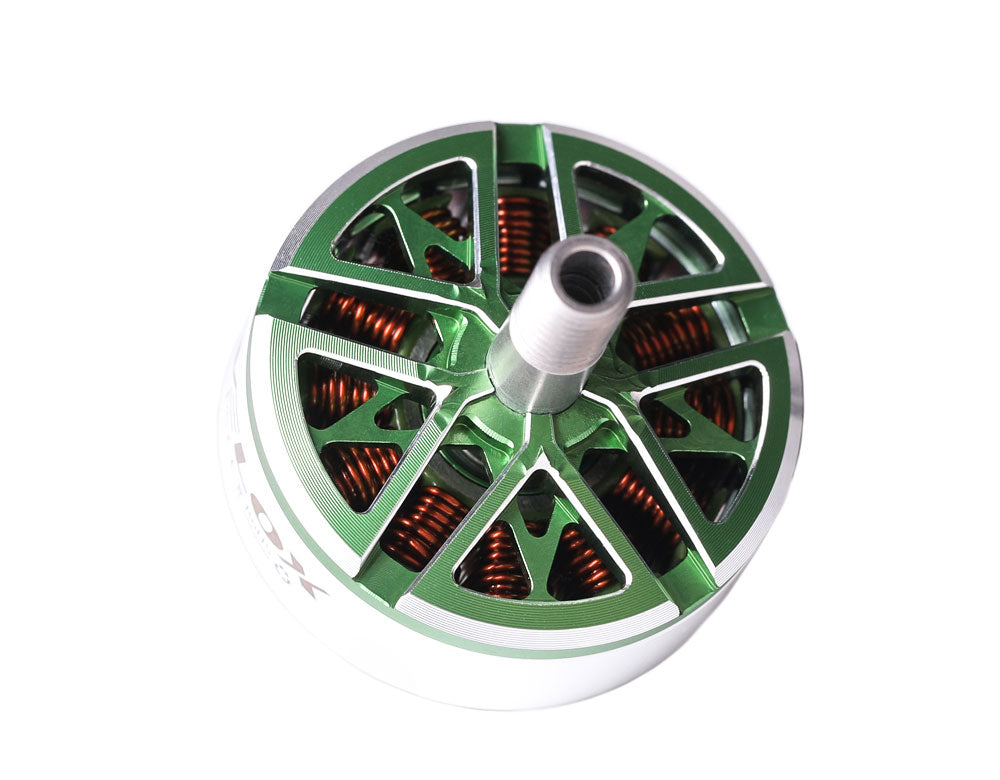

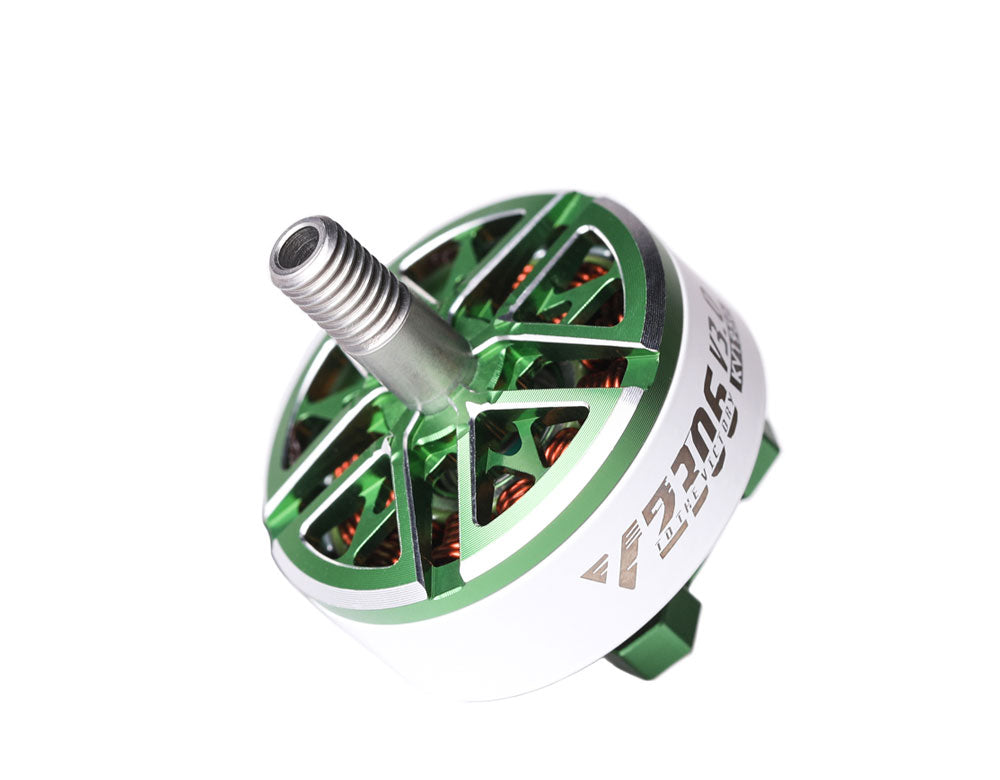

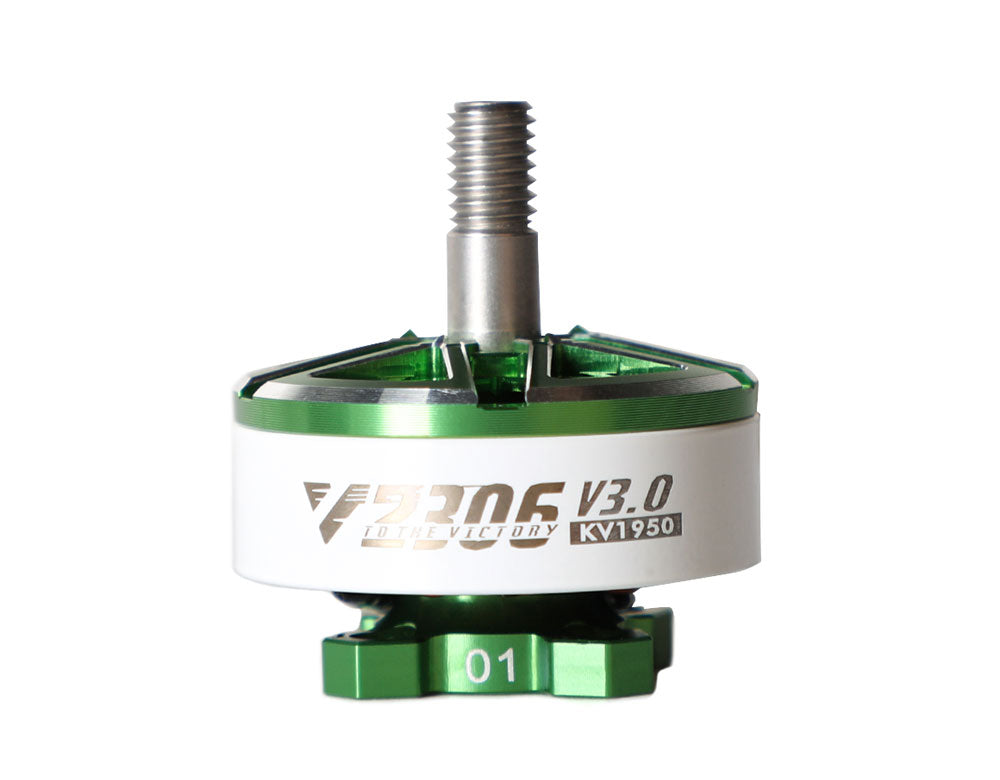

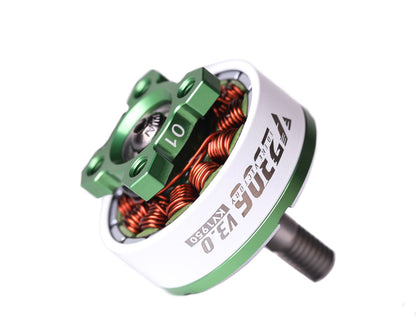

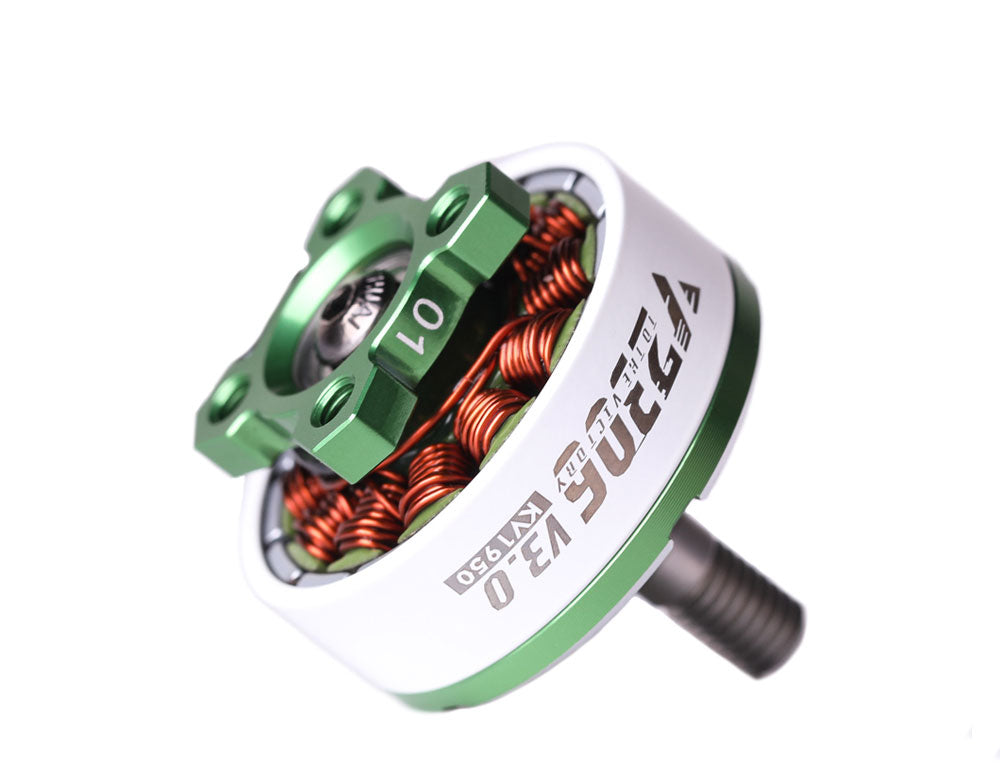

V2306 V3 Brushless Drone Motor
Design:
It creatively used angular pedestal
Top part has been strengthened, propeller is strengthened, therefore is more stable as well
V2306 motor totally has 3 KV totally:
1750KV, stable and easy to operate, first choice for flow flying
1950KV stronger power first to choose for Acro technique showing
2550KV mainly made for 4S
Recommended：
·Frame: 5" Quadcopter
·ESC: TMOTOR FPV V45A V2 4IN1 ESC ·FC: Velox F7 FC/F411 LITE FC
·Compatible Propellers: TMOTOR FPV T5143S propellers
Specifications
- KV: 1750, 1950 or 2550
- Stator: 2306
- Brand: T-motor
- Configuration: 12N14P
- Shaft Diameter: 5mm
- Motor Bolt Pattern: 16x16mm
- Power Cable Gauge: 20# 150mm
- Weight (Incl. Cable): 33.8g
- Rated Voltage(Lipo): 6S
- Idle Current (10V): 0.85A
- Max Power (60s): 820.7W
- Peak Current (60s): 34.9A
Included
- 1x T-Motor Velox V2306 V3.0 motor (your choice KV)
