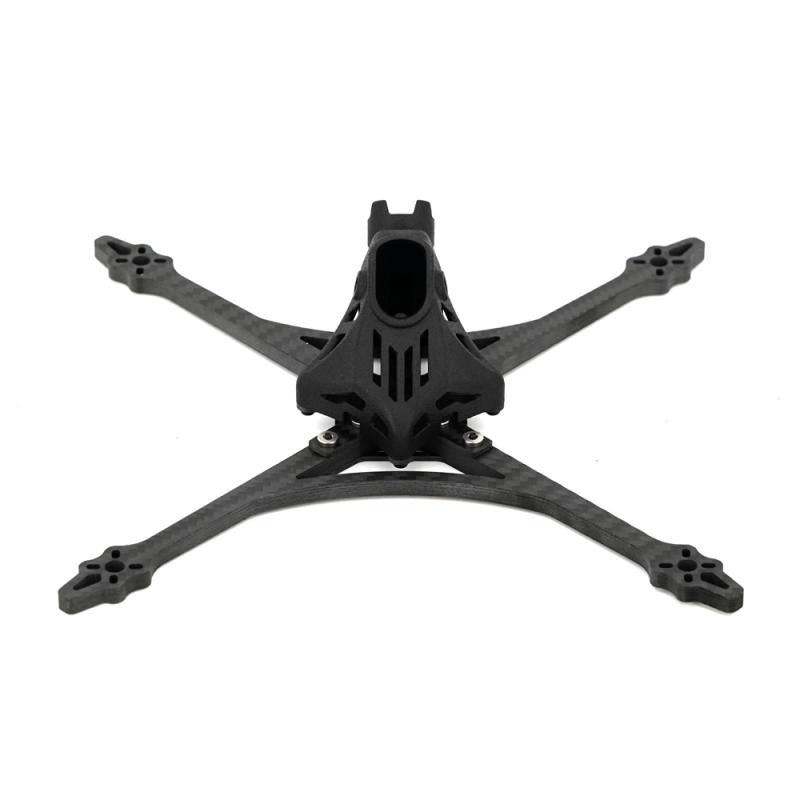

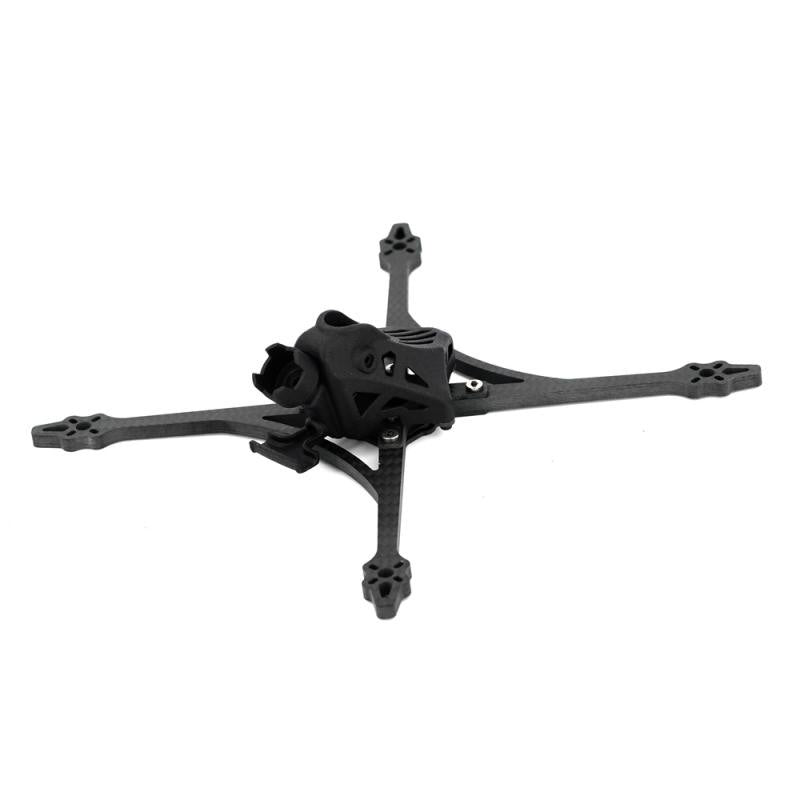

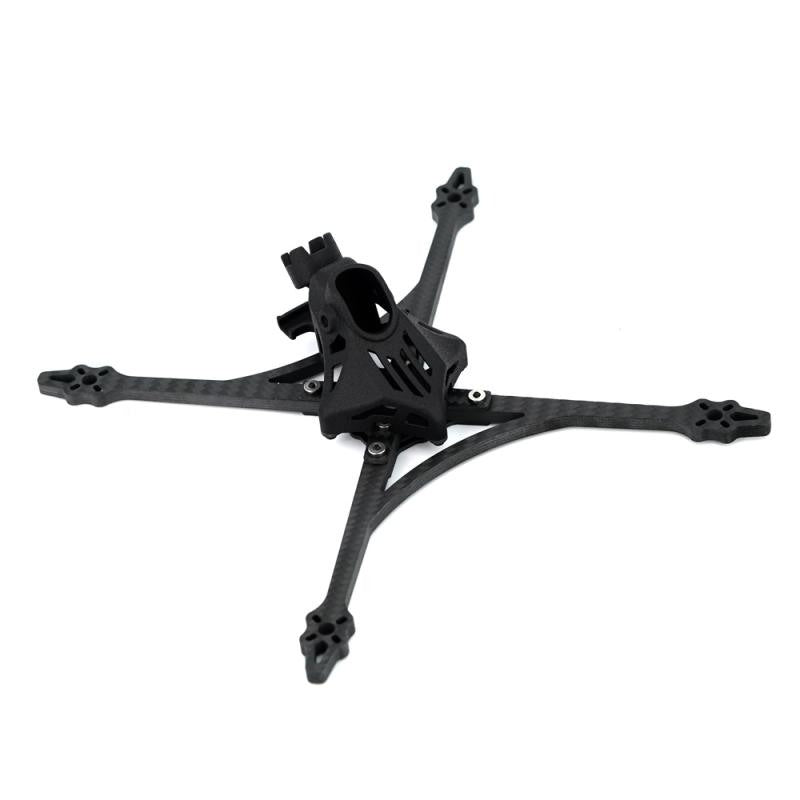

TBS SOURCE PODRACER 5"

The SOURCE PODRACER is a ultralight racing frame, made for speed addicts and grassroots fpv racers. It is designed to maximize speed and minimize drag. It fits and protects all the current toothpick-style FPV components and is optimized for light weight. The SOURCE PODRACER is your perfect race winner, and is recommended for pro racing pilots only.

ABOUT THE PROJECT

The SOURCE PODRACER project is a collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

GET INVOLVED!

• Project discussion: https://github.com/ps915/source_podracer
• Project files: Coming Soon
• 3D Printed files on Thingiverse: Pod
• 3D Printed Parts (STL) Coming Soon

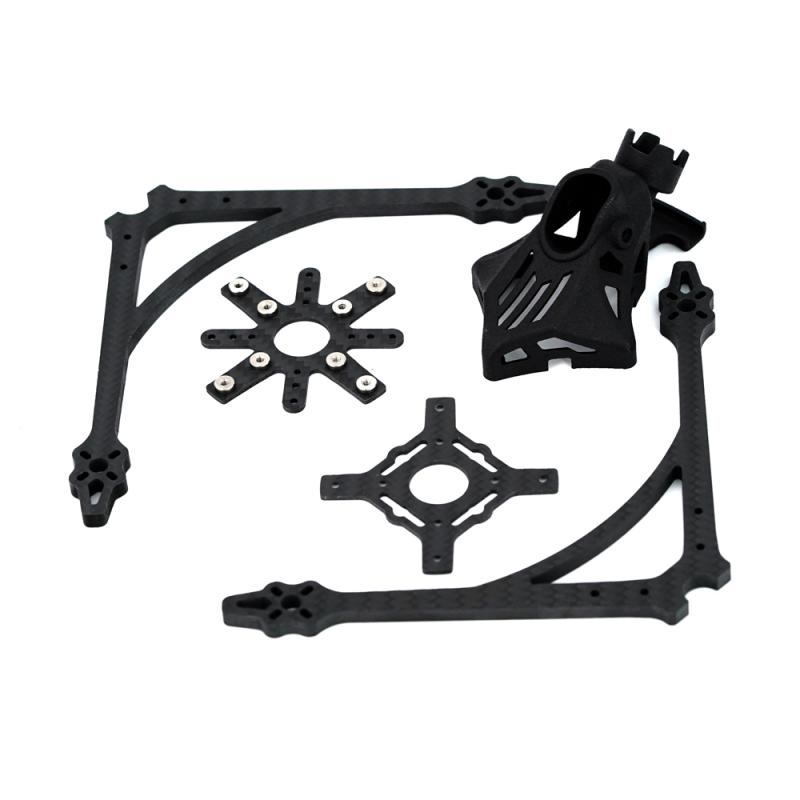

PACKAGE CONTAINS:

• 1 x Carbon Frame Set
• 1 x Nylon SLS Printed Pod
• 1 x Screw Set

TECHNICAL SPECIFICATIONS:

• Wheelbase: 200mm
• Stacking Mounting Plate:  1.5mm
• Bottom Plate: 1.5mm
• Arms: 5mm thick
• Stack Mout:  19 x19mm, 26x26mm, 20x20mm
• Motor Mount: 12 x 12mm & 9 x 9mm
• Frame weight: 47g

HARDWARE:

• 8 x M2x10mm Countersunk screws
• 4 x M2x12mm Countersunk screws
• 2 x M2x6mm Socket head screws
• 24 x M2x10mm Socket screws
• 1 x 1.5mm Carbon Fiber Top Plate
• 1 x 1.5mm Carbon Fiber Bottom Plate
• 2 x 5mm Carbon Fiber Arms
• Black Nylon 3D printed canopy

RECOMMENDED PARTS:

The part recommendations are put together by our engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!

• AIO: BetaFPV Toothpick F4 2-4S AIO Brushless Flight Controller 20A(BLHeli_S)
• Motors: 1506 - 3000kv for 4s
• Camera: Caddx Ant, RunCam Racer Nano
• VTx: TBS Unify Pro32 Nano or TBS Unify Pro Nano
• Antenna: TBS Triumph Pro (U.FL)  *Strongly recommended, the pod is designed for this antenna.
• Props:  5" - Light 5" - low pitch
• Battery: 450 - 600mAh, 3-4S
