The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm...
Vendor: TBS
Availability: In Stock
$7.90
$7.90
Subtotal: $7.90
TBS VTX RX PLATE

TBS VTX RX PLATE

$7.90

TBS VTX RX PLATE

$7.90

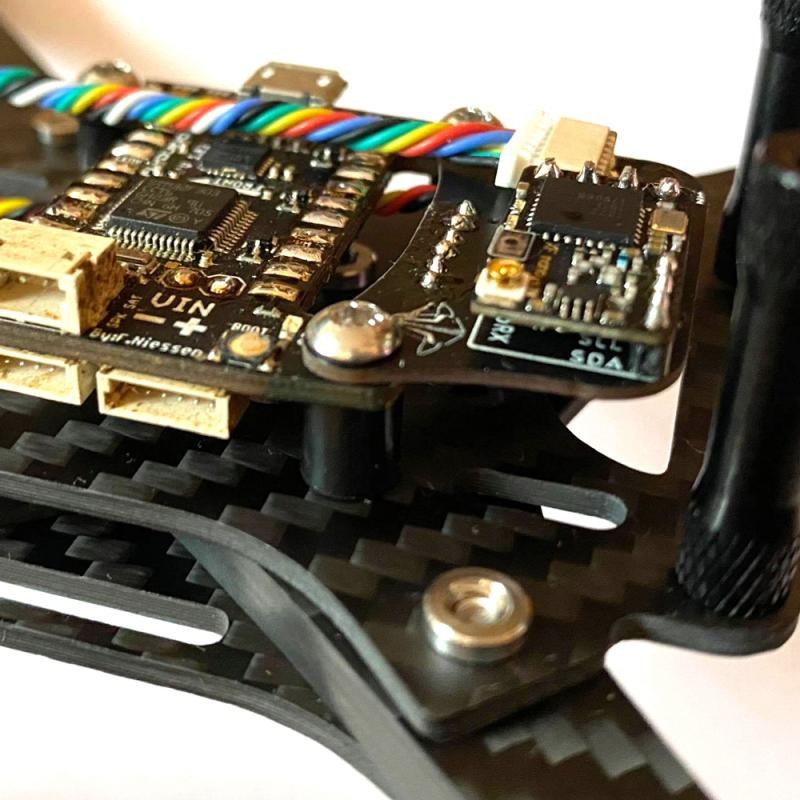

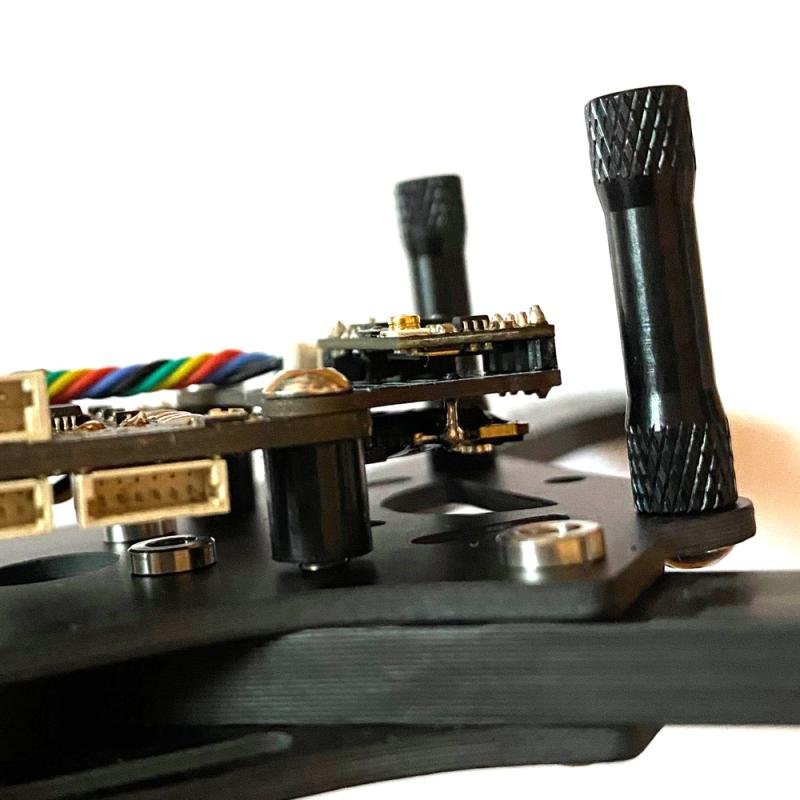

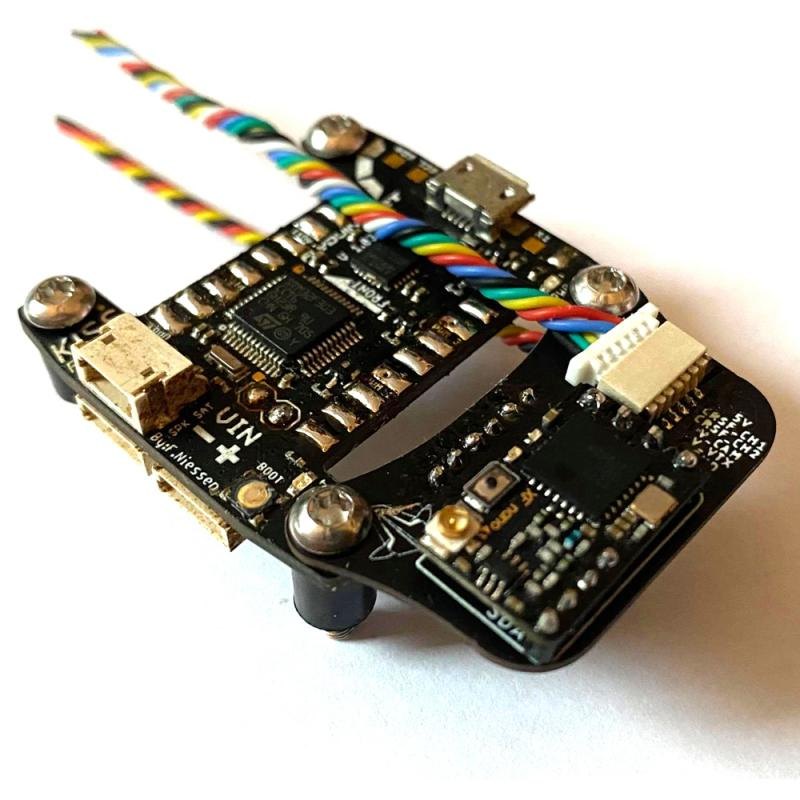

The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm mounting pattern. It comes with plugs and cables for easy building and maintenance.

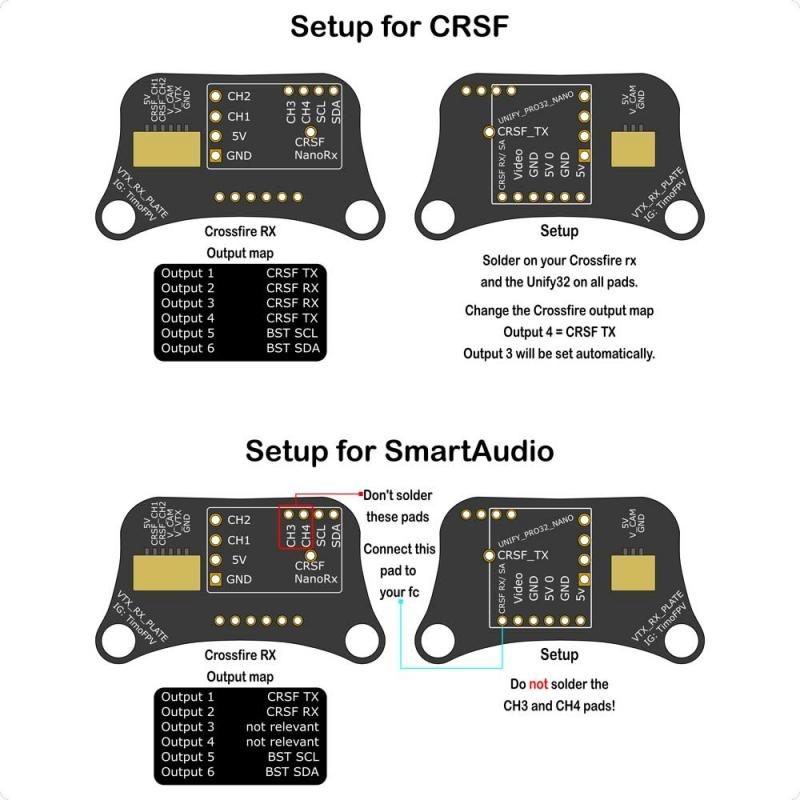

*CRSF TX / RX between the VTX and RX are internally wired if you connect all the pins.

Designed by TimoFPV

SPECIFICATION

  • Weight: 1.7g
  • Mounting Holes: M3
  • Mounting Holes Distance: 30mm
  • Compatibility: TBS Unify Pro32 Nano, TBS Crossfire Nano RX

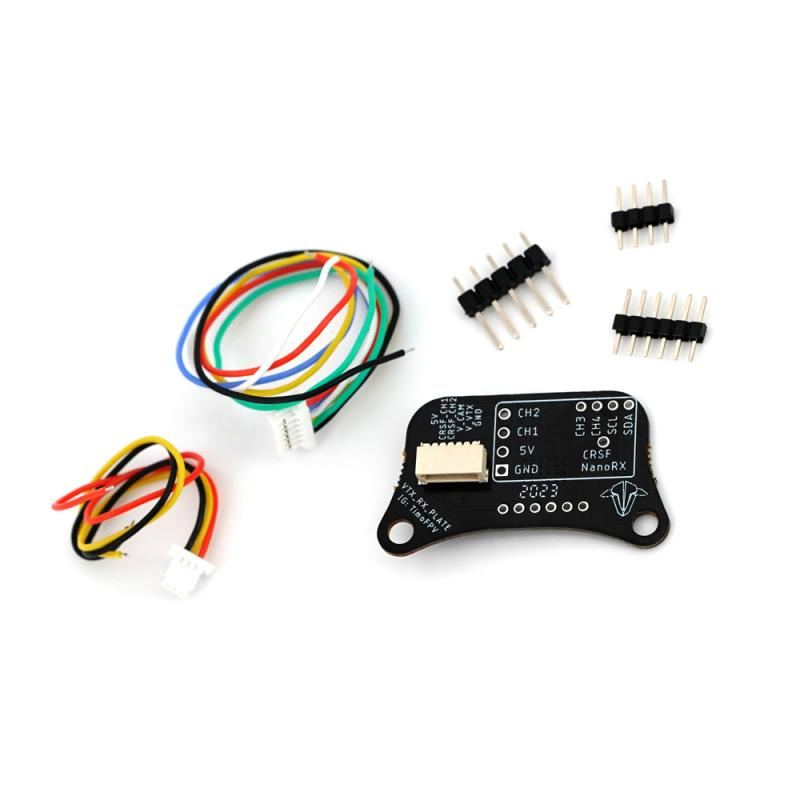

INCLUDES

  • 1 x Mounting Plate
  • 3 x Pin Headers
  • 1 x 3pins plug with silicone wires
  • 1 x 6 pins plug with silicone wires
