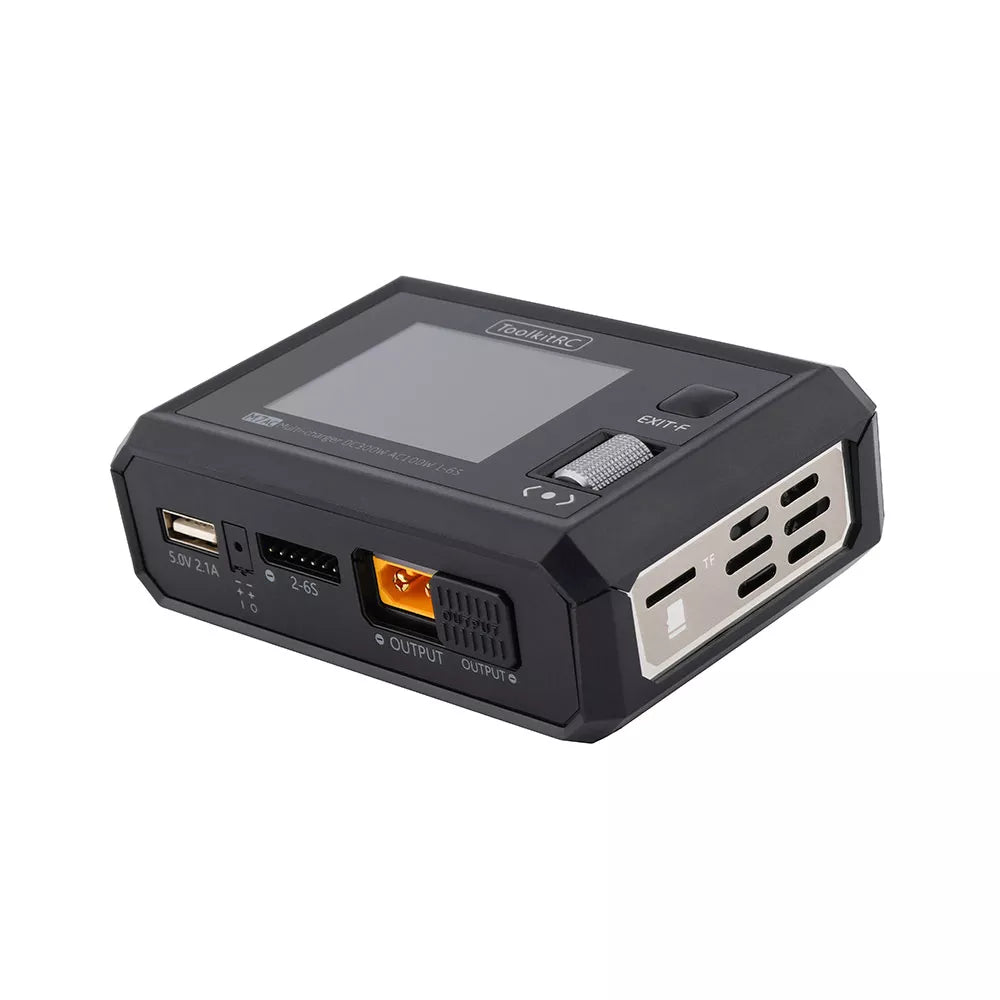

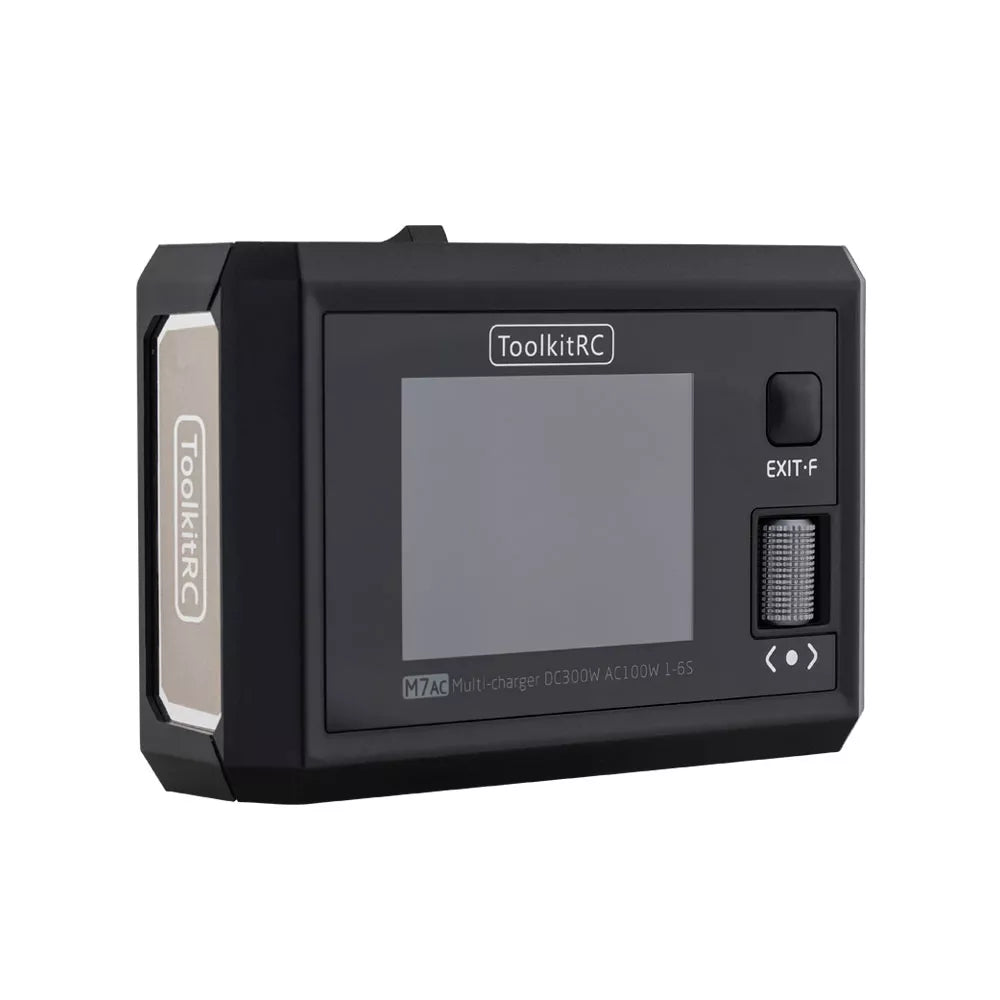

Product descriptionThe M7AC is a multifunctional tool that integratesfunctions such as a balance charger anddischarge, asignal measuring device, and a signal source.

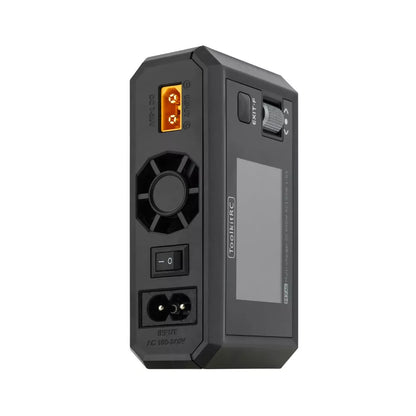

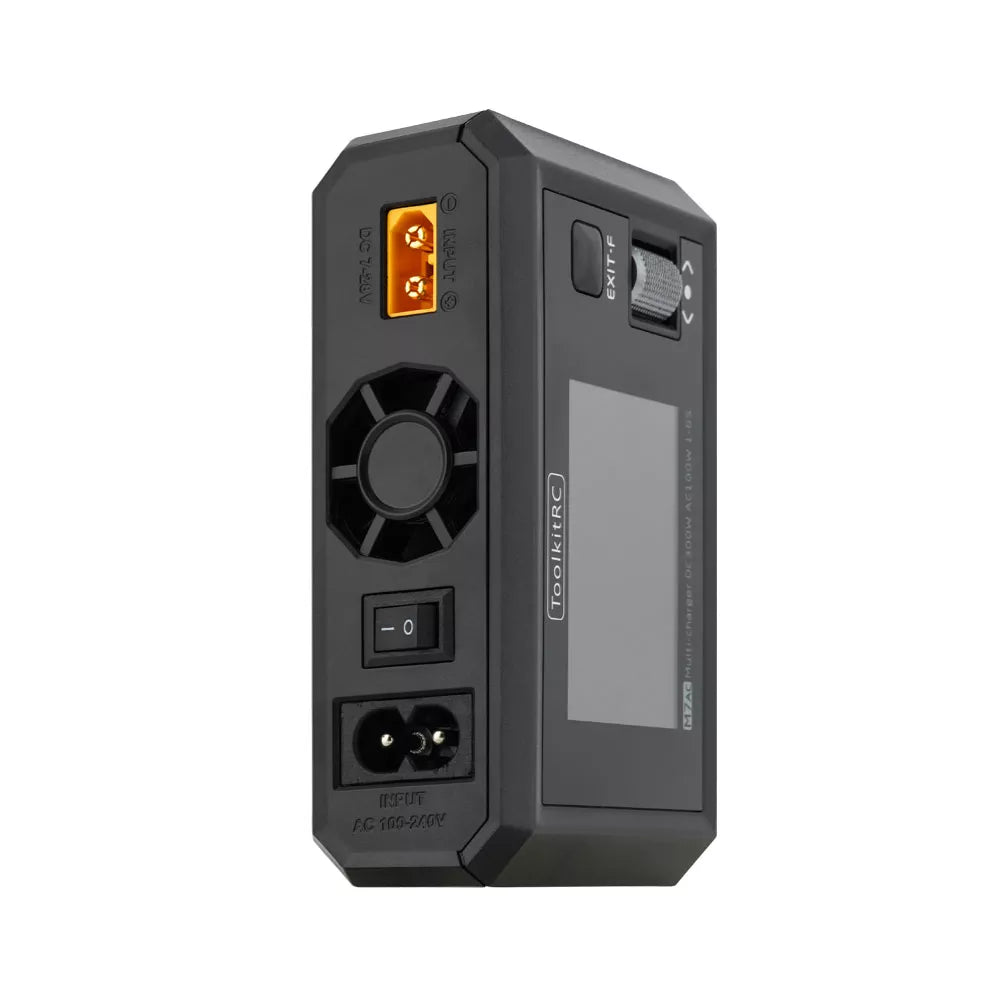

Support AC100Wor DC300Wdual input。
Charges, discharges and balances (whereapplicable) LiPo, LiHV, LiFe, Lion, LTO1-6S, NiMh1-16S, PB 1-10S batteries.
Charge current:MAX 15A @MAX300W.
Discharge current:Recycle / External mode Max 15A@300W. Internal mode Max 3A @15W.
Lithium battery cut-off voltage canbeadjustedatwill (TVC function).
Measures battery voltage, battery internal resistance, and balances lithiumpacks automatically.
Measures / outputs PWM/PPM/SBUSstandardsignals with an accuracy of 1 microsecond.
Constant current and constant voltagesourceoutput, customizable 1-28V constant voltage, 0.5-15A constant current.
Can be adapted for charging consumer-grade drone batteries.
Multi-language user interface.
Multi-language voice broadcast, with customizable voice packs.
Easily upgradable via USB
