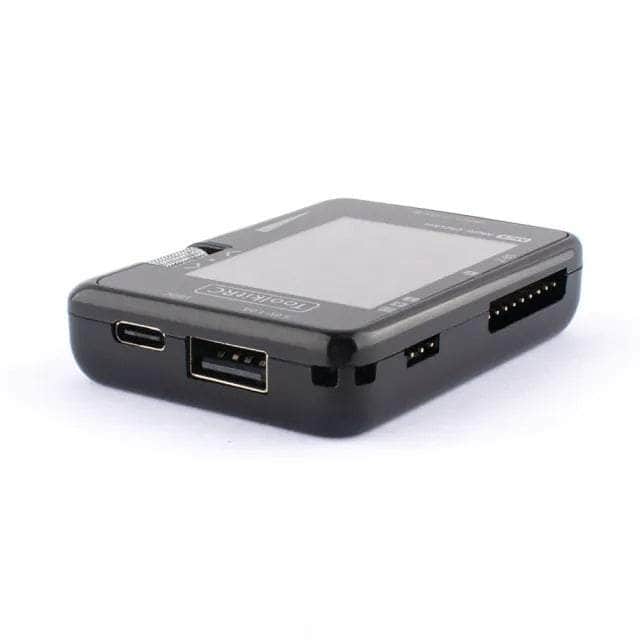

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

$59.40 AUD
$59.40 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details
The latest from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)!  Check the video below to see what it can do!
[embed]https://youtu.be/J_LaU6vMtnc?si=mDRV1M5t7y4iZnY0[/embed]

Specifications


  • LCD:  2" IPS 320x240
  • Dimensions: 68x50x15mm
  • Weight: 50g

Checker

  • Main Input port: XT60 7.0-35.0V
  • Balance input: 0.5V-5.0V Lixx 2-8S
  • Signal port input: <6.0V
  • Balance current: MAX 60mA @2-8S
  • Balance accuracy: <0.005V @ 4.2V
  • USB-A output: 5.0V@1.0A firmware upgrade
  • USB-C output: 5.0V-12.0V @MAX 20W
  • USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Measurer

  • PWM: 500-2500us @20-400Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz

 Output

  • PWM: 1000-2000us @20-1000Hz
  • PPM: 880-2200us*8CH @50Hz
  • SBUS: 880-2200us*16CH @74Hz

Includes

  • 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
