True RC “X” antennas set for DJI FPV

Description:

The “X” antennas set is a cross-polarized antennas kit meant to be used with DJI fpv goggles and airunit. This cross-polarized arrangement offer a more reliable  link, maximize bit rate and minimize latency in cluttered environments, like indoor or between buildings. It consist of two RHCP and two LHCP stand-alone X-AIR for the goggles and one of each RHCP and LHCP OCP antennas for the airunit.


Installation

Place the X-AIRs on the goggles following a X pattern:

• Bottom left: LHCP
• Top left: RHCP
• Top right: LHCP
• Bottom right: RHCP



Specs

• Gain (X-AIR): 9.5-10.5 dBic
• Gain (OCP): 1.6 dBic
• Polarization: RHCP and LHCP
• Beam-width* (X-AIR): 120deg
• Beam-width @-3dB** (X-AIR): 68deg.

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

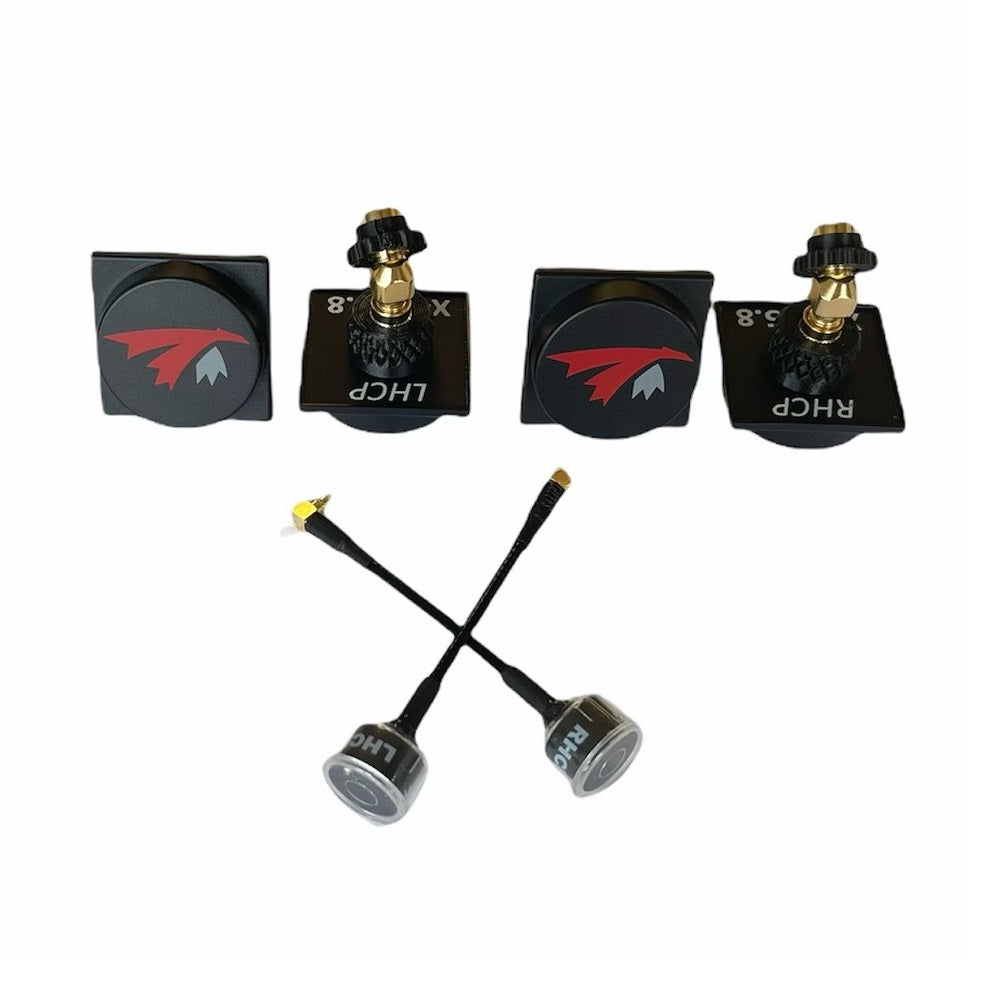

Includes

• 2x RHCP X-air 5.8 MK.II
• 2X LHCP X-air 5.8 MK.II
• 4X 45deg low-loss RP-SMA adapters
• 1x RHCP OCP with MMCX90 connector
• 1x LHCP OCP with MMCX90 connector



Useful print!

• X tie brace
