DESCRIPTION

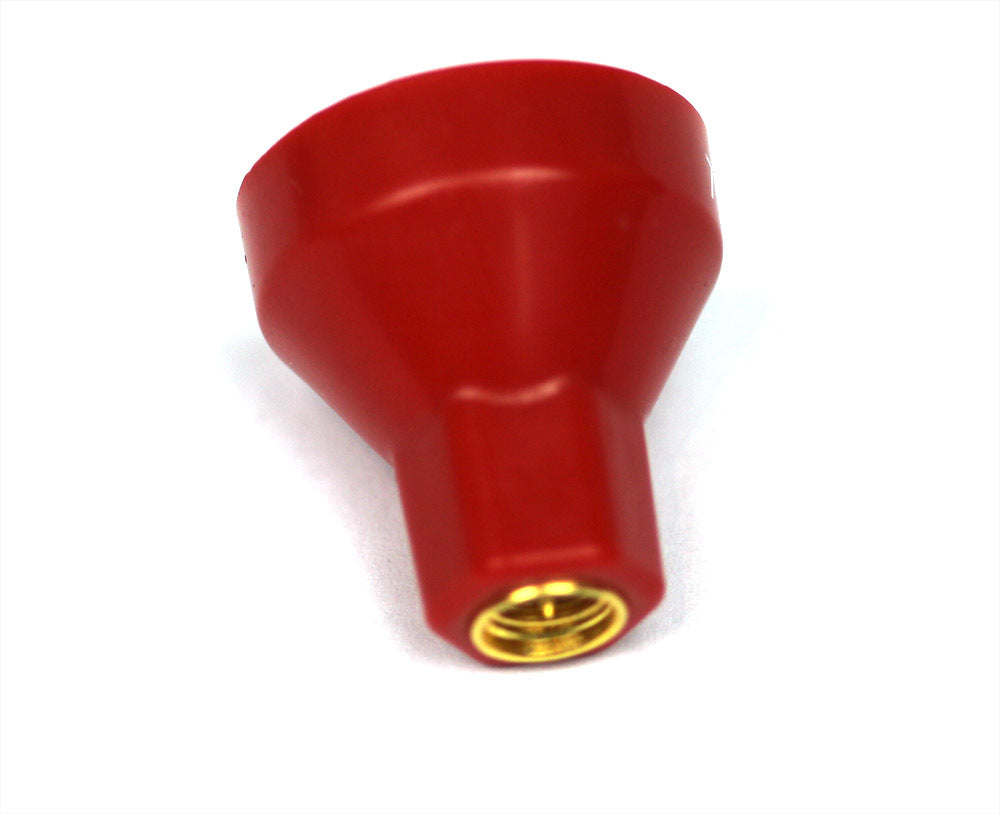

The ODiNE stem from the Pagoda, but we re-engineered it into a much more compact antenna and maximized efficiency. Its strong polycarbonate case is also an inherent part of the RF design. The microwave-grade pcbs and their shell work together to bring all the performances we know of the pagoda, in a neat stubby form factor.
SPEC:
- Bandwidth: 5.6GHz-6.0GHz
- Gain: 1.5dBic
- Radiation efficiency: 98%
- Weight: 5.4g
- Dimensions: D:23mm H:24mm
- Connector: SMA
