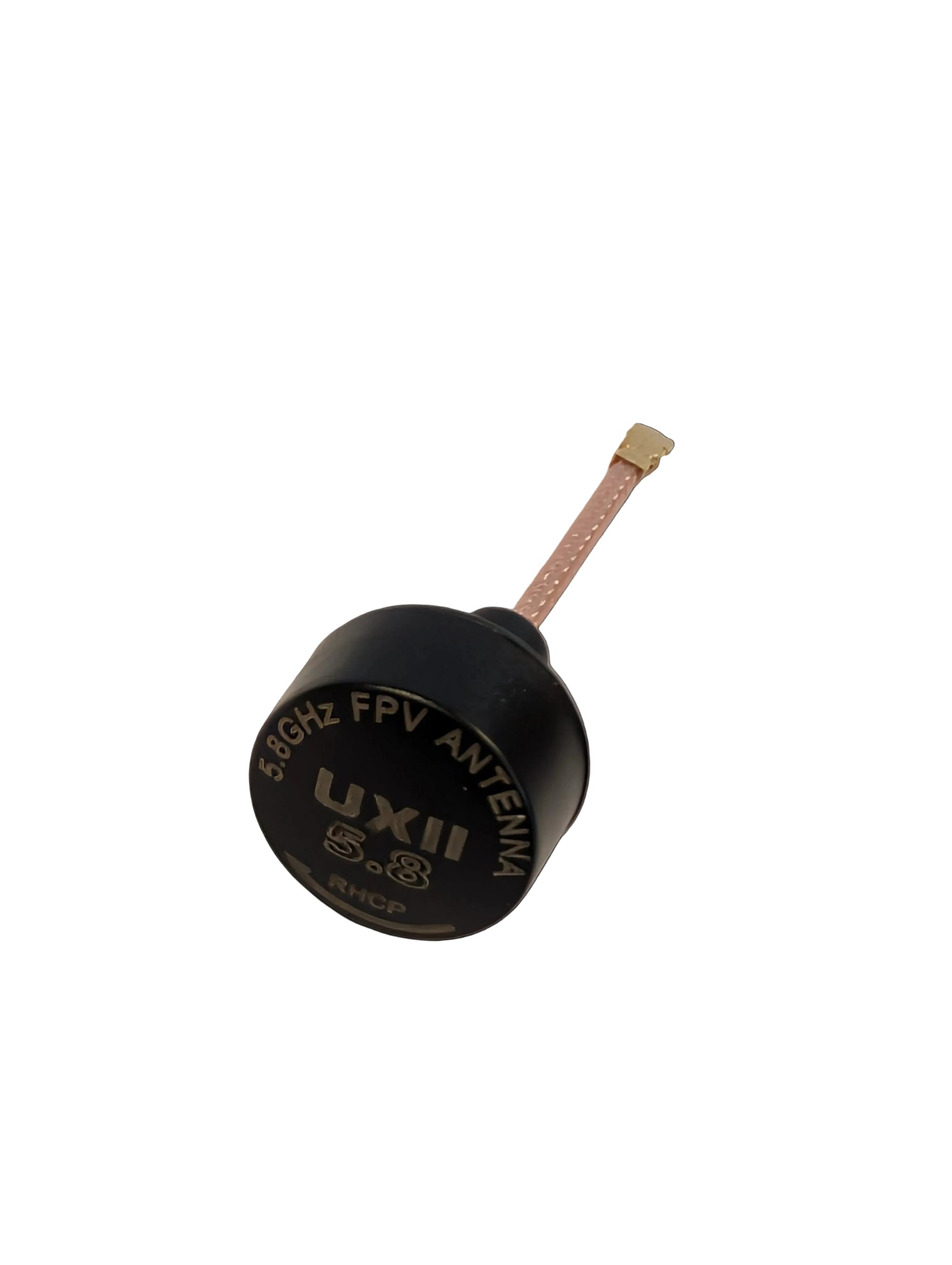

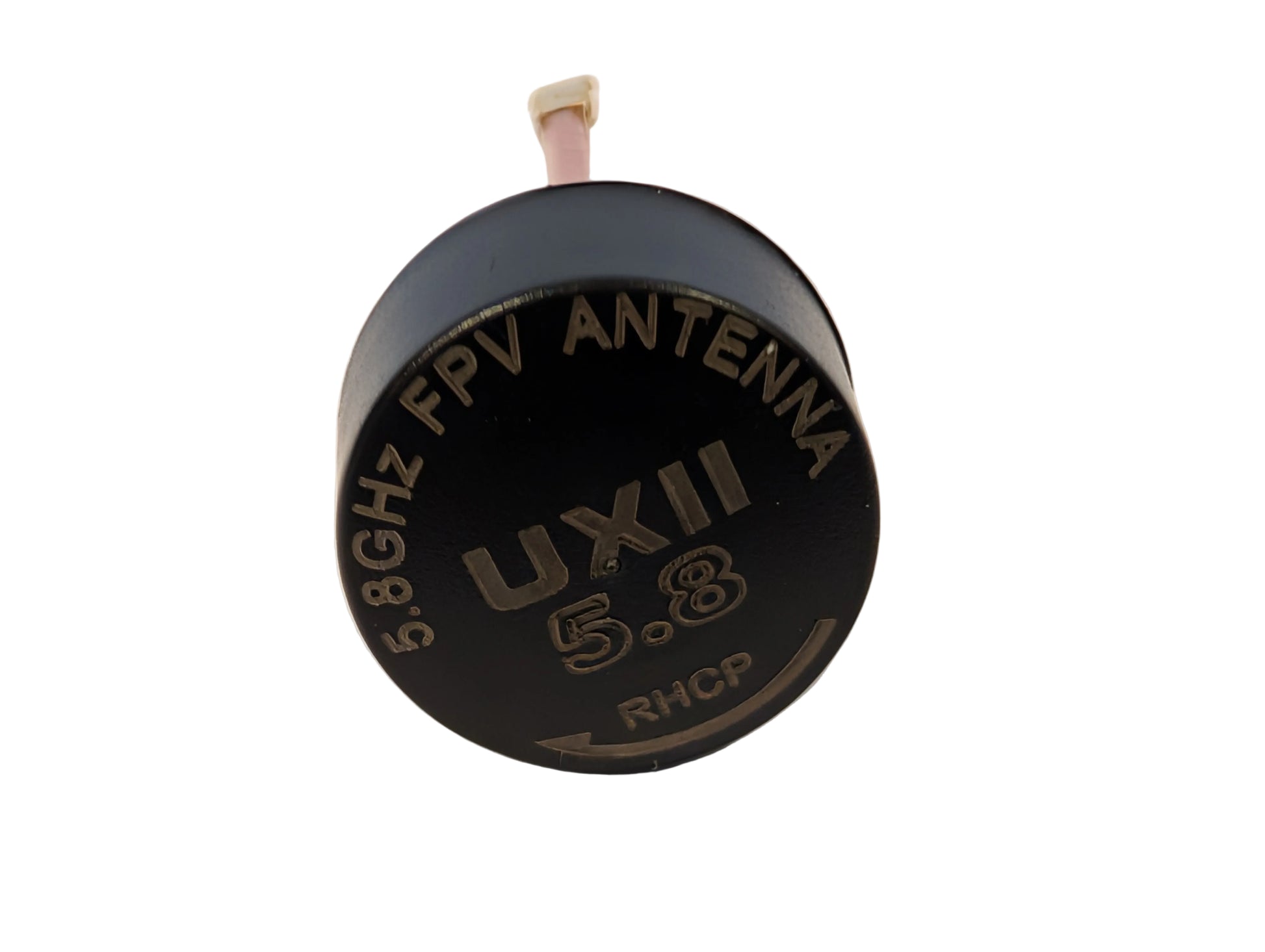

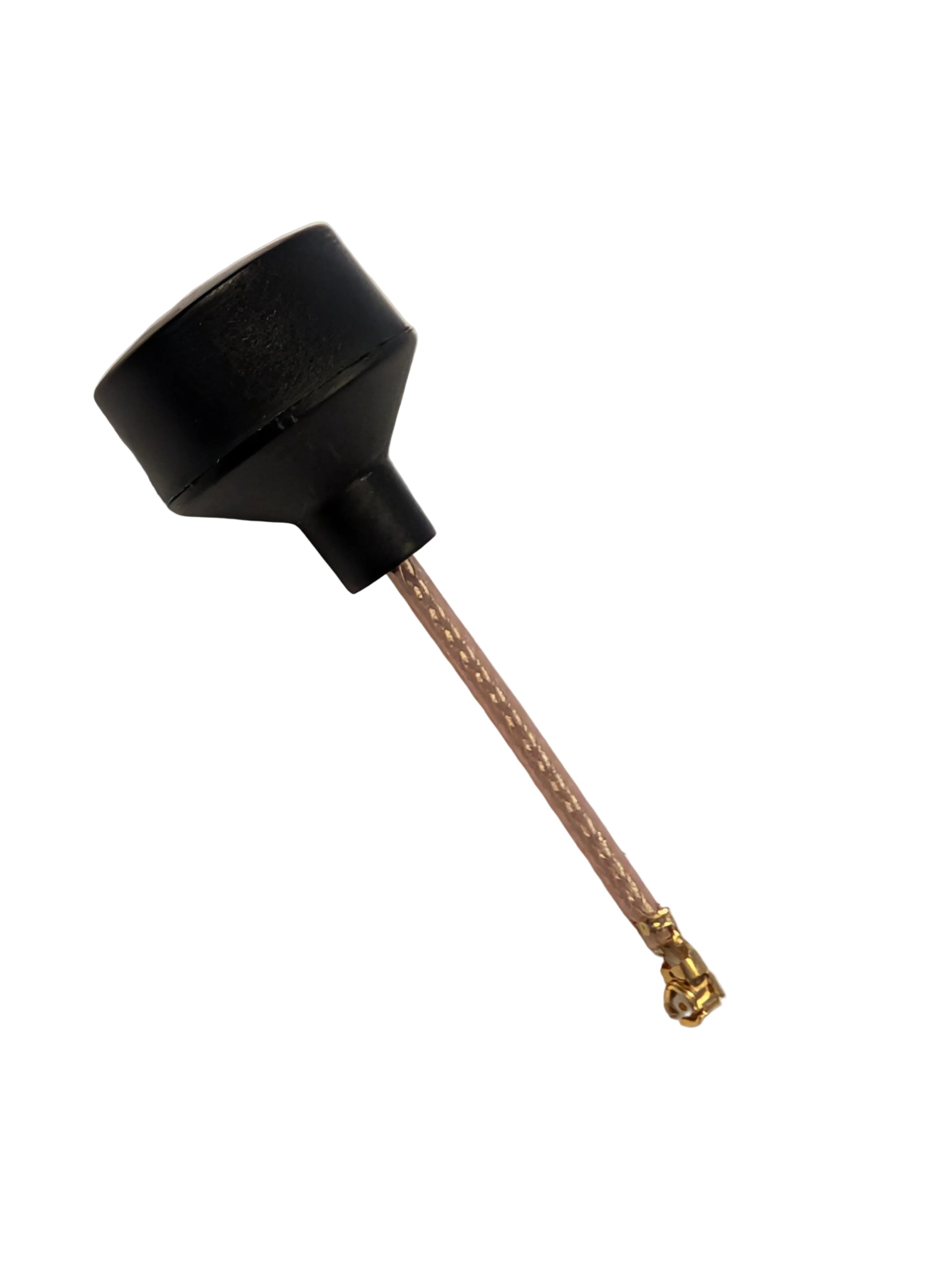

Dominate the skies with the Uxii Short RHCP u.fl 5.8GHz Antenna—engineered for pilots who refuse to compromise. This featherweight 40mm powerhouse delivers razor-sharp circular polarisation, cutting through interference and maximising signal strength even in the most chaotic flight environments. The compact u.fl connector makes swapping antennas effortless, while the aggressive RHCP design ensures you stay locked onto your video feed with unwavering clarity. Built for speed, built for precision, built for victory.
With its lightweight design, new 4-leaf construction, Uxii Antenna offers superb penetration, signal strength and clarity, and is now available to pilots at an incredibly attractive price.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you're on, you are guaranteed to have a signal as clear and strong as it’s possible.
The UXII Antenna casing is made of impact-resistant polycarbonate material that is sealed to protect the antenna elements inside.
Specifications：
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: ≤1.2:1
Radiation Efficiency: 99%
Polarisation: RHCP
Connector: ipex/UFL
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 40mm
Cable: Resilient RG141 coax.
Colors: Black
Weight: 2.1g
Includes：
1x UXII 5.8Ghz ipex/UFL Stubby Antenna - RHCP 40mm
