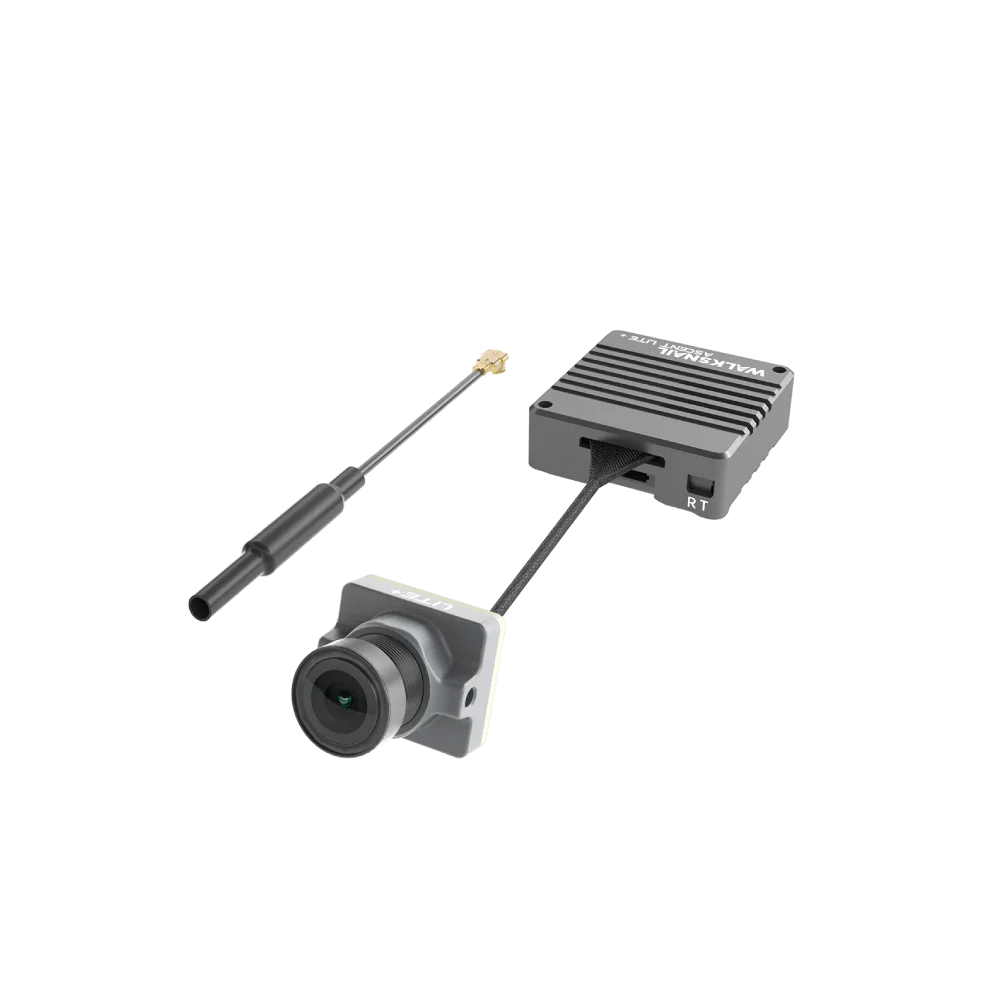

WalkSnail Ascent HD Lite+ Kit
Works with the Caddx Ascent system Only - see infographic below
Specification
- Name: Ascent HD Lite+ VTX
- Communication Frequency: 5.730-5.815 GHz
- Transmit Power (EIRP): FCC/SRRC:≤27dBm; CE:＜14dBm
- I/O Interface: JST1.0*4 (Power cord); HSG0.8*5 (USB)
- Channels: 3
- Wide Voltage Input: 3V~12.6V
- Supported FC Systems: Betaflight; Inav; Fettec; Kiss; ArduPilot
- Bitrate: MAX 25mbps
- OSD: Canvas mode
- MIC Recording: Support
- End-to-End Latency: Average latency 35ms
- Antenna: 1 (Ipex-1)
- Operating Bandwidth: 5M/ 10M/ 20M/ AutoImage Sensor: 1/2.8 inch
- Resolution: 1080P/ 120fps, 1080P/ 100fps, 1080P/ 60fps, 720P/ 120fps, 720P/ 100fps, 720P/ 60fps
- Ratio: 16/ 9
- MIC: Lens Built-in Mic
- Mounting Hole: 20*20mm(M2)
- Weight: 10.5g
- Dimensions: Camera: 12*14*15.8mm; VTX: 23.5*23.5*8mm
