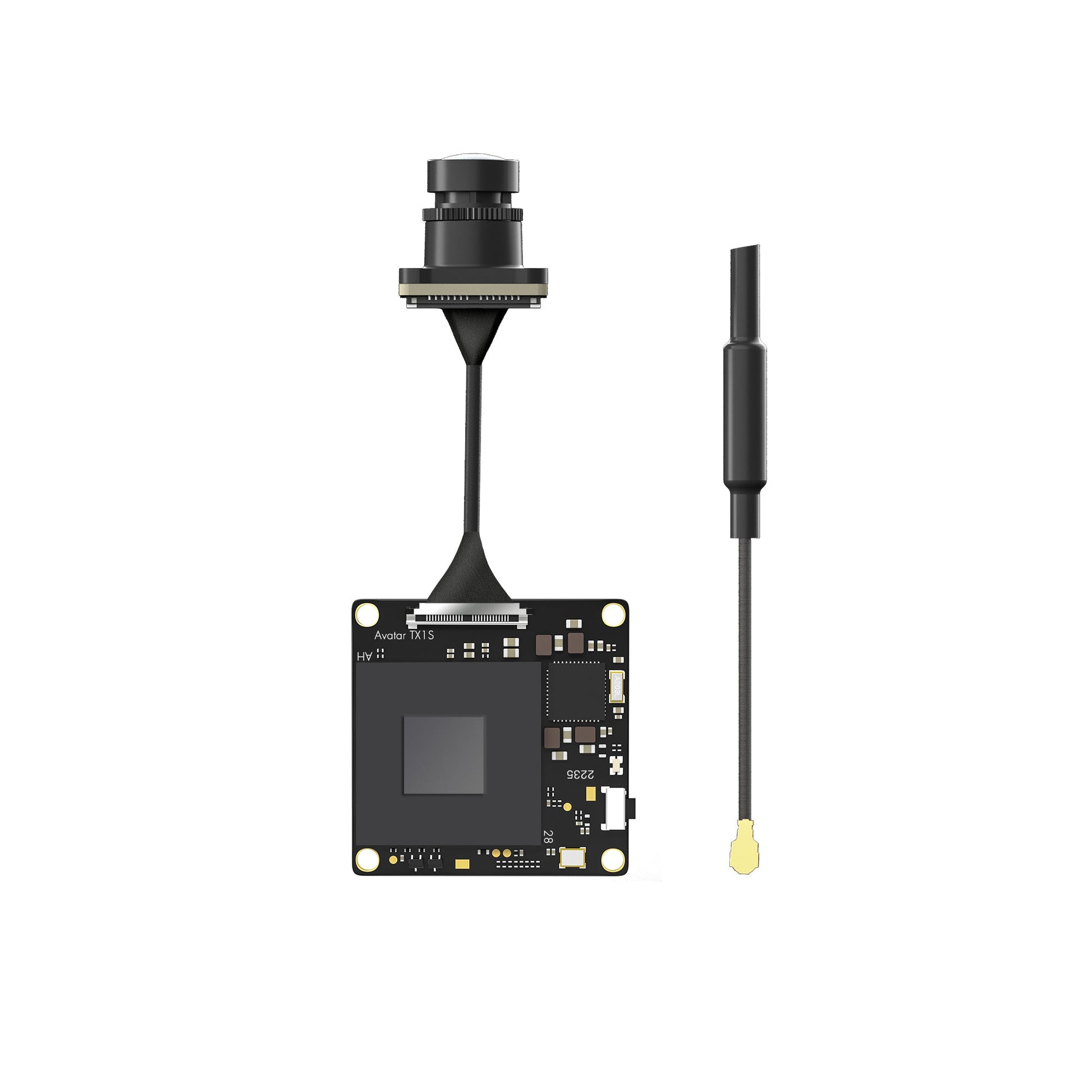

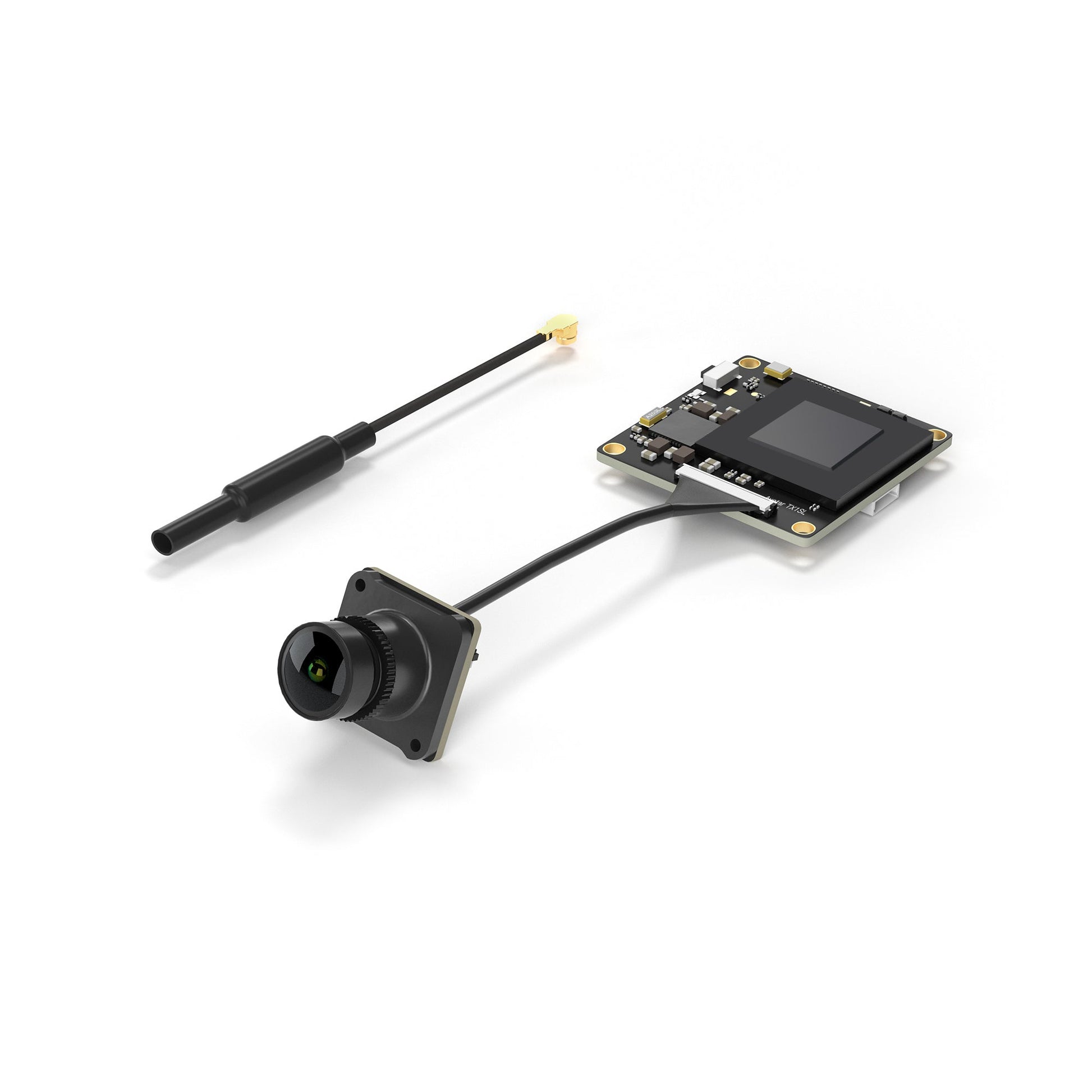

Walksnail Avatar HD mini 1s lite kit

Product features:1080P/60fps、22ms low latency、7.8g light weight、Canvas mode、Built-in 8g storage、HDMI out、31.-5V、350mw、Small antenna   New version of VTXAvatar HD mini...
Vendor: CADDX
Availability: In Stock
$163.90
$163.90
Subtotal: $163.90
1_2cce6c83-1b97-4219-8274-6df3f8fa69bc

Walksnail Avatar HD mini 1s lite kit

$163.90

Walksnail Avatar HD mini 1s lite kit

$163.90


Product features:

1080P/60fps、22ms low latency、7.8g light weight、Canvas mode、Built-in 8g storage、HDMI out、31.-5V、350mw、Small antenna

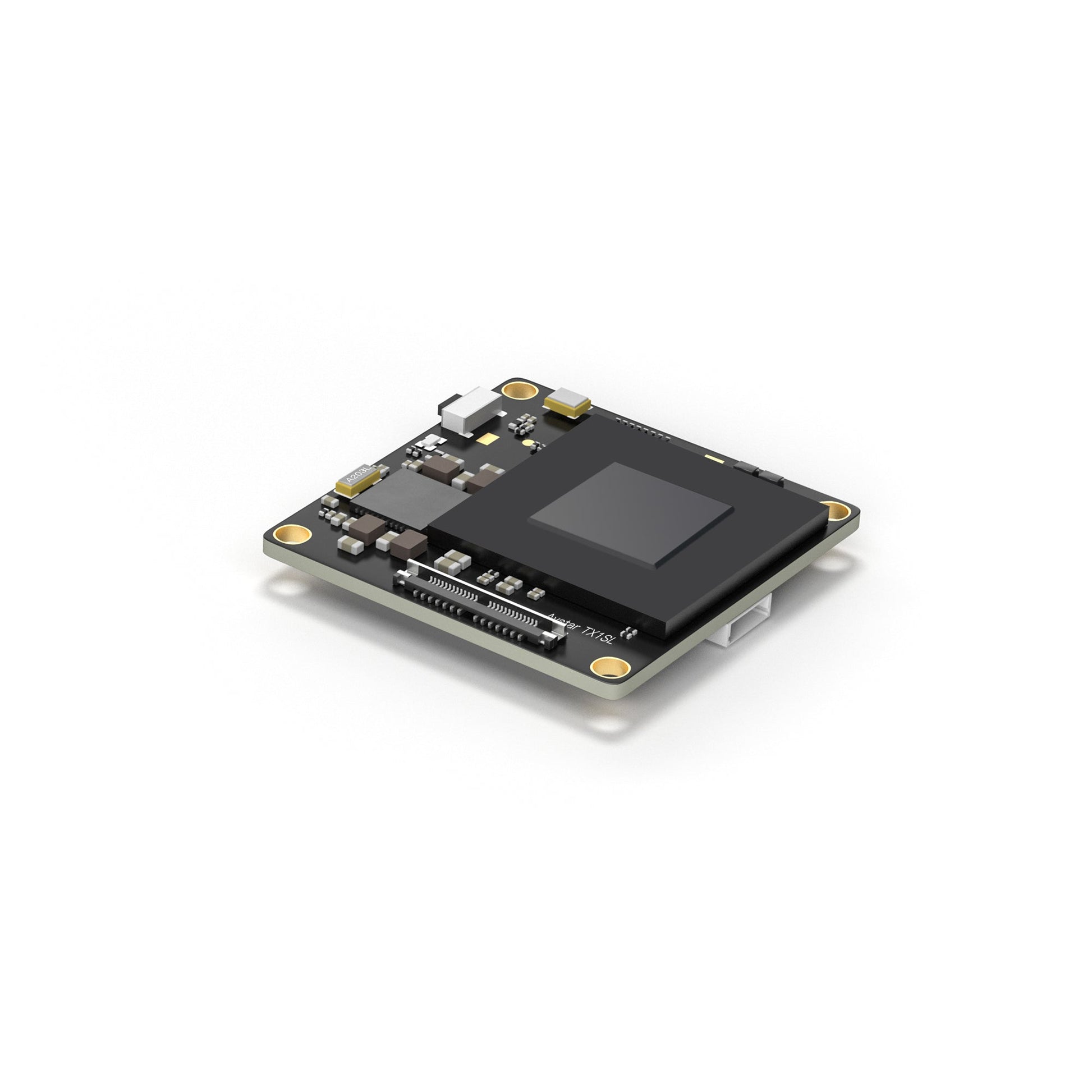

New version of VTX

Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

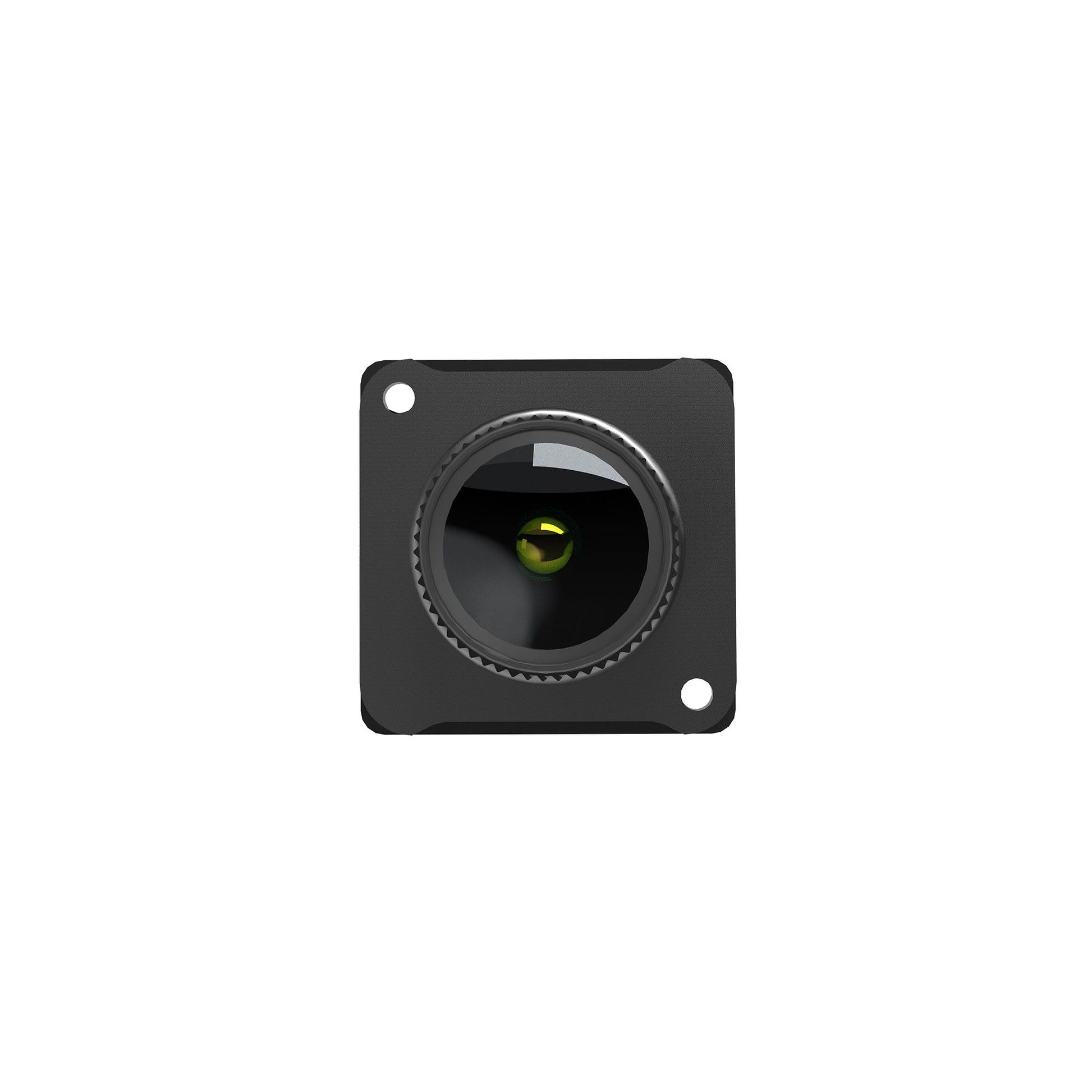

Brand new camera

Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.



High quality, low latency

Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.


8G Built-in Storage

The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.



Canvas Mode

Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.



3.1-5V input, max 350ms output

The avatar mini 1S lite kit is special designed for 65mm/75mm tiny drones, with 3.1-5V voltage input and 350mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

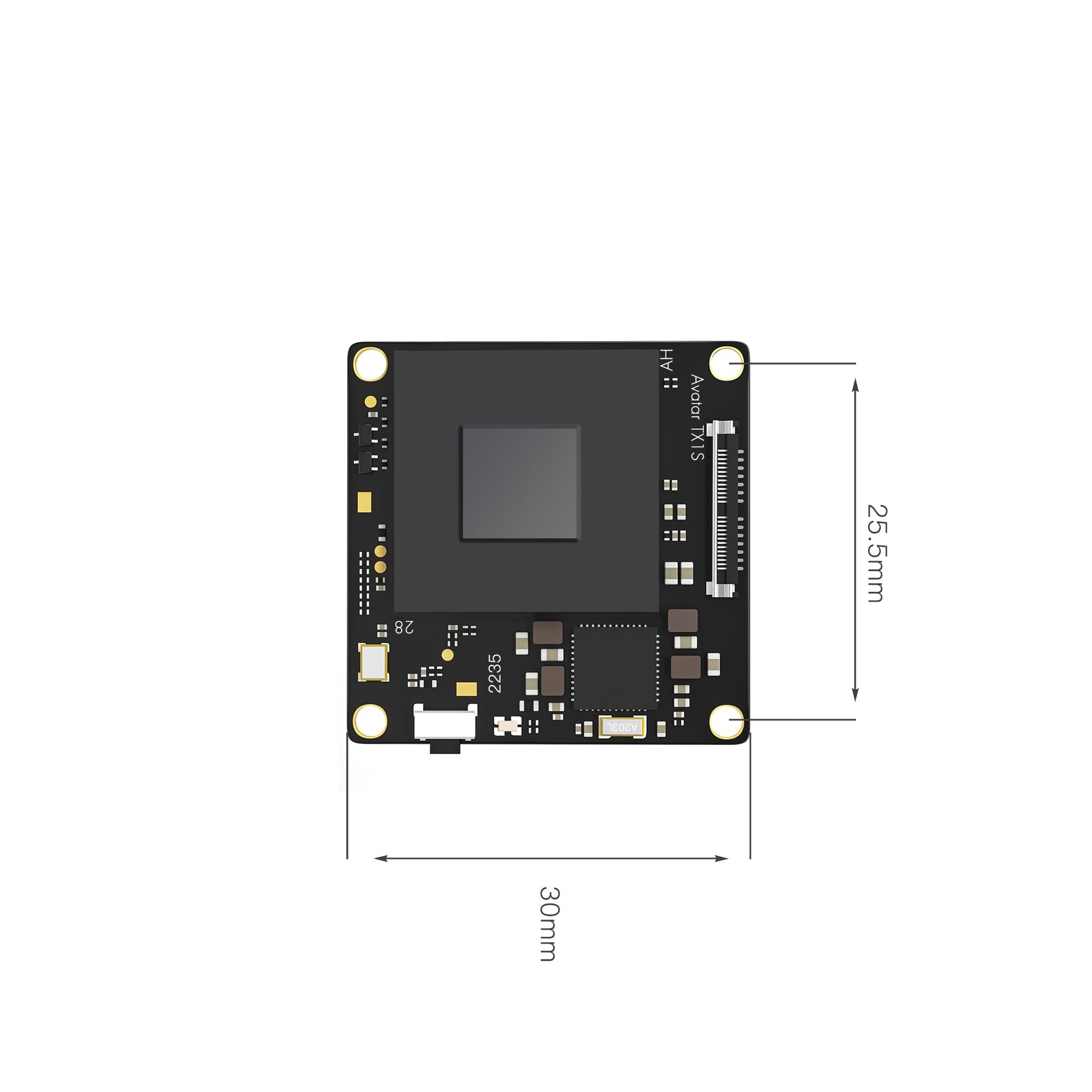

Product Size:
















































































































































































































Specification


Camera
Model Avatar lite camera
Image Sensor 1/2.7”1nch
Resolution 1080P/60fps,720P/120fps,720P/60fps
Ratio 16/9  4/3
Lens 2.1mm
FOV 170°
Aperture F2.0
Shutter Rolling Rolling shutter
Min.Illumination 0.001Lux
Weight 1.8g
Dimensions 14*14*16mm
VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G
Recording 1080p/720p
Weight 5.1g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V
Supported FC System Betaflight
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX
1s lite antenna
Polarization Linear
Frequency range 5600-5900MHz
Gain 1.6 dbi
VSWR ≤1.5
Input Impedance 50Ω
Interface IPEX-1
Size R 5mm,L 70mm
Weight 0.5g
Packing List
Avatar Mini 1S lite KIT X1
4 Pin USB Cable X1
4 Pin Power Cable X1
1.4×8mm Screws X4
1.4×10mm Screws X2
M2 Anti-vibration Rubber Dampers *6mm X4
