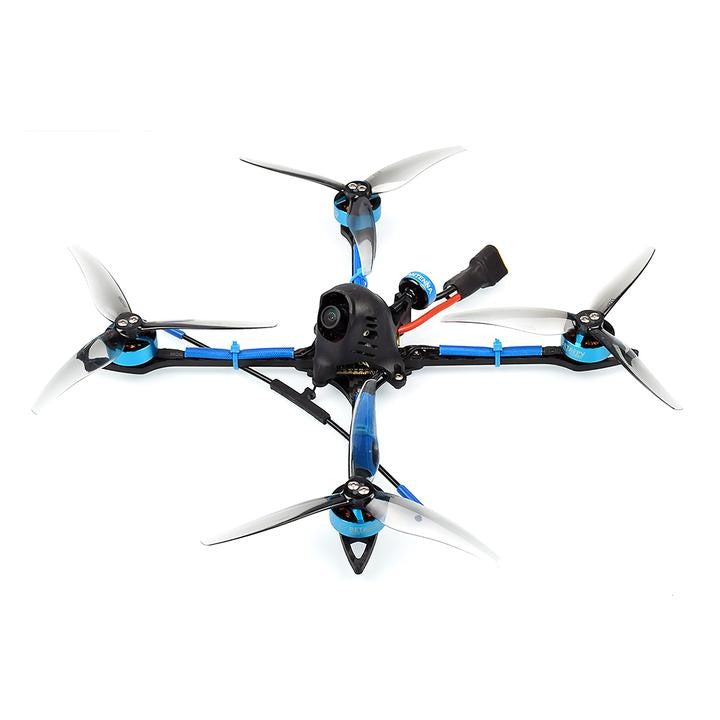

X-Knight 5'' FPV Toothpick Quad is the first Sub-250g 6S FPV racing drone on the current market! It is ultralight 144g still below 250g with the battery, perfectly meet the current requested of FAA rules, make your flight easier without limitation. Equipped with 35A AIO FC and 550mAh 6S battery(not including), this toothpick quad is sure to give you that boost and performance you are looking for!
Videos of X-Knight 5'' FPV Toothpick Quad
Bullet Point
- X-Knight 5'' Quad is the first lightweight 6S racing drone released on BETAFPV. It is ultralight only 144g, which is below 250g even with the battery, perfectly meet the current requested of FAA rules, make your flight easier without limitation.
- It is the first BETAFPV racing drone that installs the F4 35A AIO FC! This FC supports a 6S power system and up to 35A continuous currents, brings the pilots an excellent racing flight experience.
- Equipped with 1805 1550KV motors and Gemfan 5125 propellers, X-Knight 5'' offers unparalleled execution in thrust and efficient control.
- Highly recommended for the 550mAh 6S battery, it will give your drone more power and speed.
- Assembled New V2 version of 5'' frame kit, which adopts T800 carbon fiber material becomes ultimate durability while maintaining minimal weight 26.44g.
Specification
- Item:Â X-Knight 5'' FPV Toothpick Quad
- Weight: 144g (without battery)
- FC&ESC：F4 35A AIO Brushless FC
- Motors:Â 1805 1550KV Brushless Motors
- Props:Â Gemfan 5125 3-Blade props
- Camera: Caddx Baby Ratel Camera
- VTX:Â M02 5.8G VTX
- Battery:Â 550mAh 6S 75C battery
- Frame:Â X-Knight Carbon Fiber 5'' V2 Frame Kit
- Canopy:Â Canopy for Mini Camera V3
- Receiver Option: Frsky XM+  / DSMX / Futaba S-FHSS / TBS Crossfire
Flight Controller
Toothpick 35A AIO Brushless FC- The board is the first BLHeli_32 ESC 35A All-in-one toothpick FC on the current market. It can handle 35A continuous current(40A burst) and provide with massive levels of performance capability, but it still maintains ultralight only 7g. In addition, this board supports 2-6S Lipo battery, perfectly suitable for the 4''-5'' toothpick drone.
Motors
1805 1550KV Brushless Motors is a lightweight motor that is best for 6S power. It only weights 16.1g for 1pc. Best matched with the Gemfan 5125 3-Blade props, the motor is very efficient in use and has an excellent racing flight experience. Combined with Toothpick 35A AIO Brushless FC, it will provide you enough output power.
M02 5.8G VTX
M02 5.8G VTX board is a high-quality 5.8GHz VTX has 4 adjustable power including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun.
- Only weight 1.7g.
- Smart Audio function is included
- Frequency: 5.8GHz 6 bands 40 channels
Caddx Camera
The Caddx Baby Ratel has superb night vision performance in addition to an excellent daytime image with ultra-low latency. Latency is ultra-low at only 8ms. It is lighter but still maintains a high quality 1/1.18" HDR sensor, which provides up to 0.0001 Sensitivity of lux. It is very versatile in that you can switch between PAL and NTSC video and also between 4:3 and 16:9 video formats.
- Image Sensor: 1/1.8 Inch starlight HDR sensor
- Horizontal Resolution: 1200TVL
- FOV: 160 Degree
- Min. Latency: 8ms
- TV System: NTSC & PAL (changeable)
- Image: 16:9 & 4:3 (changeable)
- WDR: Super WDR (HDR)
- Min. Illumination: Starlight
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio:Â >60dB (AGC OFF)
- Video Output: CVBS
- Camera OSD: Separate OSD
- DNR: 3-DNR
X-Knight Carbon Fiber 5'' Frame V2 Kit
Our first assembled 5'' frame kit, which adopts T800 carbon material becomes ultimate durability while maintaining minimal weight 26.44g. It consists of arms, bottom plate and top plate, which allows you to replace the damaged part. Meanwhile, the top plate comes with press nuts to make the installation process easier.
Recommended Battery
550mAh 6S 75C battery with XT60U connector is the best option to power the X-Knight 5Inch quad. With a 6S(22.2V) high voltage and 75C discharge rate, it gives the drone a stronger flight performance for short bursts.
Injection Molded Canopy
Mini V3 canopy specially designed for a 19-20mm camera, which adopts the injection molded process and PE material. This durable canopy will perfectly protect your camera.
Package
- 1 * X-Knight 5'' FPV Toothpick Quad
- 1 *Â Gemfan 5125 3-Blade Props
- 1 * Set of M2*8 Titanium Alloy Screws
*Battery is NOT included. 4
