XING X2806.5 1800KV FPV NextGen Motor

The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.

Features:

*High-strength 4mm Titanium alloy shaft

*Unibell design

* 7075 aluminum Bell and Base

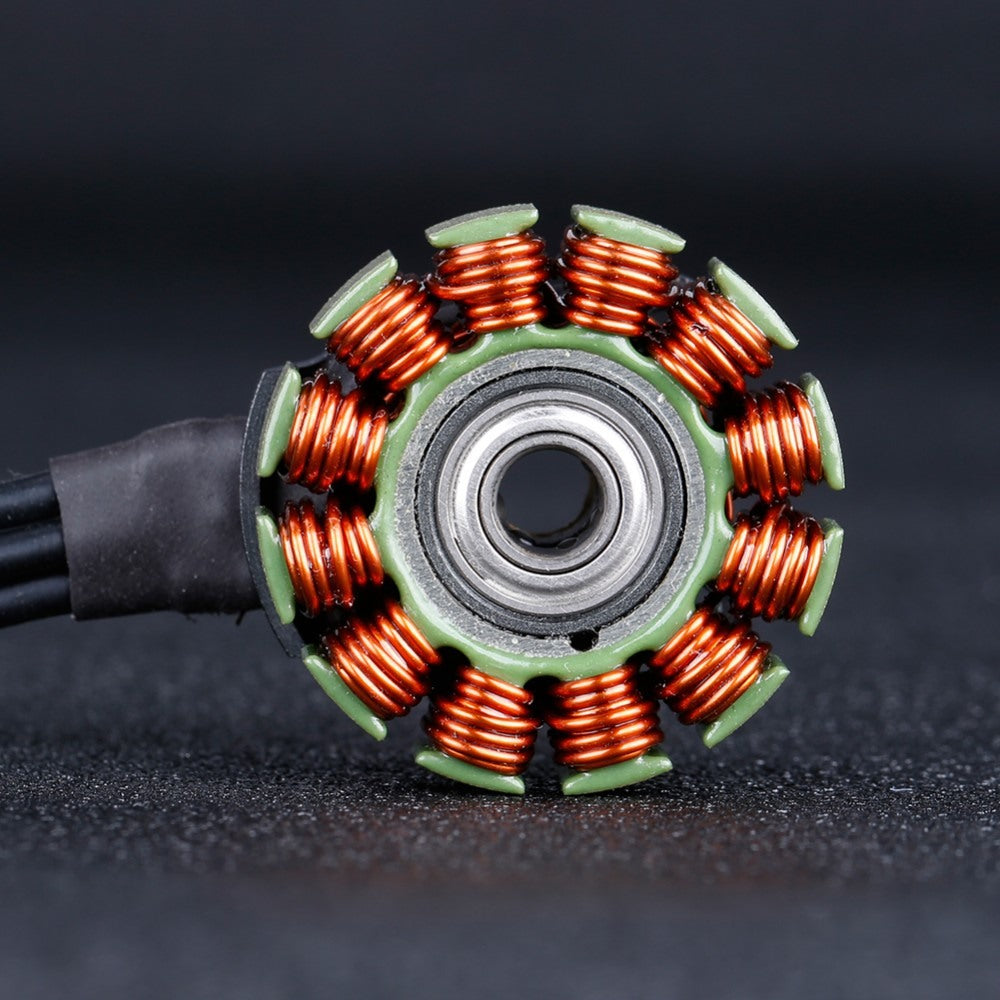

*Electromagnetically matched magnets and stator

*Japanese NSK 11*5*5 bearings

*N52H Arc curve  magnets

*Motor wires protected

*Hex bolt shaft set screw

*Dynamically balanced

Specification:

-Voltage: 2-6S

-KV Option: 1300/1800

-Configuration: 12N14P

-Bearing: NSK/11*5*5

-Stator Diameter: 28

-Stator Length: 6.5mm

-Shaft Diameter: M5

-No.of Cells(Lipo): 2-6S

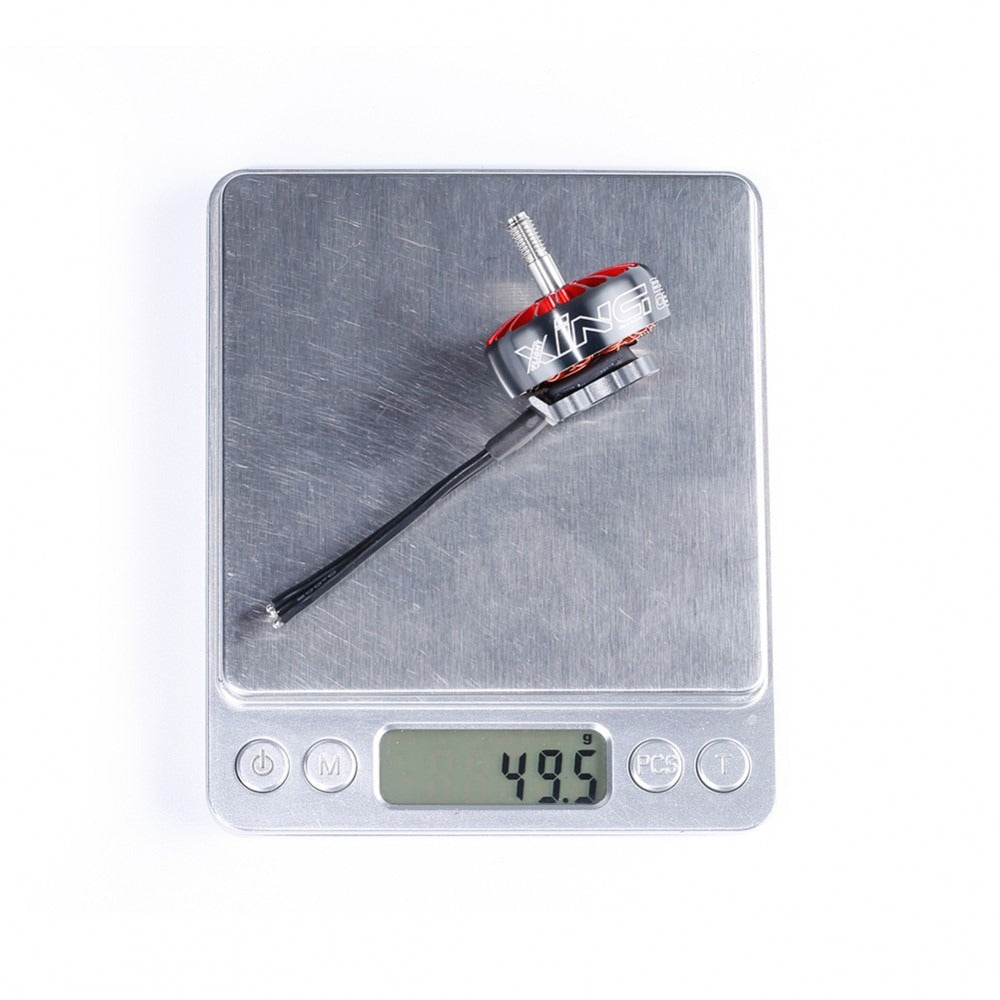

-Weight: 49.5g(with a short cable)

-Motor mount hole: 19*19 φ3mm

Package included:

1pc x X2806.5 motor

1pc x M5 Screw nut

4pc x m3*8 screws
