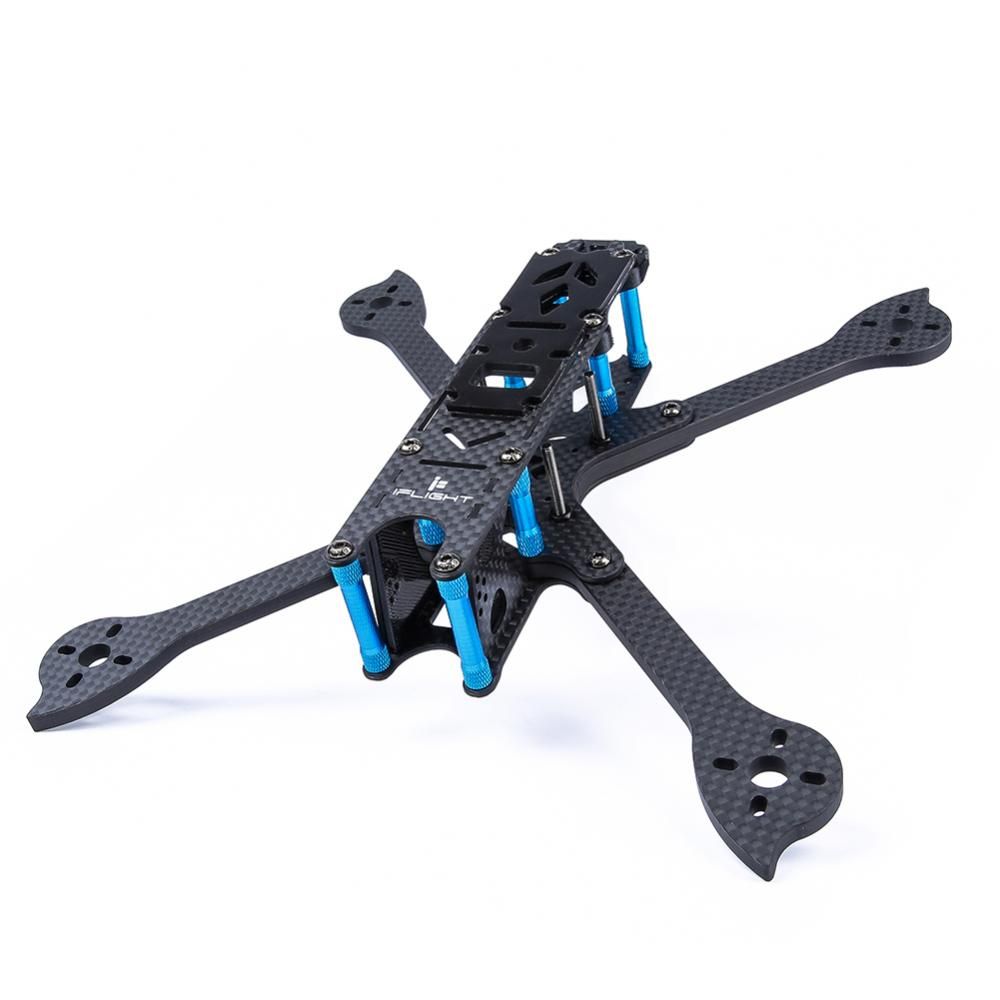

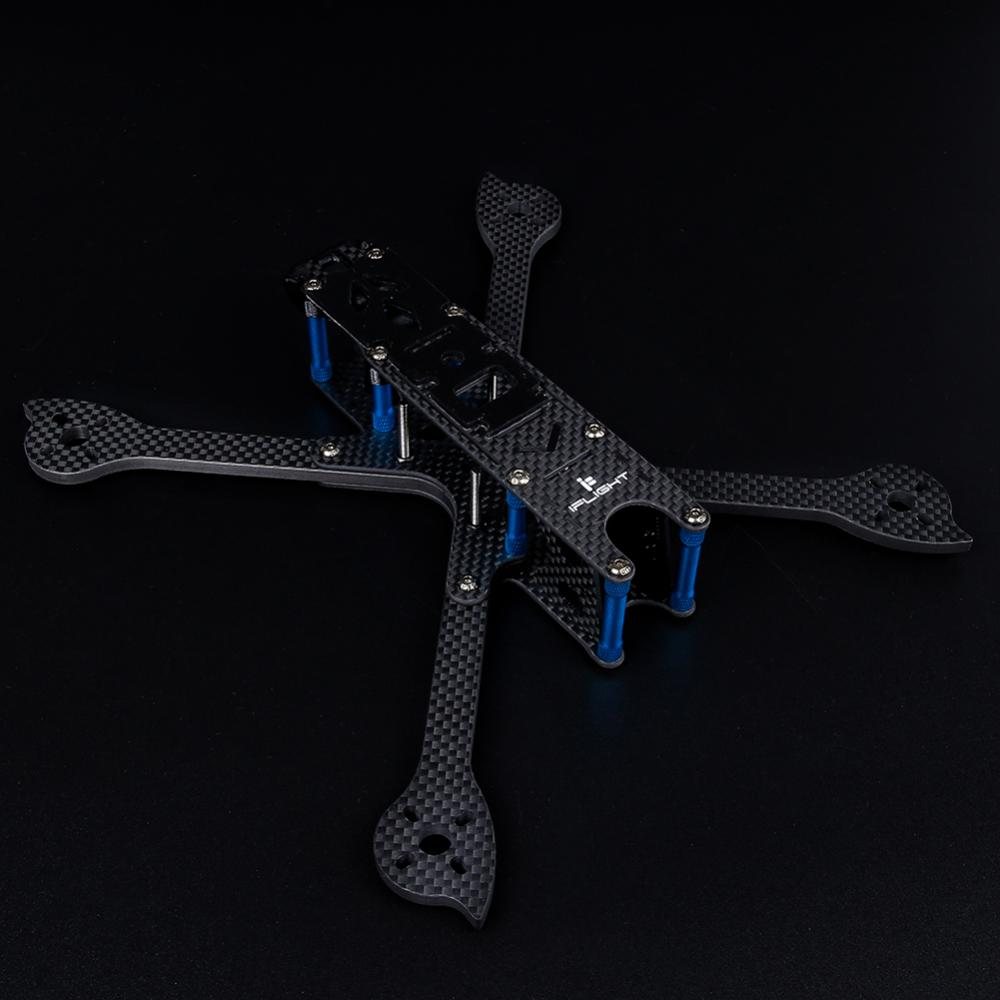

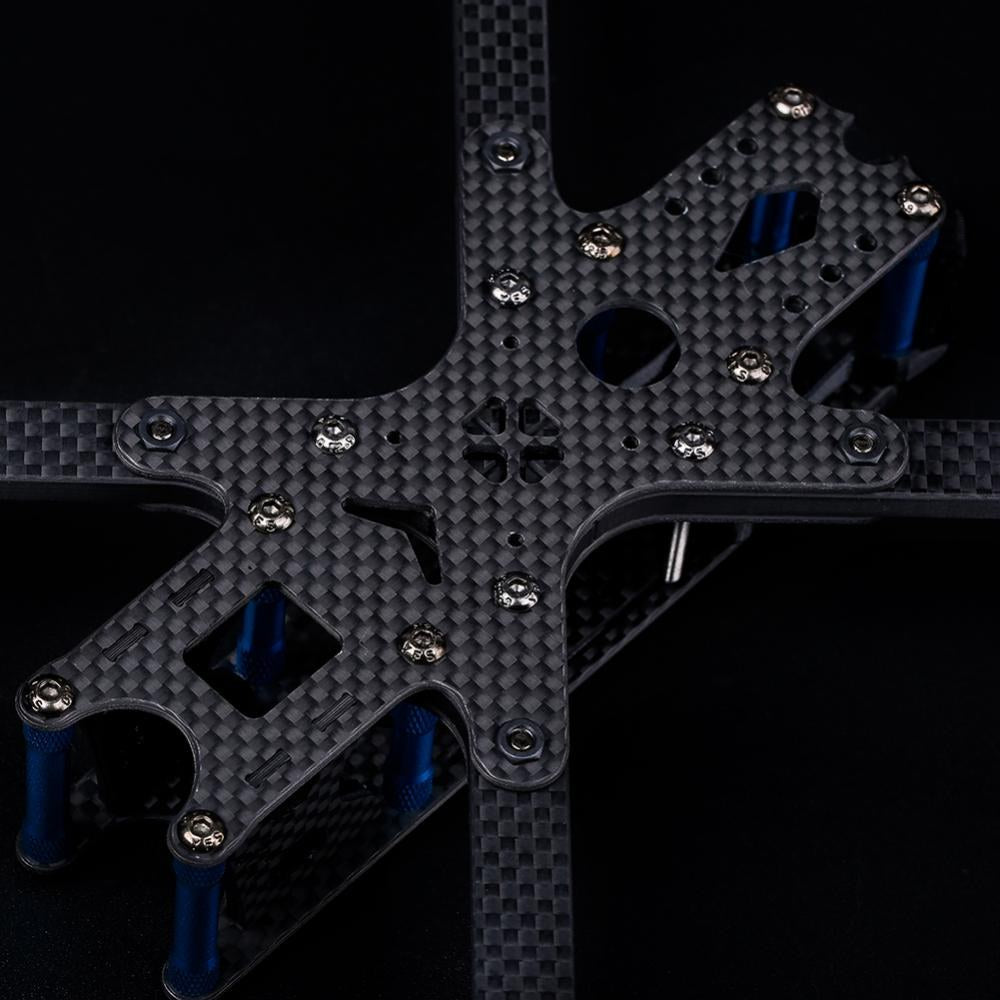

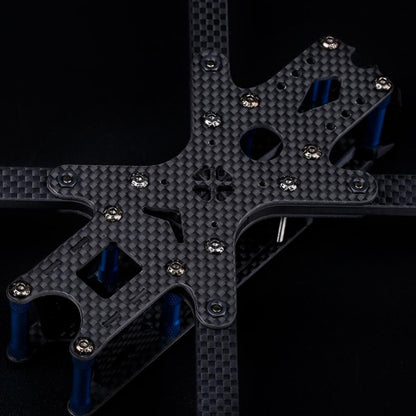

XL5 V4 True X FPV Racing Frame

iFlightRC is privileged to announce the release of the XL series V4  Frames, the XL series V4  frames are the achievement of Team iFlight Pilots, customers experience in FPV and the advancements of flight technology and improvement to onboard electronics. In the past few years, so many electronics advances make the XL frames to be updated again. In order to keep things compact, light and simple to be assembled. We kept 2 options for the flystack mounting(20*20mm & 30.5*30.5mm) to ensure the perfect fit for any and all of your flight hardware. Kept the arms swaps much more easily.

The main advantages of the XL series V4  are in the flight performance, the stronger and thicker arms. The XL series V4 frames fly balanced because of the true X configuration and wide stance. This main changings makes flight stability in the air.

Main Features:

-Full 3K Carbon Fiber airframe

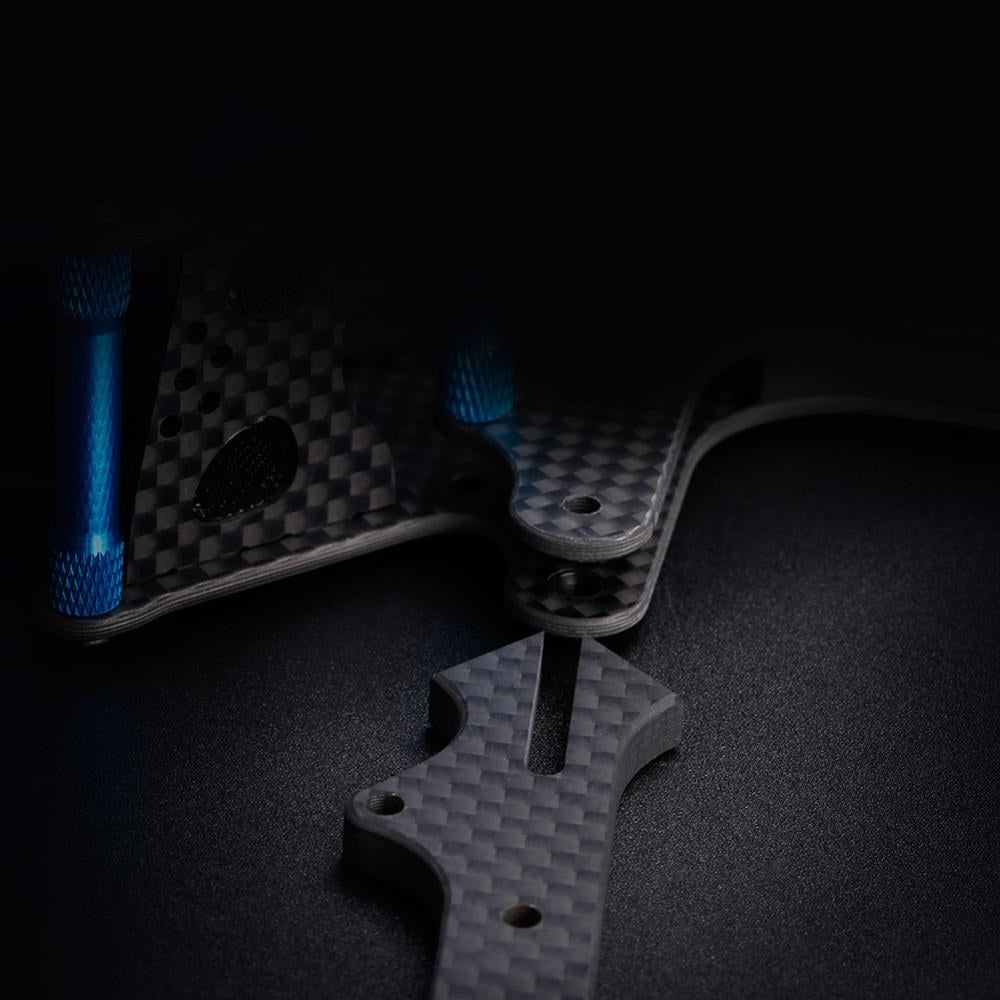

-Easy arm swaps

-5" version fits popular 5.1" style propellers

-Popular True-X configuration

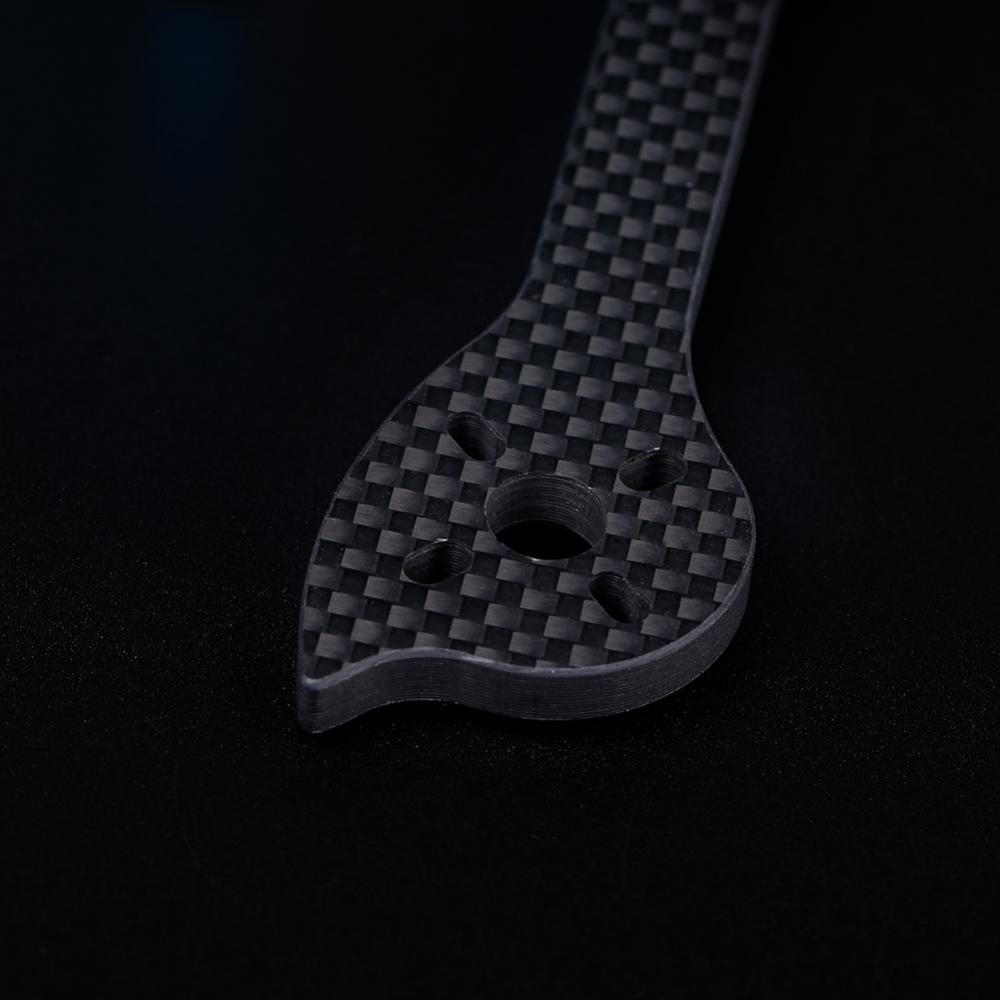

-The motor guard on the end of the arms to protect the motor during a crash

-Fits both 30.5x30.5 and 20x20 stacks

Specifications:

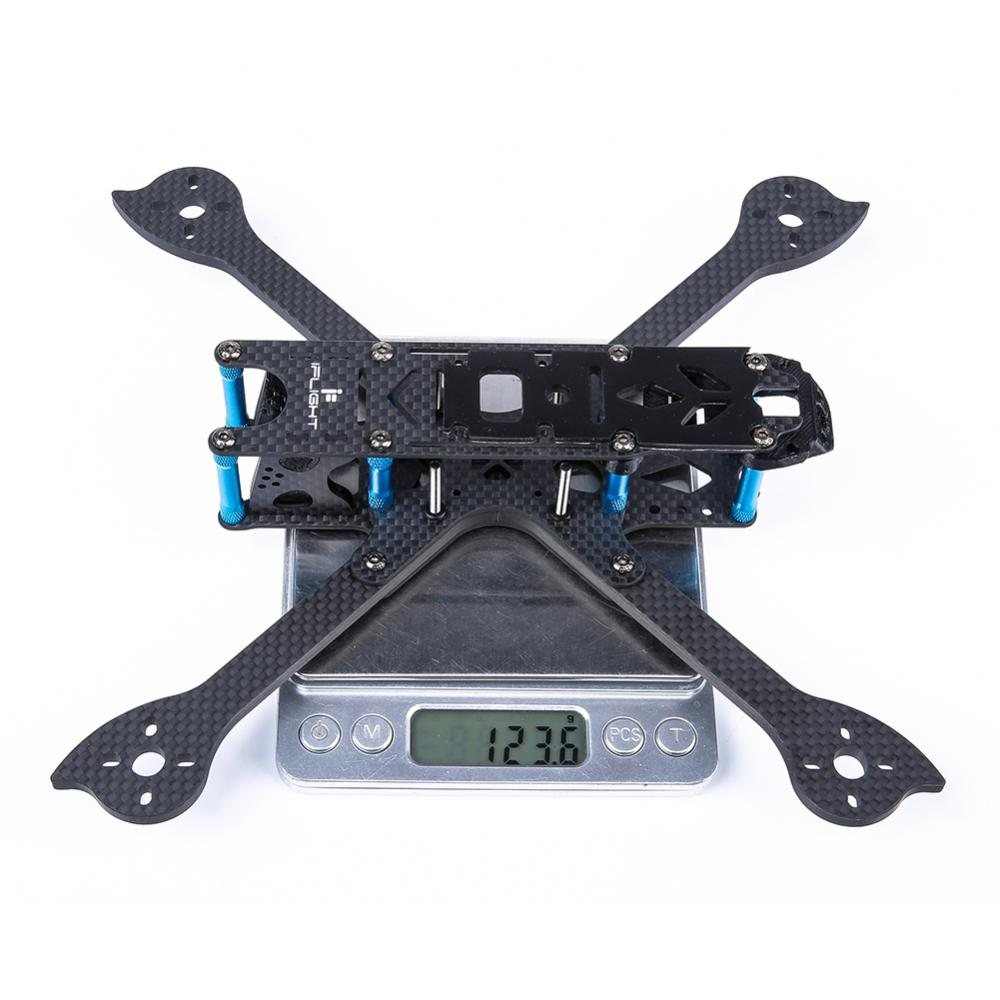

- Frame weight:108.5g approx

- Wheelbase: 227mm

- Body dimension: 160x160mm

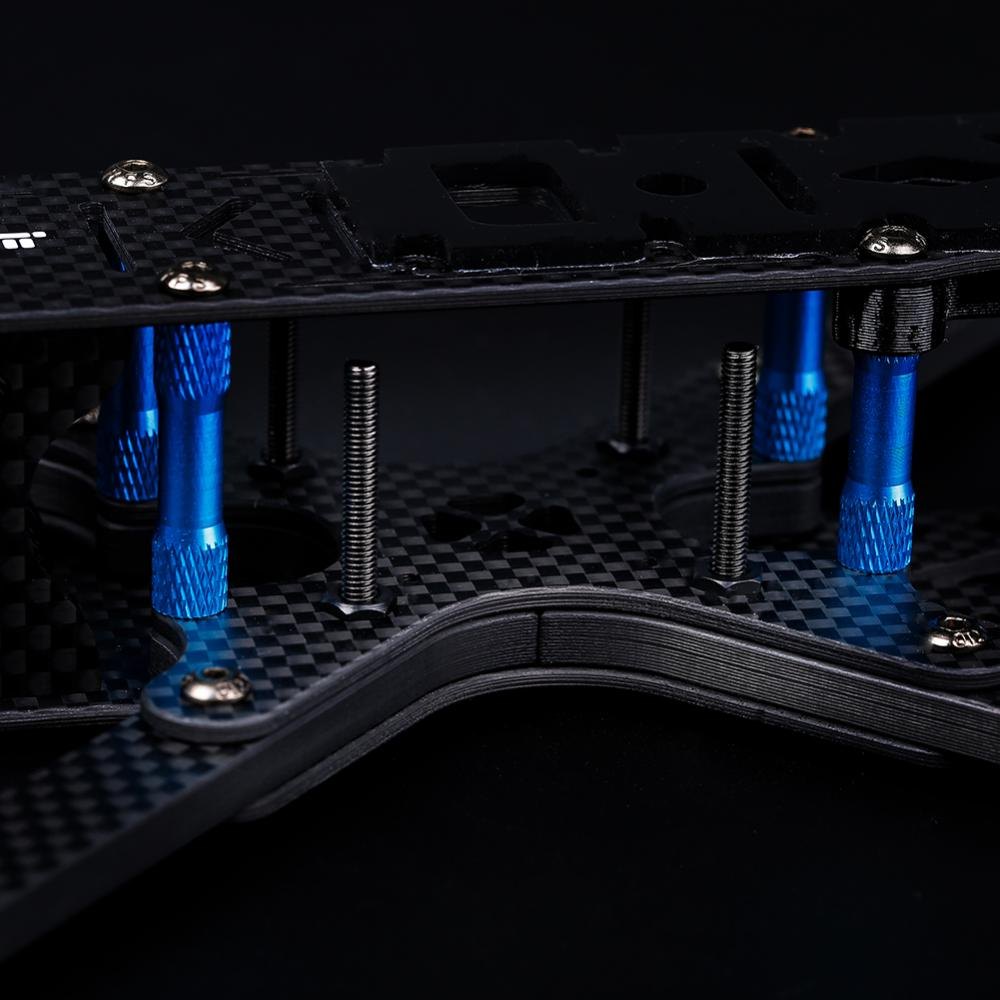

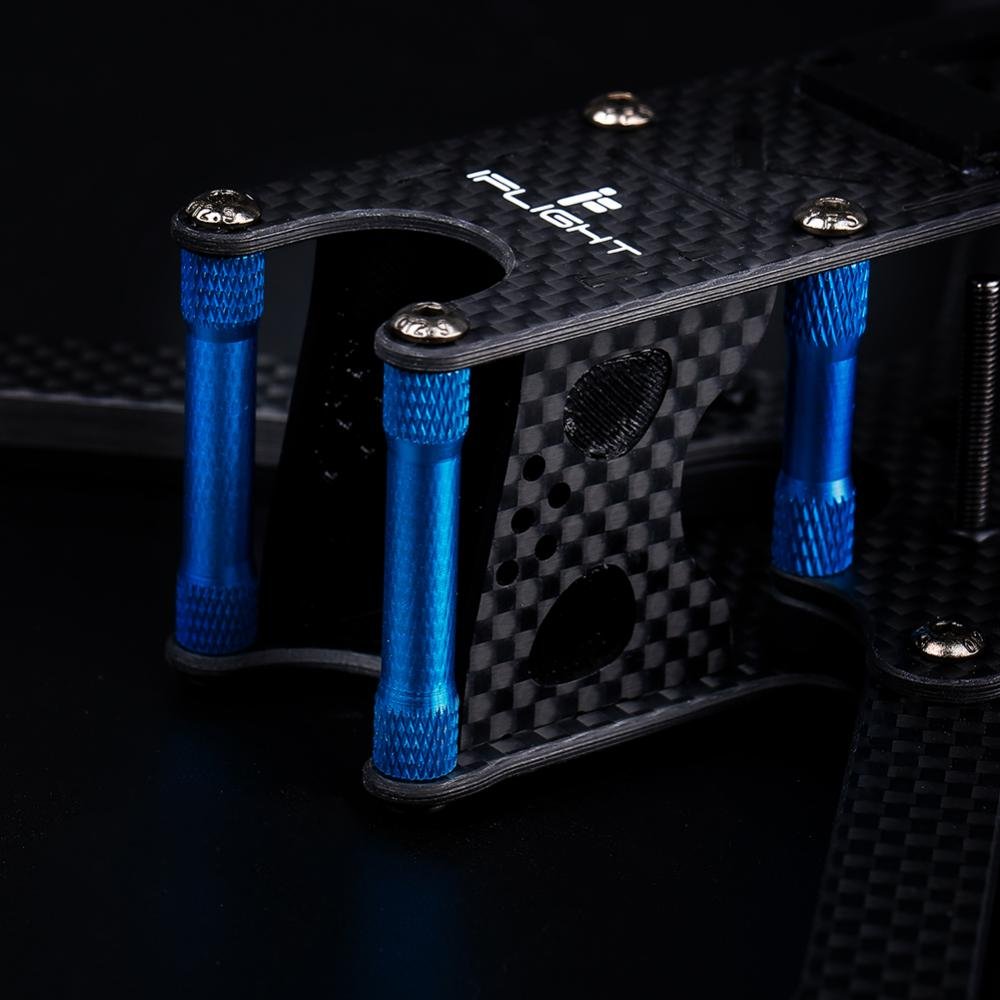

- Standoff Height: 25mm (4pcs), 32mm(4pcs)

- 5mm arms, 1.5mm vertical side plates

- 2mm top, upper & bottom plate

- Mounting Holes: 30.5*30.5mm, 20*20mm

Recommended parts (not included):

Flight controller (30.5*30.5mm, 20*20mm):

SucceX F7 TwinG V2.1

SucceX F4 TwinG V2.1

Flight stack without VTX 30.5*30.5

SucceX F7 V2.1 TwinG  + 60A V2 Plus ESC

SucceX F4 V2.1 TwinG +50A ESC

SucceX Flytower system with VTX: (20*20MM)

SucceX Mini  F4 V3 TwinG

SucceX Mini  F7 V3 TwinG

Motor:

XING-E 2207 2208 2306

XING 2206 2207 2208 2308:

X2206, X2207, X2208, X2306

XING CAMO 2207 2208 2306

Propeller: 5~5.1 inch

Camera: 22mm &19mm width

VTX: 500mW

Battery: 4S Lipo batteries

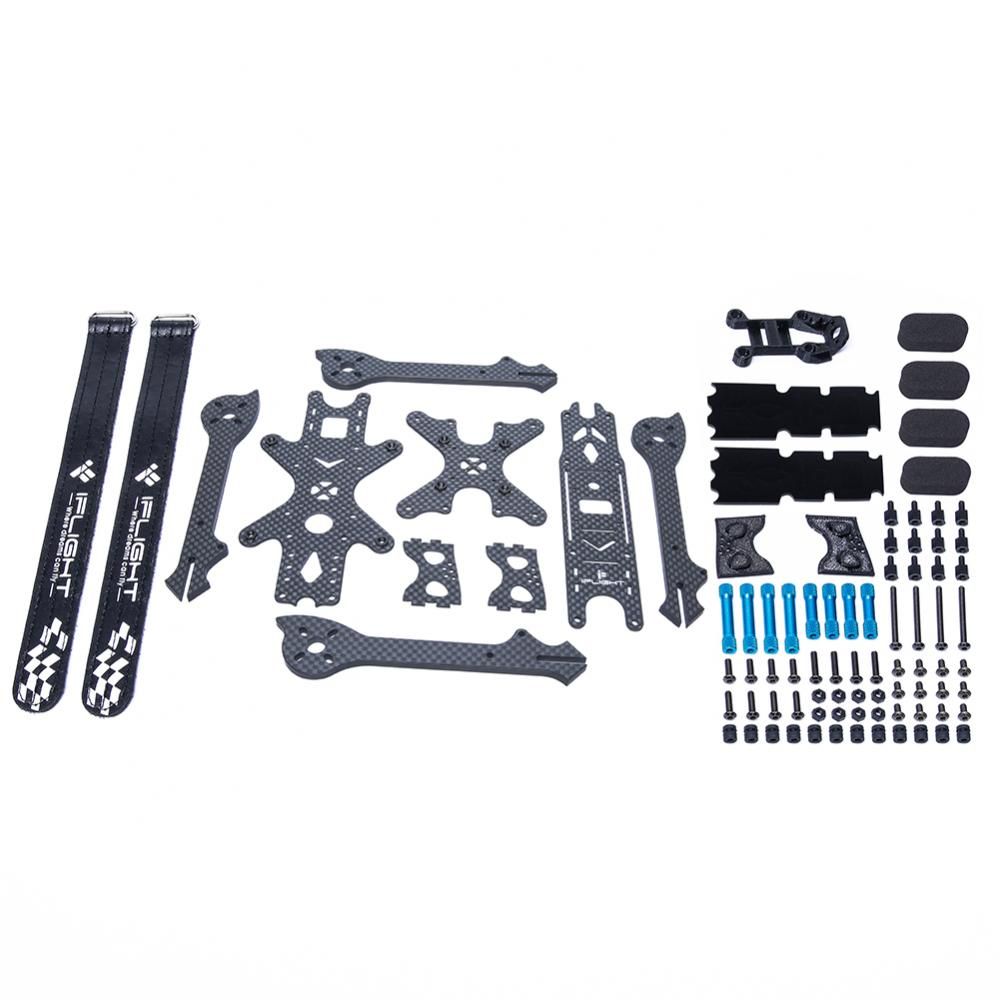

Package included:

1set x XL5 V4 frame

1pack x screws

1set x TPU Camera mount adapters

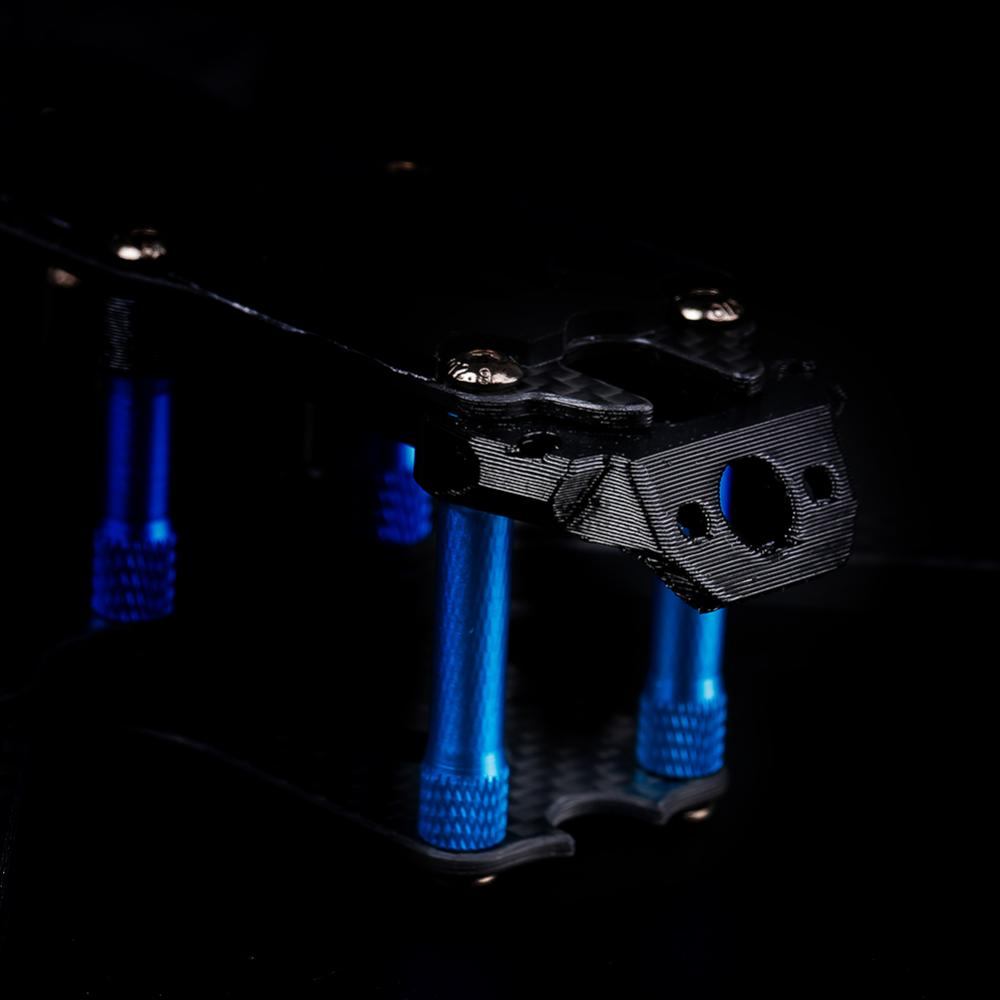

1pc x TPU VTX antenna mount

2pcs x battery anti-slip mat

2pcs x battery straps
