JHE20B Quad Finder LED Buzzer Beacon w- Internal Battery

The JHE20B Finder is compatible with all BF and CF flight controls. Just connect to the buzzer interface of the flight controller and it will work.

Check out the rest of our Buzzers & Alarms while you're here!

When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE20B Finder. Tthe red LED will light to indicate that charging is in progress, Red LED off means charging is saturated; red light flashing means flight controller is powered off, wait 30 seconds waiting time. The buzzer has two modes of operation:

1. It is compatible with the functions of the traditional active buzzer and synchronized with the flight control.

2. When the flight control is normally connected, if the main battery in the flight is powered off, it can still automatically emit 100 dB of drip sound after 30 seconds of power failure, and the LED will emit white light.

How to turn off the buzzer:

Press and hold the release button for more than 2 seconds, the JHE20B Finder turns off the sound.

Features

• 100db audible alarm
• LED Beacon

Specifications

• Size: 22x12x9.5mm

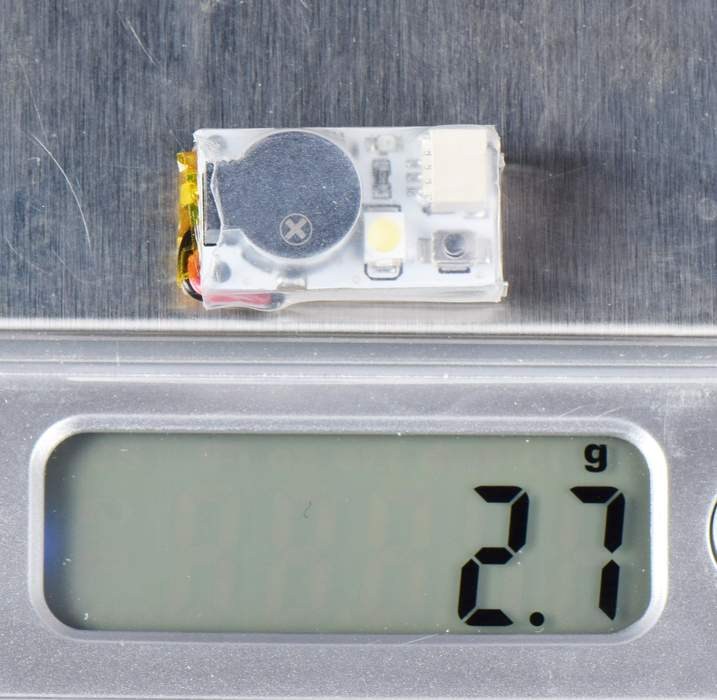

• Weight: 2.7 g

Includes

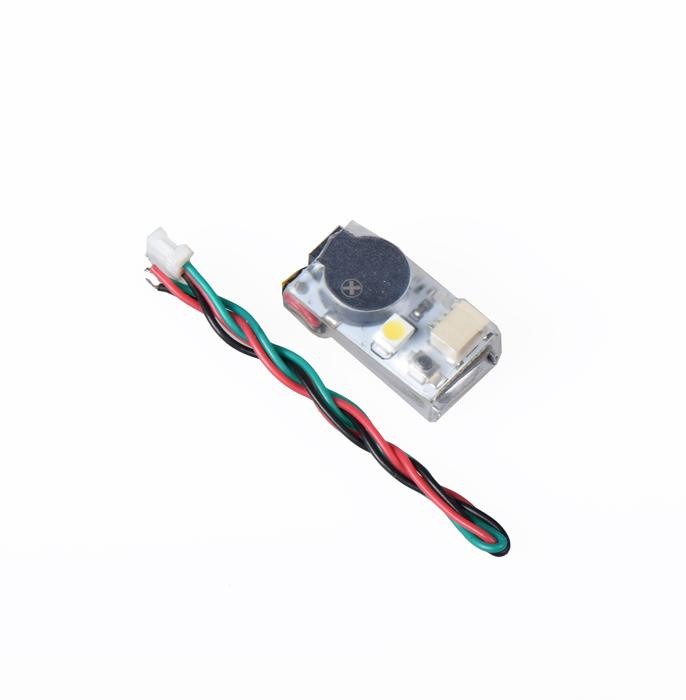

• 1x JHE20B Finder
• 1x Wire Set
