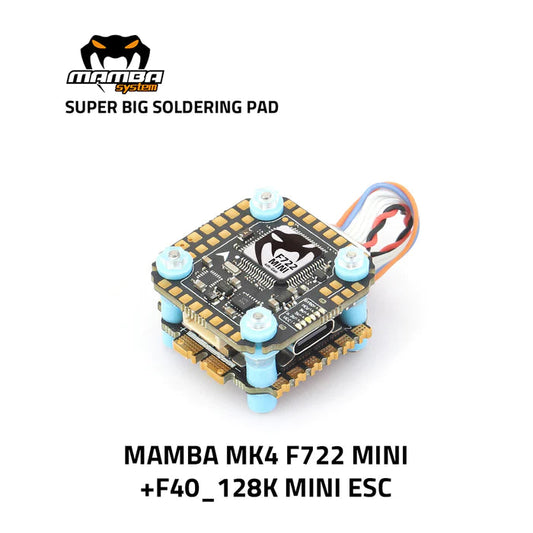

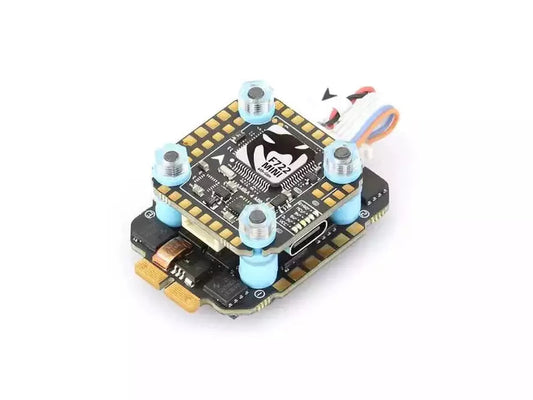

Diatone Mamba Stack MK4 F722 Mini F7 Flight Controller + F40 128K 3-6S 40A ESC 20x20mm

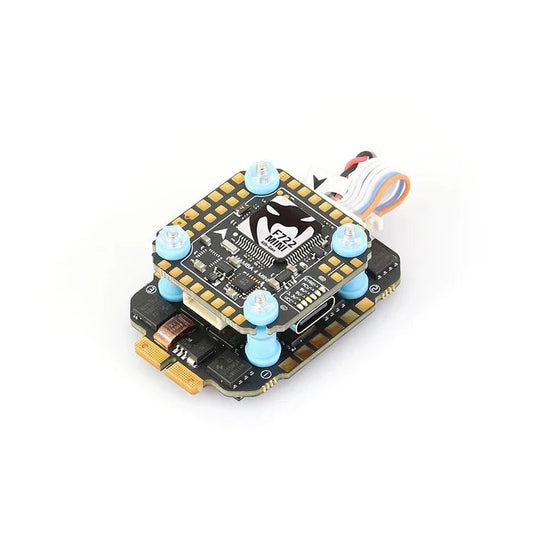

Diatone Mamba Stack MK4 F722 Mini F7 Flight Controller + F55 128K 3-6S 55A ESC 20x20mm

Diatone's Mamba MK4 (fourth generation) stack is a redesign of its already fantastic line of flight controllers and ESCs. Improvements include making the products easier to use by increasing soldering pad sizes by 30%, pad spacing by 100%, adding USB-C, additional UARTS and I2C,...

Some Mamba MerchSize：30*19*9.5mm

The Mamba Toka 1202 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between three KVs to best fit your FPV needs: 6500KV, 8500KV, or 10000KV.SpecificationsKV:6500...

MAMBA TOKA 1408 2900KV Racing motorSpecifications:  Overall Dimension:Φ20.6×18.5mm prop mounting shaft diameter:1.5mm Installation hole position:12×12mm，M2 Prop: 3inch~4inch Bearing：5*2*2.5 Shaft Diameter:2.0mm Lead Wire Size：24AWG×150mm slots/poles:9N12P Magnet Wire: 240℃ Enameled Wire Stator Diamter：14mm Stator Height:8mm Rated Voltage:4~6S (16.8V~25.2V) Peak Current: 15.75A ldle Current：10V/0.4~1.0A Maximum Power: 376.3W...

MAMBA TOKA 1408 4100KV Racing motorSpecifications:  Overall Dimension:Φ20.6×18.5mm prop mounting shaft diameter:1.5mm Installation hole position:12×12mm，M2 Prop: 3inch~4inch Bearing：5*2*2.5 Shaft Diameter:2.0mm Lead Wire Size：24AWG×150mm slots/poles:9N12P Magnet Wire: 240℃ Enameled Wire Stator Diamter：14mm Stator Height:8mm Rated Voltage:4~6S (16.8V~25.2V) Peak Current: 15.75A ldle Current：10V/0.4~1.0A Maximum Power: 376.3W...

Specifications: Overall Dimension:Φ22.2×15mm Shaft Diameter:1.5mm Installation hole position :12×12mm，M2 Prop: 3inch~4inch Bearing： 5*2*2.5 Diameter:2mm Lead Wire Size：24AWG ×150mm Configuration:9N12P Magnet Wire: Class H，220℃ Enameled Wire Stator Diamter：16mm Stator Height:6mm Rated Voltage: 3~6S (12.6V~25.2V) Peak Current: 17.6A ldle Current：10V/0.5A Maximum Power: 409W Internal Resistance：164Ω

Specifications: Overall Dimension:Φ22.2×15mm Shaft Diameter:1.5mm Installation hole position :12×12mm，M2 Prop: 3inch~4inch Bearing： 5*2*2.5 Diameter:2mm Lead Wire Size：24AWG ×150mm Configuration:9N12P Magnet Wire: Class H，220℃ Enameled Wire Stator Diamter：16mm Stator Height:6mm Rated Voltage: 3~4S (12.6V~16.8.2V) Peak Current: 17.6A ldle Current：10V/0.5A Maximum Power: 409W Internal Resistance：164Ω

A powerful motor, great for smaller micro builds and also toothpick 5" builds.Specifications Overall Dimension: Φ26.2×15.3mm prop mounting shaft diameter: 1.5mm Installation hole position: 12×12mm，M2 Prop: 3.5inch~5inch Bearing：7x3x3 Shaft Diameter: 3.0mm Lead Wire Size：24AWG×150mm slots/poles: 12N14P Magnet Wire: 240℃ Enameled Wire Stator Diamter：20mm Stator...

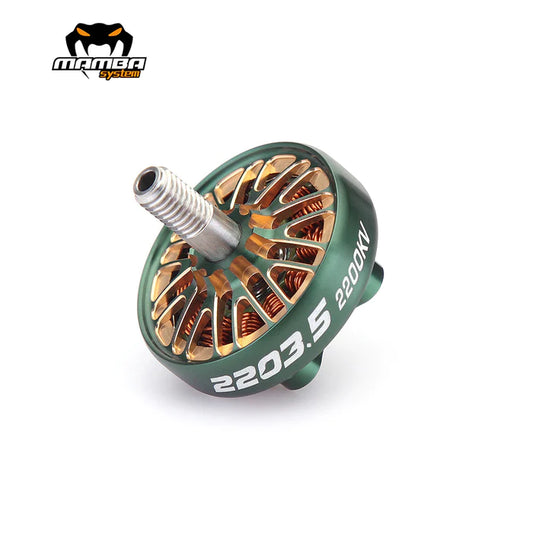

Mamba Toka 2203.5 2200KV Racing Motor GreenMAMBA TOKA 2203.5 2200KV MotorOverall Dimension:Φ28.9×29.4mmprop mounting shaft diameter:5mmInstallation hole position:16×16mm，M3Prop: 4 inchBearing：9*4*4Shaft Diameter:4.0mmLead Wire Size：24AWG×190mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：22mmStator Height:3.5mmRated Voltage:4~6S (16.8V~25.2V)Peak Current:19.43Aldle Current：1.0AMaximum Power: 466.5WInternal Resistance：160mΩ

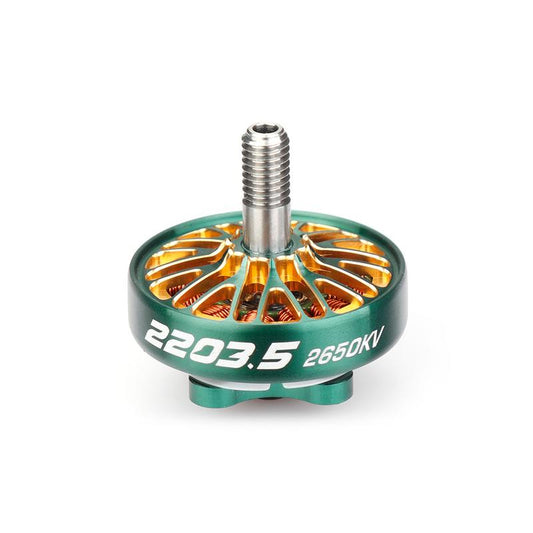

MAMBA TOKA 2203.5 2650KV Racing Motor GreenOverall Dimension:Φ28.9×29.4mmprop mounting shaft diameter:5mmInstallation hole position:16×16mm，M3Prop:  5inch                                                              Bearing：9*4*4                                              Shaft Diameter:4.0mmLead Wire Size：24AWG×190mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：22mmStator Height:3.5mmPated Voltage:3~4S (12.6V~16.8V)                                             Peak Current: 27.64Aldle Current：10V/0.9~1.9A                                                                Maximum Power: 441.24WInternal Resistance：120Ω

Mamba Toka 2203.5 3300KV Racing Motor GreenOverall Dimension:Φ28.9×29.4mmProp mounting shaft diameter:5mmInstallation hole position:16×16mm，M3Prop:  3.5inch                                                              Bearing：9*4*4                                              Shaft Diameter:4.0mmLead Wire Size：24AWG×190mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：22mmStator Height:3.5mmRated Voltage:3~4S (12.6V~16.8V)                                             Peak Current: 29.78Aldle Current：10V/1.5~2.2A                                                                Maximum Power: 475.1WInternal Resistance：80mΩ

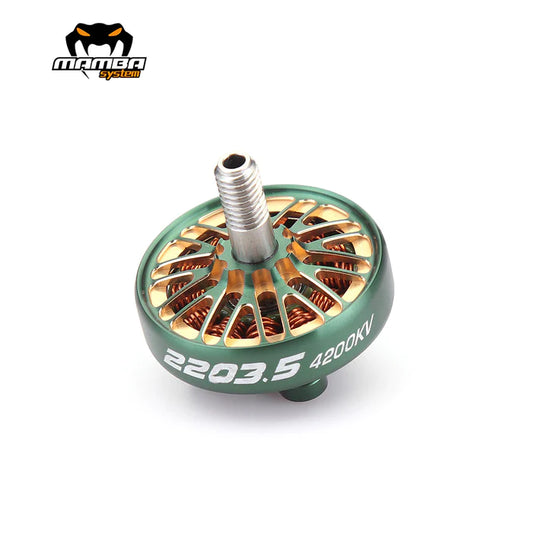

Mamba Toka 2203.5 4200KV Racing Motor GreenMamba Toka 2203.5 4200KV MotorOverall Dimension:Φ28.9×29.4mmprop mounting shaft diameter:5mmInstallation hole position:16×16mm，M3Prop: 3.5inchBearing：9*4*4Shaft Diameter:4.0mmLead Wire Size：24AWG×190mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：22mmStator Height:3.5mmRated Voltage:3~4S (12.6V~16.8V)Peak Current: 35.21Aldle Current：2.2AMaximum Power: 567.23WInternal Resistance：65mΩ

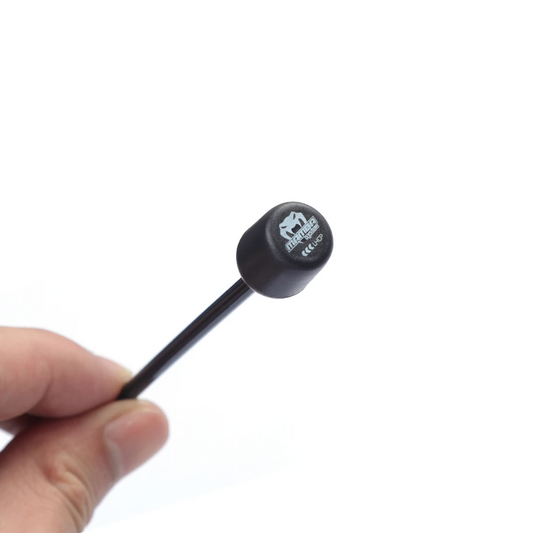

Mamba Ultras 5.8G Antenna - LHCPSpecifications: Frequency range（MHz）：5500-6000 Polarization：LHCP Gain（dBi）：2.5 VSWR（5800MHZ）：≤1.5 Input connector type：IPEX(UFL) Material: ABS Colour: Black Operating temperature（°c）:-40～60 Rated Wind Velocity（m/s）:60 UFL(ipex)/LHCP/Bla/Length:the pipe 90mm/ the outside wire 45mm  DJI Package Includes: 1 x Mamba Ultras 5.8G Antenna - LHCP

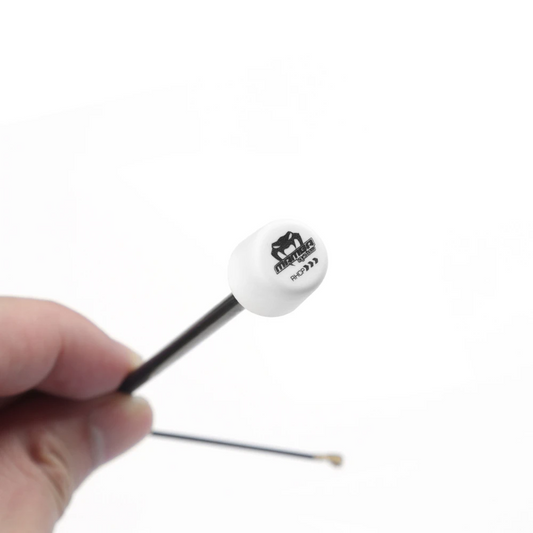

Mamba Ultras 5.8G Antenna - RHCPSpecifications: Frequency range（MHz）：5500-6000 Polarization：RHCP Gain（dBi）：2.5 VSWR（5800MHZ）：≤1.5 Input connector type：IPEX(UFL) material: ABS color: White Operating temperature（°c）:-40～60 Rated Wind Velocity（m/s）:60 UFL(ipex)/RHCPLength: the pipe 90mm/ the outside wire 45mm Package Includes: 1 x Mamba Ultras 5.8G Antenna - RHCP

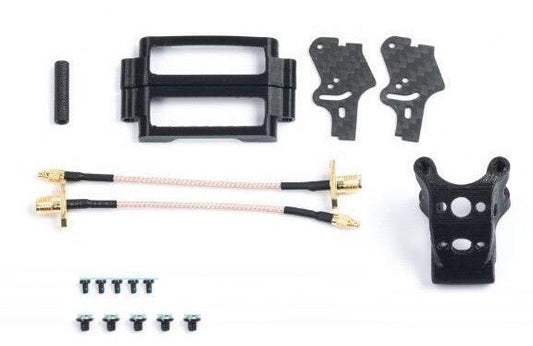

Description:This DJI Accessories Set is made for the Diatone MX-C Taycan Frame and includes the following:includes:-DJI Antenna Mounting *1 pcs-DJI Air Unit Mounting * 2pcs-MMCX to SMA feeder* 2pcs-M3*3 Iron Cup head Hex Socket Screw*2 pcsWeight: 15g

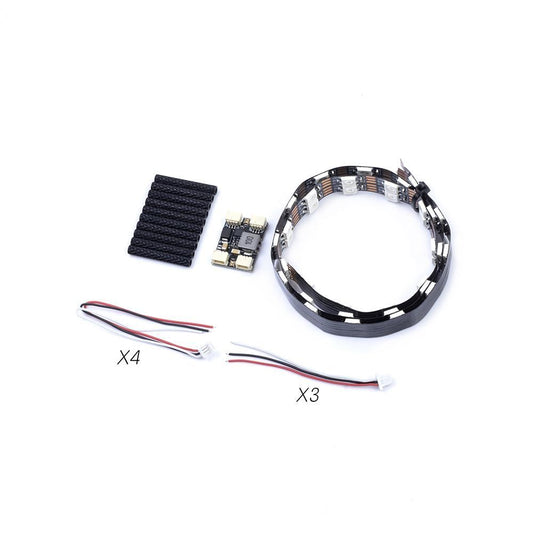

  SKU DT-FK19-MXC3-LED Name MX-C frame guard ring  - Led Product Size 85.4*29.5mm Weight Describtion kit List:Transparent duct *4LED power conversion board *1LED lamp belt *4Led Cable *7Double-sided tape *42*24mm black aluminum column *8

Roma F35 3.5inchFrame Specification:Wheelbase: 158mmWeight: 70gProp Siza: 3.5inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate:3mmArm ：3mmRated Volitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K Roma F35 Vista HD 4S Camera: DJI Camera Antenna: MAMBA ULTRA LHCPVTX: CADDX VISTAFC: MAMBA DJI F722 MINI MK2ESC: MAMBA F40BLS_MINIMotor: MAMBA TOKA 2203.5 4200 KVAccessories:GF 3520 propeller *1Buzzer *1Battery belt *2M2 screw accessory...

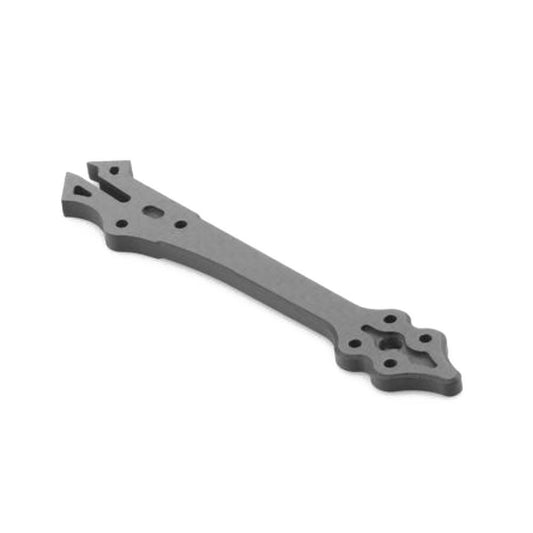

A spare or replacement 5" Arm for the Diatone Roma F5 V2 Analog Specifications Size:128×23mm Thickness：5mm Mterial：T300/3K Includes1 x Roma F5 5" V2 Arm - Analog
