FC SpecificationsMCU: 216MHz STM32F722RET6 32BITIMU: MPU6000Baro: NoOSD: BF OSDBlacbox: 16M Flash MemoryUarts: 6SetESC Soft: Dshot300/600/1200ESC Telemetry: RX2LED: Blue&Orange for FC Status,,White 5V,Red 3.3VWS2812 LED Control: BF LED ControlSmartaudio: YesRSSI: YesBuzz: YesInput: 2~6S Lipo (8.4~25V)VTS Protection: YesBEC: 5V 2A (Max 3A)ESC SpecificationsINPUT VOLTAGE: 2~6S Lipo (7.4V~25V)CONTINUE...

FC SpecificationsMCU: 216MHz STM32F722RET6 32BITIMU: MPU6000Baro: NoOSD: BF OSDBlacbox: 16M Flash MemoryUarts: 6SetESC Soft: Dshot300/600/1200ESC Telemetry: RX6LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3VController: 4 Set 2812 LEDBluetooth: SpeedyBee APPSmartaudio: YesRSSI: YesBuzz: YesInput: 3~6S Lipo (12.6~25V)VTS Protection: YesBEC: 5V 2A & 9V 2A (Max...

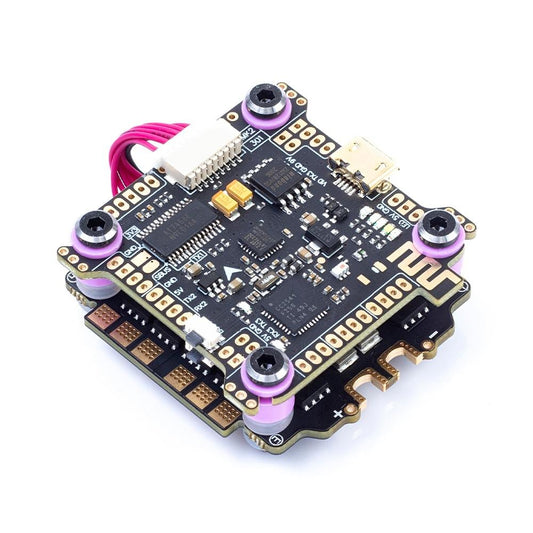

New Version !! 50A ESCFIRMWARE TARGET ： MAMBA F722 （LEGACY） Diagram Link From Help Centre LinkNote：Because STM32F722 Produce a lot of Heat， please leave at least 5mm gap at both sides of the FC with nothing covering And ensure good air circulation.FC SpecificationsMCU: 216MHz STM32F722RET6 32BITIMU: MPU6000Baro:...

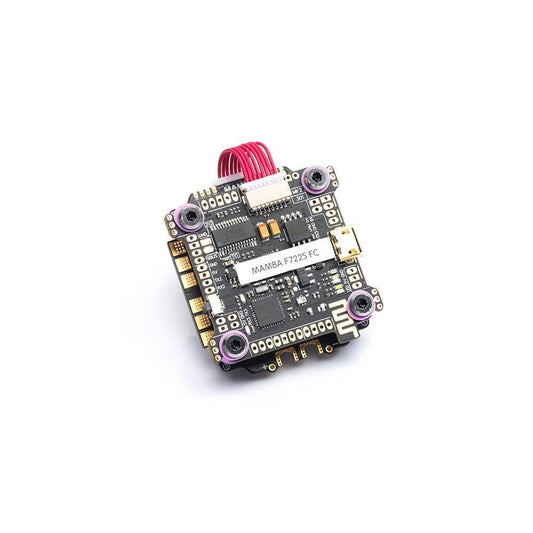

MAMBA F722S F60PRO 3-6S FLIGHT CONTROLLER STACKFIRMWARE TARGET ： MAMBA F722 （LEGACY）  Diagram Link From Help Centre LinkNote：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.FC SpecificationsMCU: 216MHz...

M22-GPS+BDS双模(For ROMA F5)size：22×20×6mmWeight：5.3gVCC：5VSupport Rate：DefaultData Level：TTL LevelData Protocol：NMEA-0183Concurrent GNSS：1Hz-10Hz, Default 1HzCold Start：26sHot Start：1sPosition Horizontal：2.0 mVelocity：0.1m/s 95% (SA off)

M8PLUS GPS+GLONASS(Fit ROMA F4LR)尺寸Size：18×18×6mmWeight：4.9gVCC：5VSupport Rate：DefaultData Level：TTL LevelData Protocol：NMEA-0183Concurrent GNSS：1Hz-10Hz, Default 1HzCold Start：26sHot Start：1sPosition Horizontal：2.0 MVelocity：0.1m/s 95% (SA off)

Great little bec to run your vtx separate of the Flight controller - or run the DJI airunit and caddx vista from a filtered power sourceWe often see damage to flight controller voltage regs when you draw too many amps through them.-  Eliminate the...

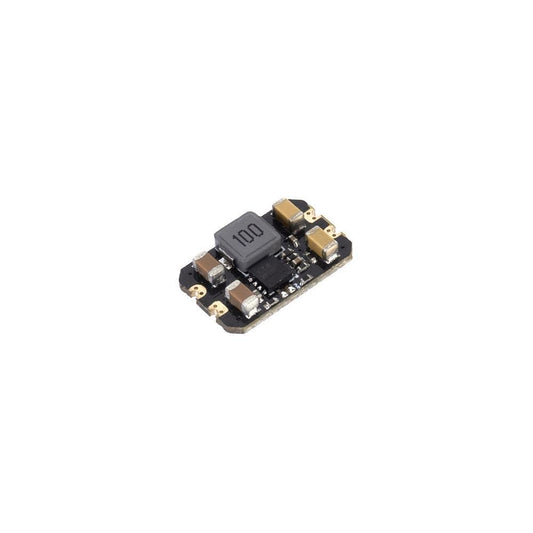

Description:Input: DC 6-23VOutput: 12VCont: 2AWeight: 1gSize: 11*17*4mmPackage included:1 x Mini BEC Board

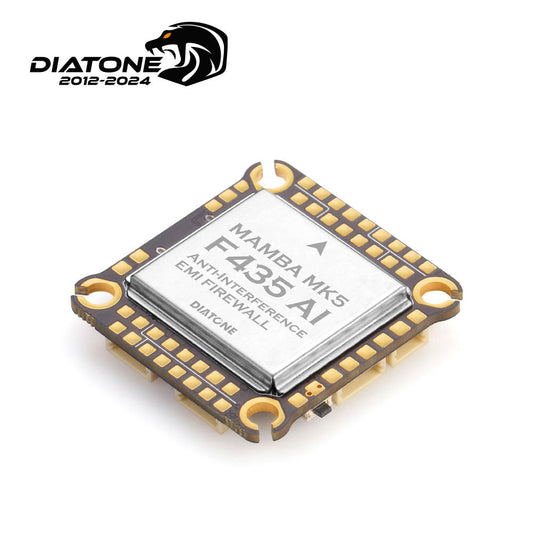

F435 AI Flight Controller 30.5MM/M3MCU: 288MHz AT32F435GYRO: ICM-42688-PTarget：MAMBA F435_2023AOSD: YesBlacbox: 16M Flash MemoryBarometer: SPL06Uarts: 5 SetI2C: YesRSSI: NoBuzzer Pad: YesCURR Pad: YesESC Signal: 8 SetESC Soft: Dshot300/600ESC Telemetry: YesPower Led: YesLED Controller:BF LEDAIR UNIT Port: YesCAM2 Port: YesReceiver Protection: YesTVS Protection: YesBEC:3.3V 0.5A& 5V 3A&...

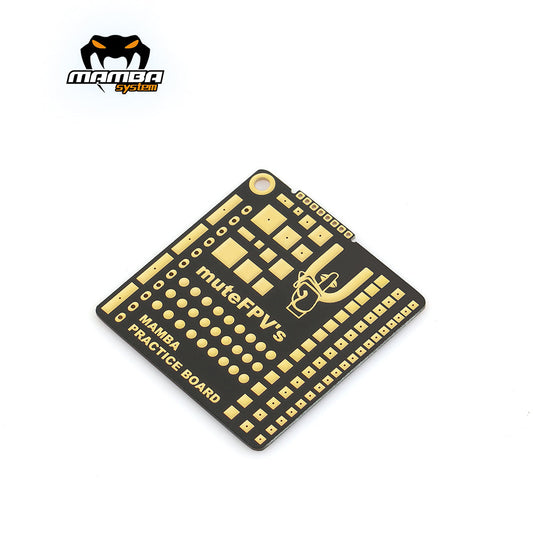

Mamba Soldering Practice Board For New pilots improving their Soldering level Size: 42.5mm×34.5mm×7mm Quantity list: Welding practice board V2×1 Soldering wire 30CM×1

Specification:Item Name: MAMBA Stack F405 MINI MK3.5 40A 6S 8BIT ESCFlight Controller:MAMAB Basic F405MINI MK3.5MCU: 168MHz STM32F405RGT6GYRO: MPU6000Barometer: YesOSD: YesBlackbox: 16M Flash MemoryUarts: 5 SetESC Soft: Dshot300/600Power Led: YesLED Controller: BF LEDRSSI: YesBuzz: YesInput: 2~6S Lipo (8.4~25.2V)TVS Protection: YesBEC:3.3V 0.5A& 5V 2.5AMOUNTING: 20mm, M2ESC:MAMBA F40_BLS MINIINPUT VOLTAGE:...

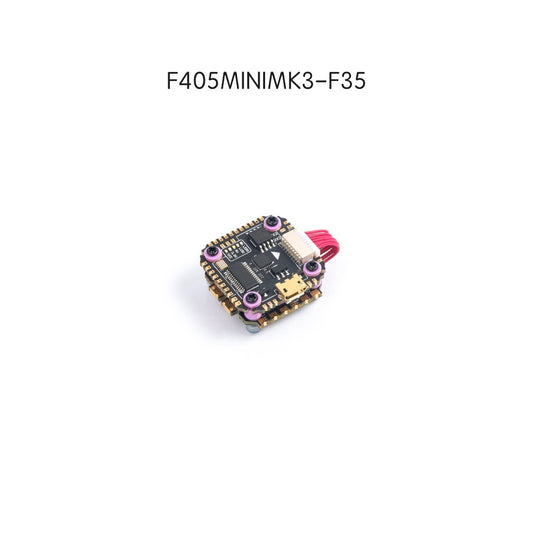

MAMBA F405US MK3 Mini Betaflight Flight Controller & F35 35A 4-6S DSHOT600 FPV Racing Brushless ESC FIRMWARE TARGET ： MAMBA F405USDiagram Link From Help Centre Link Specification: Mamba F405 Mini FC MK3Item name: F405 Mini MK3 Betaflight Flight ControllerInput: 3-6S LIPO (12.5- 25V)UARTS:6 PortsBEC: 5V 2A MCU: STM32F405 Gyro: MPU6000   ...

MAMBA Stack F722 MK3 50A 6S 32bit （NO WIFI）Diagram Link From Help Centre LinkFixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys avaiable） BEC short...

 Mamba Toka 2004 2900KV Racing MotorOverall Dimension:Φ26.2×15.3mmprop mounting shaft diameter:1.5mmInstallation hole position:12×12mm，M2Prop: 3.5inch~5inch                                                                 Bearing：7*3*3Shaft Diameter:3.0mmLead Wire Size：24AWG×150mmslots/poles:12N14PMagnet Wire: 240℃ Enameled WireStator Diamter：20mmStator Height:4mmRated Voltage:3~4S (12.6V~16.8V)                                             Peak Current: 31.63Aldle Current：10V/0.9~1.5A                                                                Maximum Power: 418.1WInternal Resistance：90mΩWeight: 16.3g

Mamba Toothpick F411 AIO Flight ControllerThe new Mamba Toothpick F411 AIO Flight Controller by Diatone is specifically customized for your toothpick builds!Specifications: STM32F411 Input voltage 2-4S Lipo Gyro: MPU6000 2x UART ports OSD inbuilt BEC 5V 1.5 A Size:28.5*28.5mm Mounting holes: 25.5*25.5mm M2 Weight: 5.7...

This is a must if you have the dji air unit in a taycan - plug it in and have access to the air unit now at a convenient angle.upgrading the air unit will be so much easier.

Manual :1.Mamba TX500 VTX Manual2.Mamba MSR SBUS ManualMAMBA MSR D16 ACCST Receiver（FCC）Working Voltage:3.5- 10VWorking Current: 70mA /5VChannel:16CH(1~16CH: SBUS,1~8CH:CPPM)Size: 24×11.7×4.4mmAntenna Connector: IPEX4Protocol： ACCST D16/（ACCESS needs to upgradethe corresponding protocol）Product Size:24×11.7×4.4mm M2（20mm×2）Weight:1.6gMAMBA TX500 Video TransmitterWorking Voltage:4.5- 5.5VWorking Current: 380mA (5V/500mw)Working Temperature: 90 ℃Video Input Impedance:50ΩSize: 24×11.7×5.5mmAntenna...

MMCX/left-handed/black/length 130mmparameter:Frequency range (MHz): 5500-6000Polarization method Polarization: LHCPGain (dBi): 2.5Voltage standing wave ratio VSWR (5800MHZ): ≤1.5Input connector type: MMCXRadome material: ABSRadome color: blackOperating temperature (°c): -40～60Rated Wind Velocity (m/s): 60"

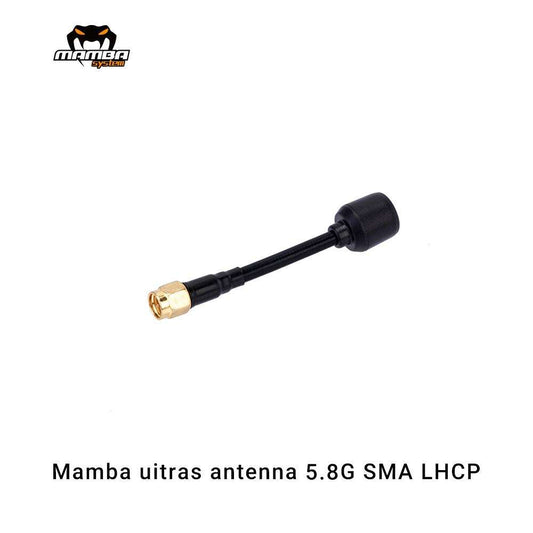

DescriptionParametre：Frequency range（MHz）：5500-6000Polarization：LHCPGain（dBi）：2.5VSWR（5800MHZ）：≤1.5Input connector type：SMARadome material: ABSRadome color: BLACKOperating temperature（°c）:-40～60Rated Wind Velocity（m/s）:60

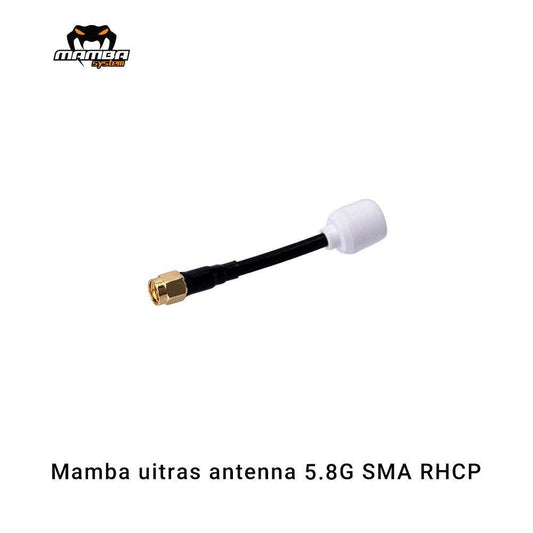

DescriptionParametre：Frequency range（MHz）：5500-6000Polarization：RHCPGain（dBi）：2.5VSWR（5800MHZ）：≤1.5Input connector type：SMARadome material: ABSRadome color: WhiteOperating temperature（°c）:-40～60Rated Wind Velocity（m/s）:60
